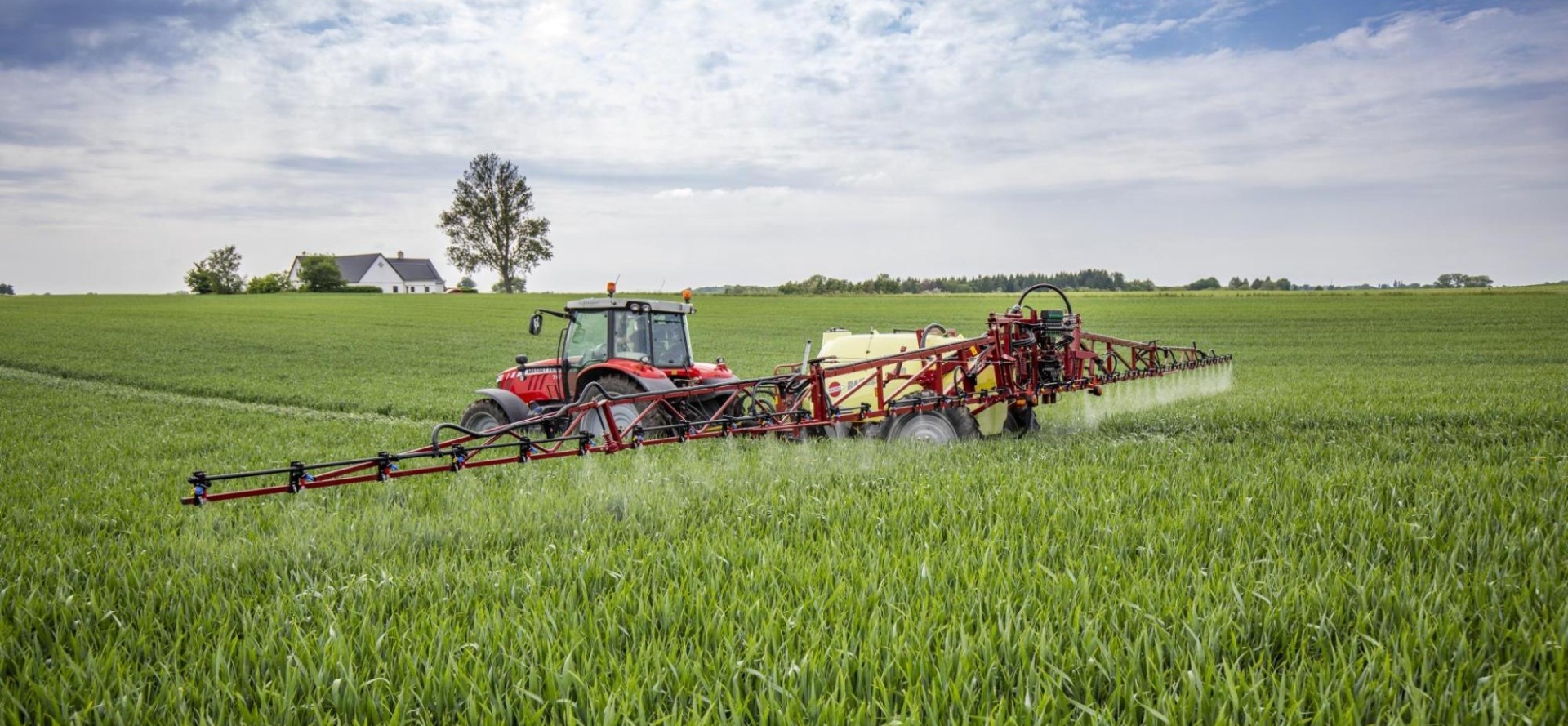

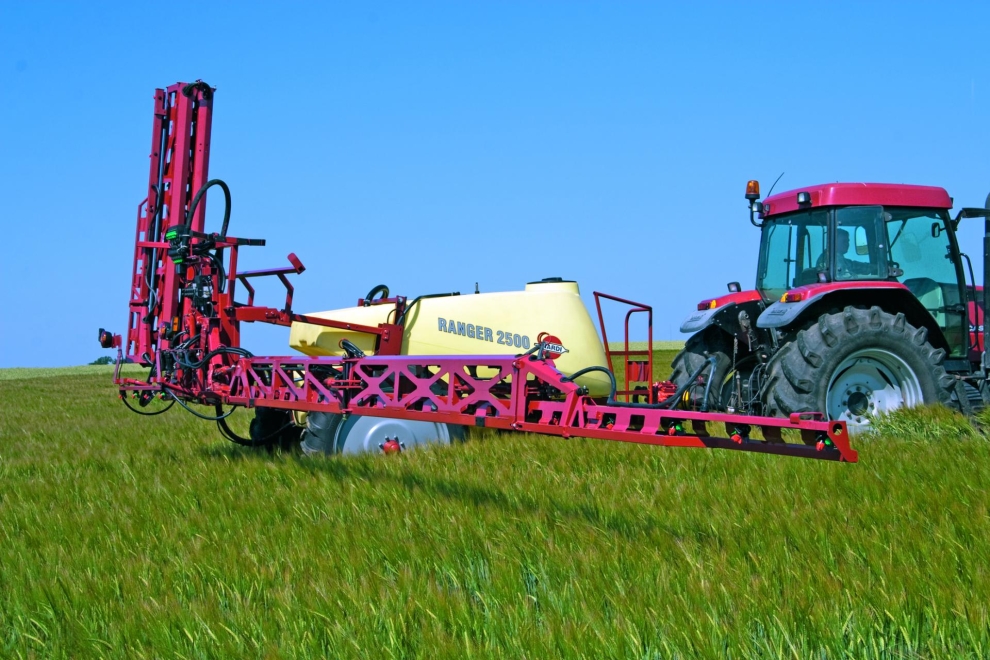

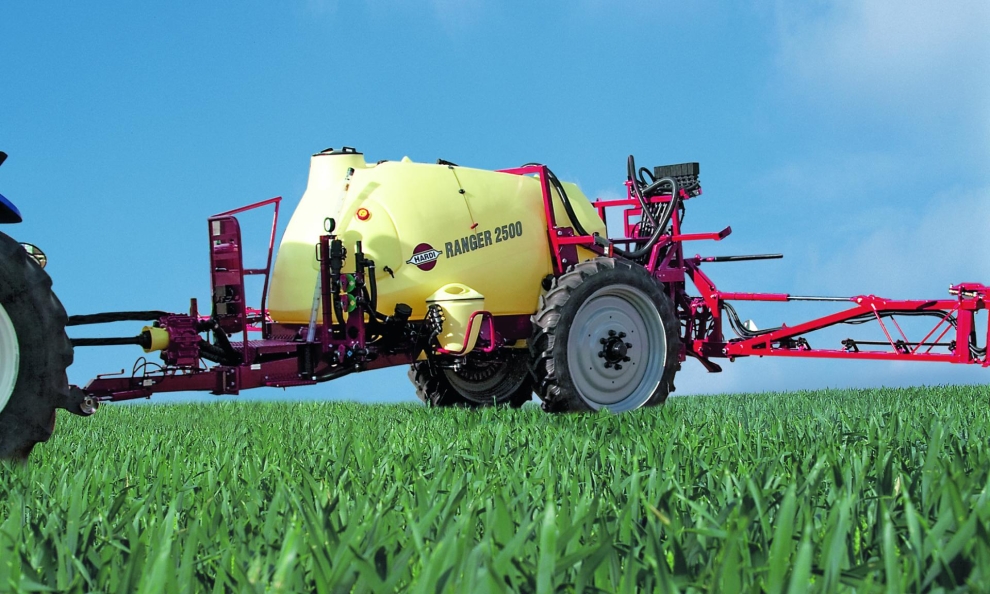

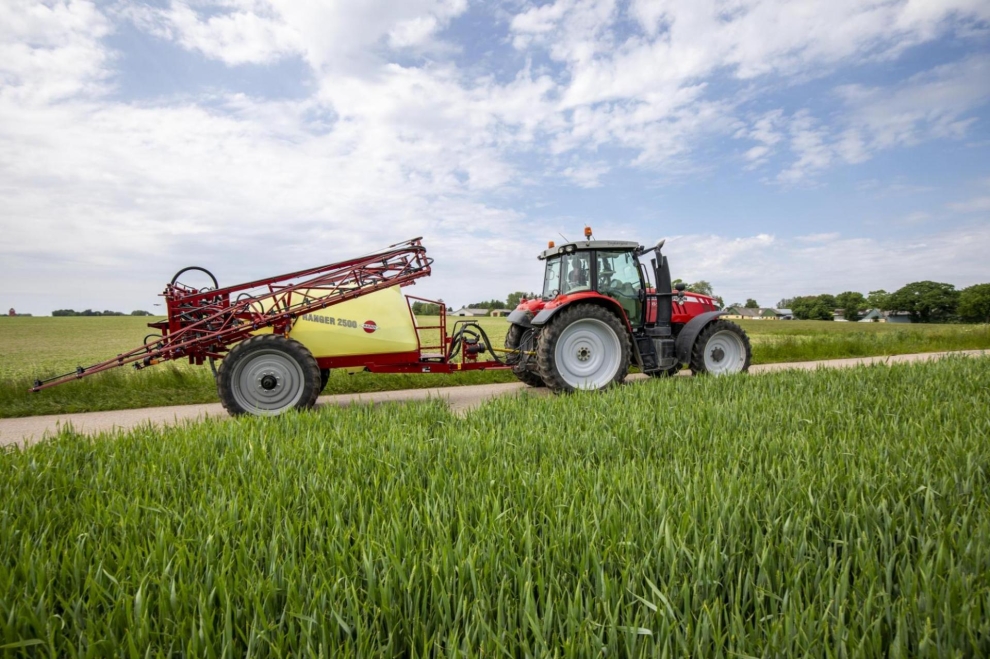

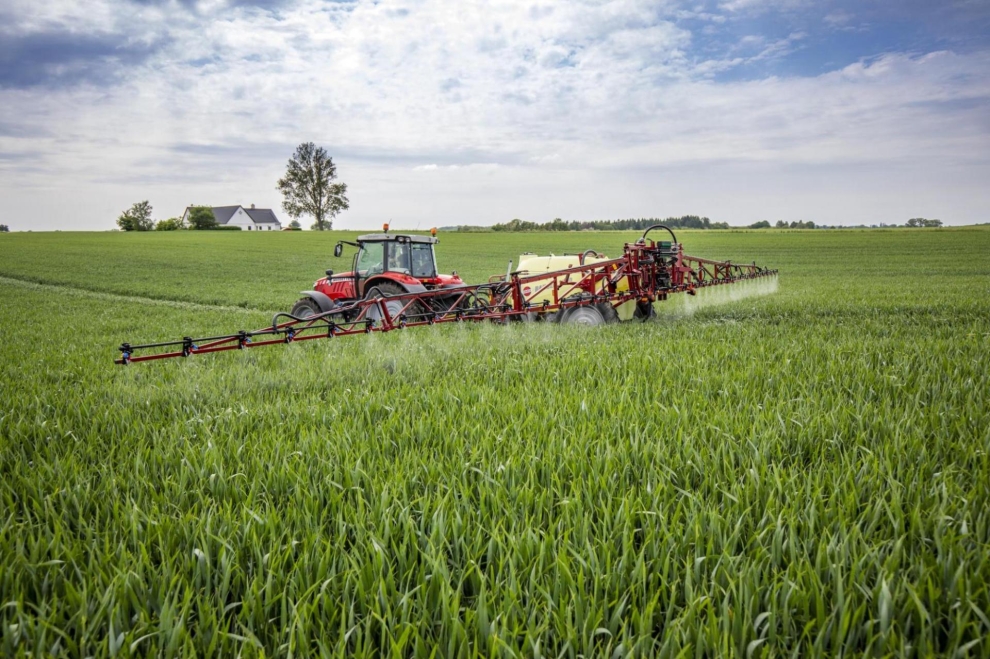

Trailed sprayer Hardi RANGER
Trailed sprayers with tank capacity 2500 liters
Description
Being the smallest in the large HARDI trailer range, the kinship does not fail. The RANGER is designed to meet the request for a simple and reliable trailer.
Intelligent tank and frame design ensure stability and strength. Unique components guarantee best performance and ultimate durability.
This goal is reached and proven by successful world-wide sales since the introduction in 2006. RANGER has been the top-selling trailed sprayer in Bulgaria for the last three years.
Advantages
Features of Hardi Ranger
- Electronic control panel - HC5500
- Adjustable Axle : 1.5 - 2.0 m or 1.8 - 2.25 m
- Lockable storage for chemicals
- Rapid filling hose and filter
- Filters of each section
- Self-cleaning filter
- Self-Steer & Slope correction
- HARDI diaphragm pump
- Polyethylene tank with 70 cm clearance
- 250 - liter tank for rinsing
- Adjustable axle tires in increments of 150 to 200 cm

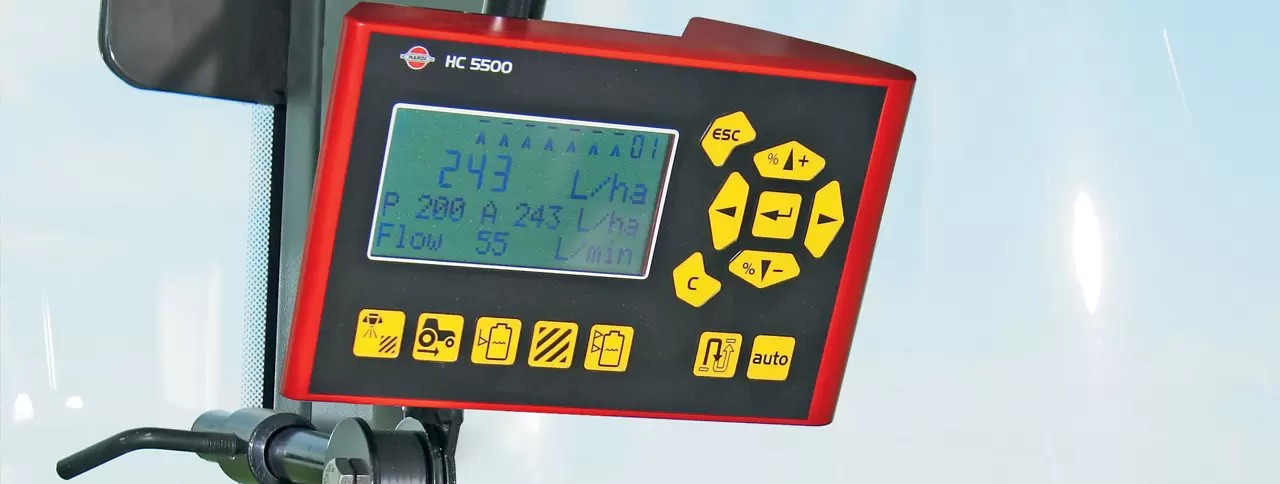

HC 5500 Controller
The HC 5500 is a powerful computer making the spray features easier and safer to use and easily supplies more information when needed. It is the obvious choice where features like IntelliTrack and advanced farming tools are desired. The operator is instantly informed of the operation status and warned if vital parameters like pressure, speed, etc. are incorrect.
It is advanced farming, ready with up to 98 register and connection possibilities to a site-specific application map or a remote sensor. Various optional extras like SprayRover, TankGauge or 12-V printer are available.
EAGLE 45 - 66 ft. booms
EAGLE booms feature a rugged two-dimensional structure and a coil spring self-stabilizing trapeze boom suspension. This combination provides for many years of trouble-free use even in the toughest field conditions.
A non-directional spring-loaded break-away system protects the boom from damage. EAGLE boom is the solution if robustness and high driving speed are required.

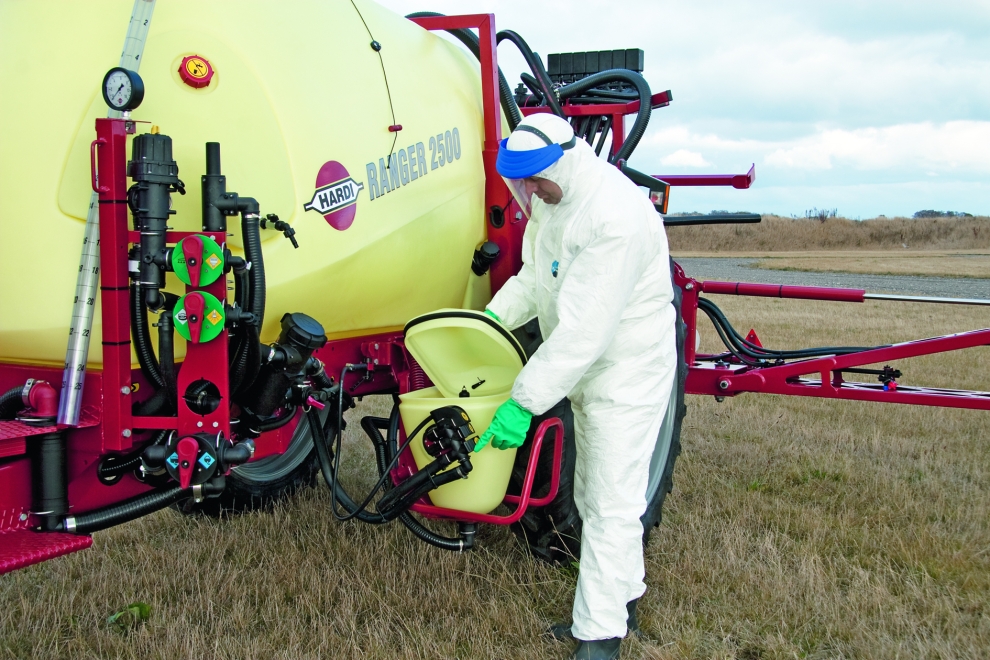

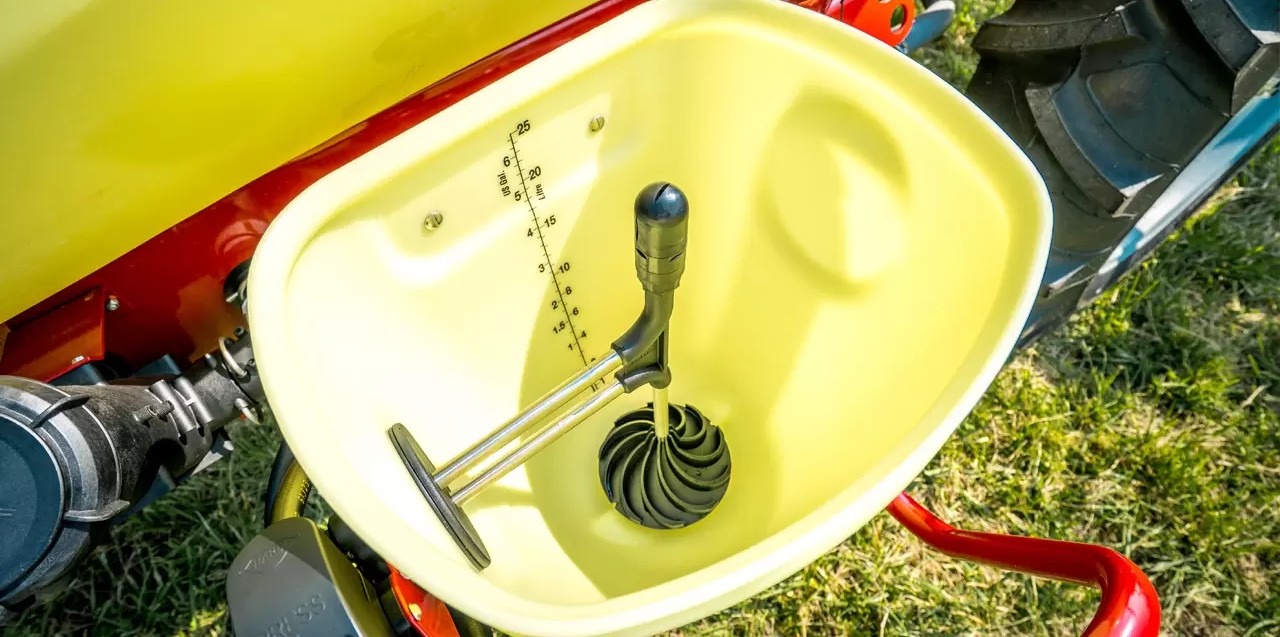

Turbofiller
TurboFiller is a high capacity induction hopper which makes the filling of chemicals fast and easy. The unique TurboDeflector creates a powerful liquid circulation in the hopper and mixes all types of chemicals quickly and safely

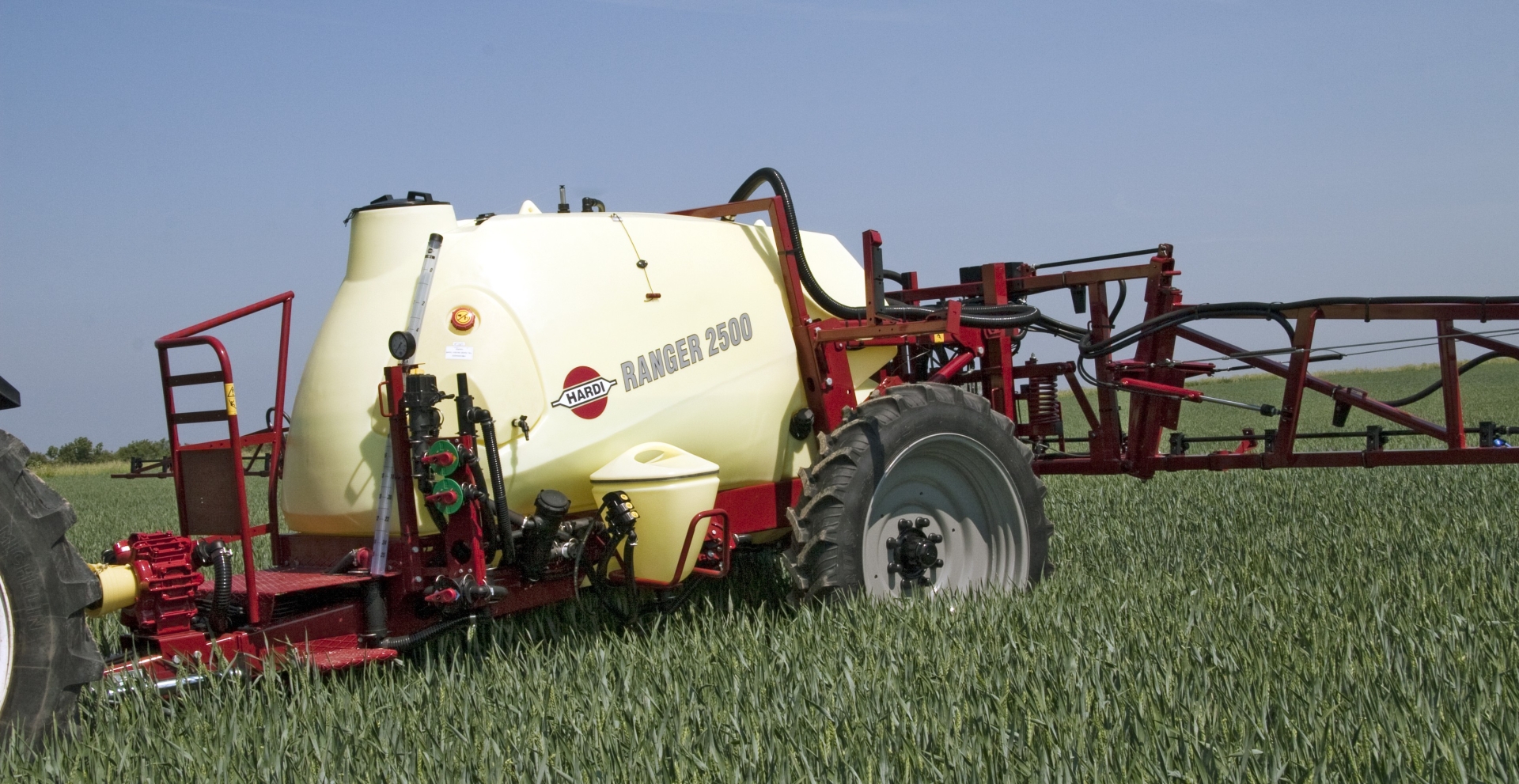

5 years warranty of the tank
Hardi Ranger sprayers are equipped with durable polyethylene tanks with a capacity of 2,500 liters and a 5-year warranty, made from unique UV-protected polymers and without transverse ribs, ensuring minimal residual liquid retention and optimal stability.

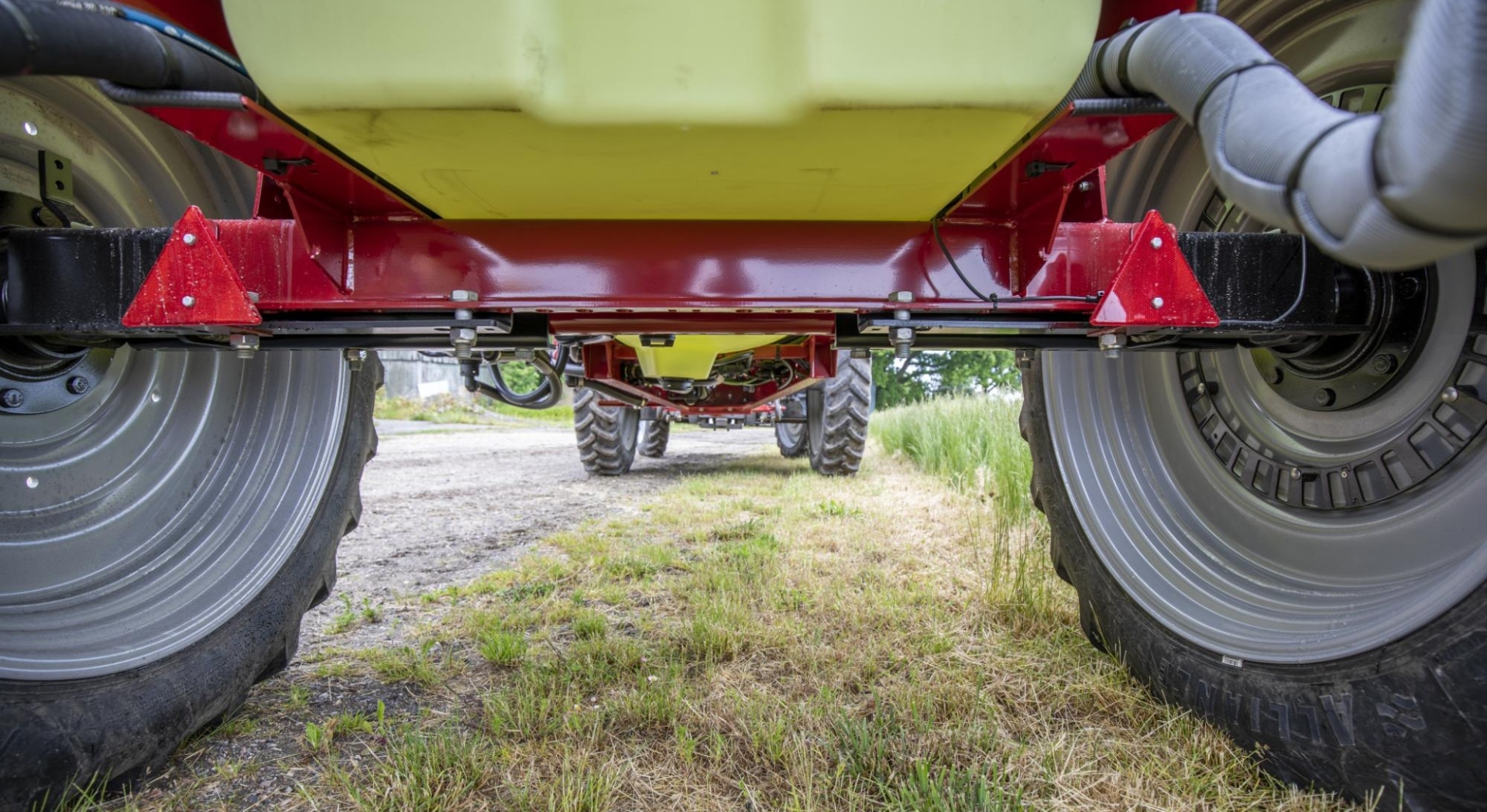

Large clearance
The chassis is designed to minimize damage to crops. Ground clearance under the axle is 70 cm. The track width is adjustable from 1.50 to 2.00 m.

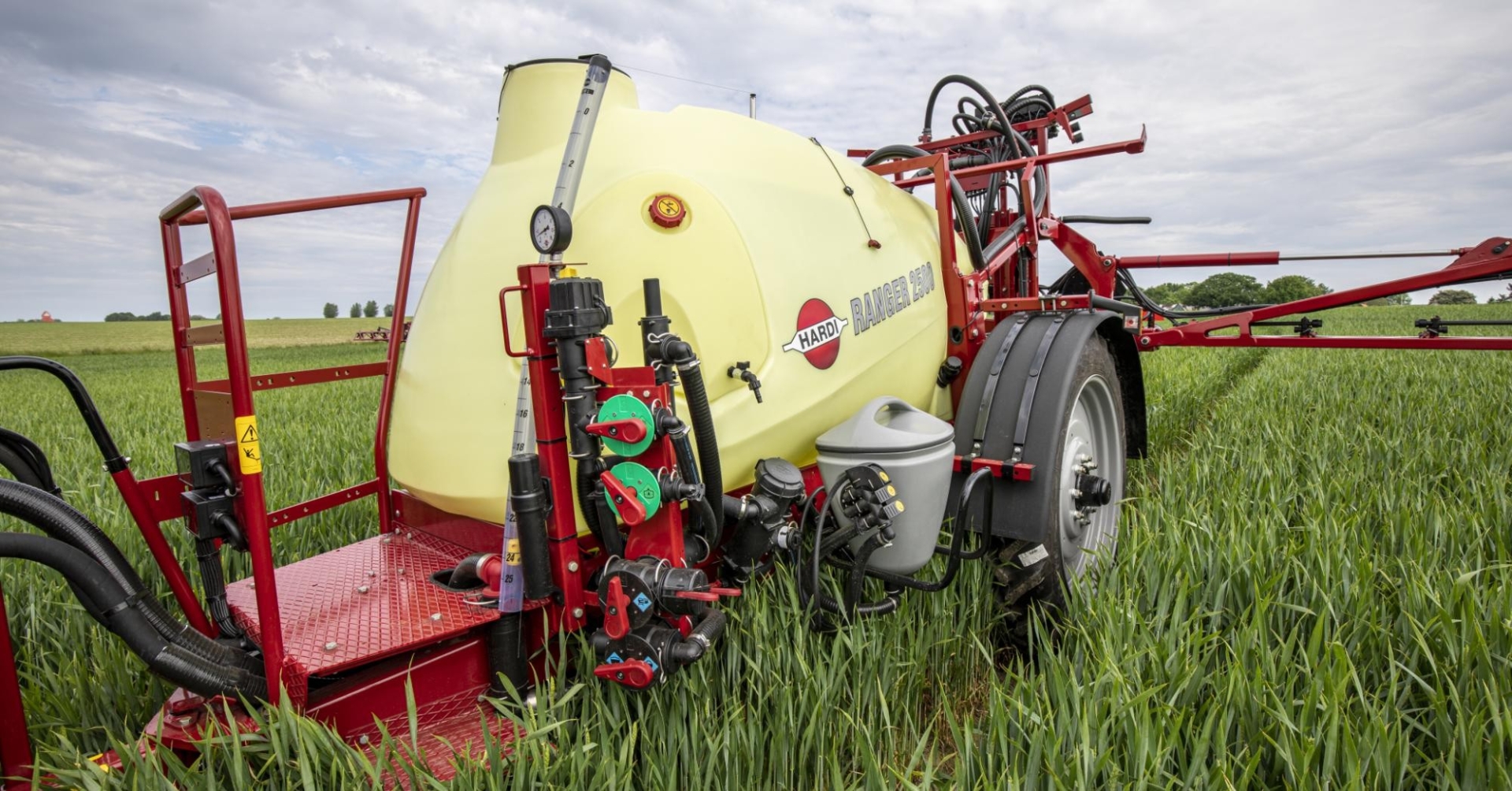

Comfortable working zone
All sprayer control functions are conveniently grouped in one place within the working area. The manifold is designed for easy use with various options such as a rinse tank, cleaning nozzle, and turbo filler.
Technical parameters
Tank: 550 gal. designed for optimal stability and the lowest residue. Sturdy 3/8" thick main tank.
2" Nurse Tank QuickFill with suction filter (optional on the Model 550)
Cyclone self-cleaning filter (Optional on RANGER 550)

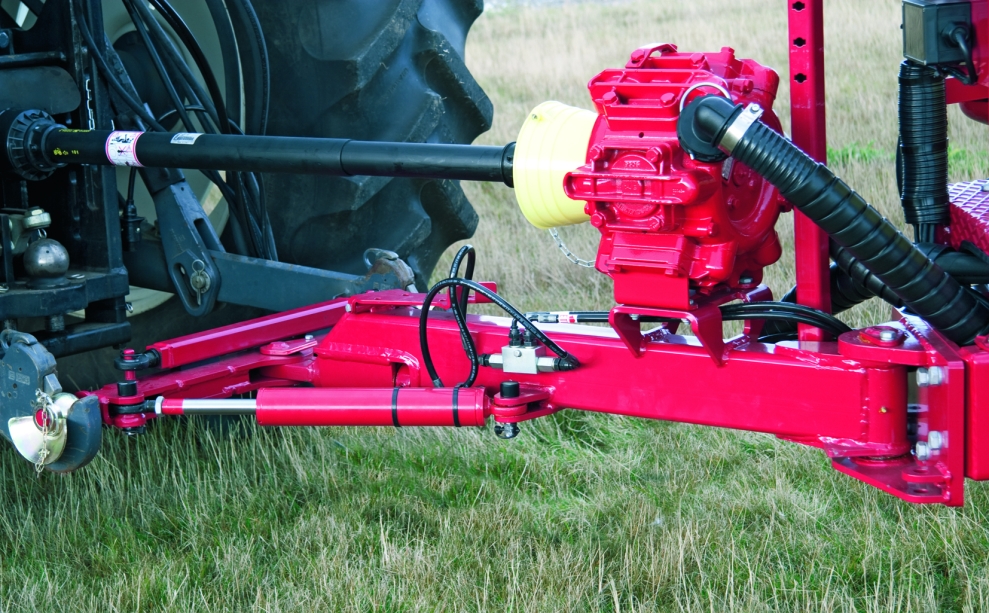

Pump: The HARDI Diaphragm pump is a reliable, high capacity and easy to service with bottom suction from deep sump and is standard on the Ranger 2000. Options for the Ranger 550 are the Ace 206 hydraulic centrifugal or the Ace 150 PTO belt drive centrifugal pump.
Top Operated tank drain
High Visibility dry sight gauge (Model 550 equipped with a wet sight gauge)
Work platform w/foot step
Controller: HC 5500 (Optional on RANGER 550 & 2000)
5-gallon clean water dispenser
EAGLE booms: Simple and strong booms with hydraulic lift and fold. Single 20" spaced nozzle bodies w/ISO Mini Drift (Air Inclusion) nozzles
