Blade cultivator TAIFUN
Universal fine cultivator with working width from 2.50 to 7.00 m
Description
The TAIFUN blade cultivator is a versatile all-rounder. With its spacious frame design and tool options, it is a classic all-round machine for seedbed preparation, flat stubble cultivation or the incorporation of slurry, catch crops, etc.
Advantages

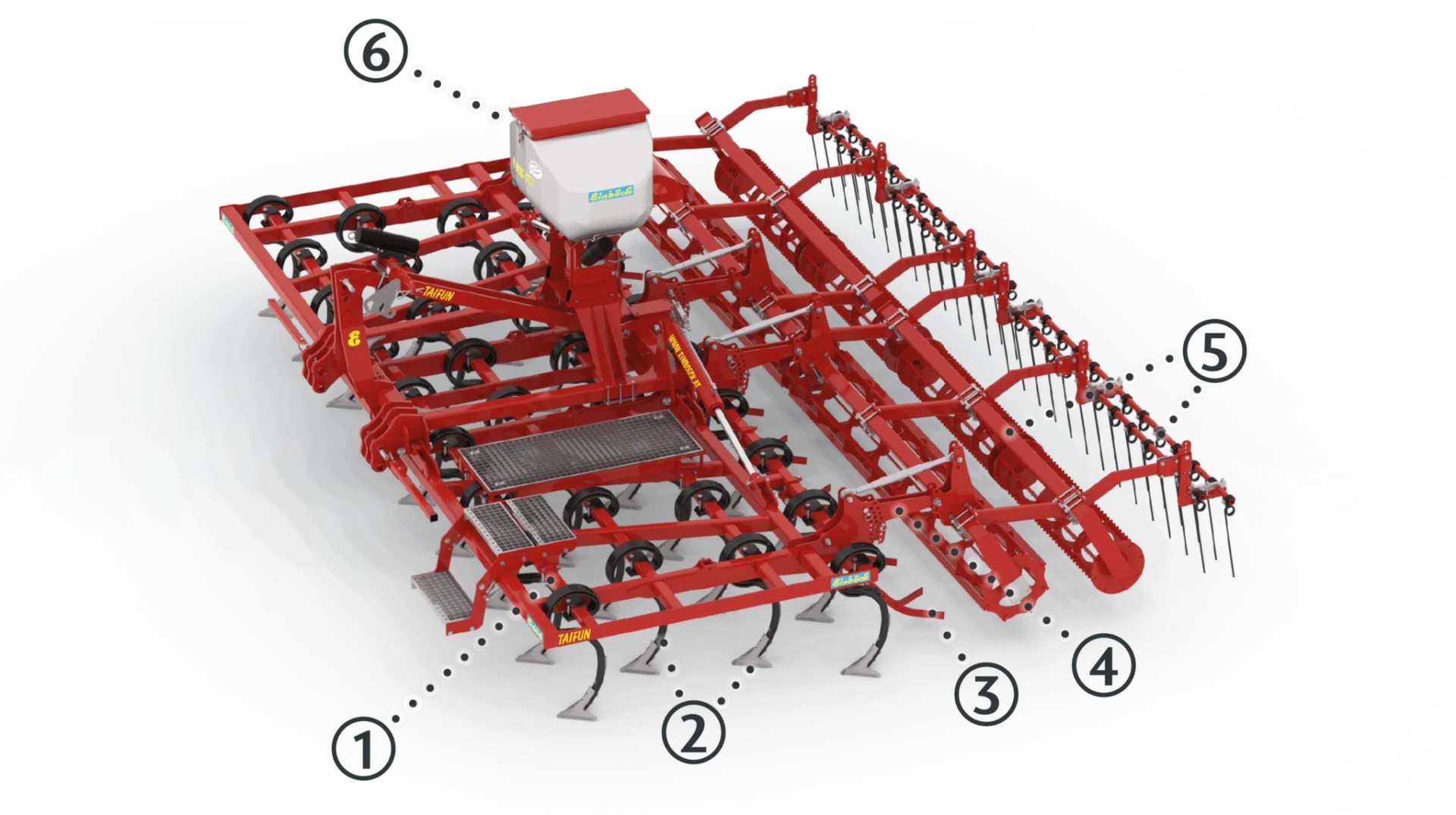

The concept of Taifun
- 4-beam frame construction; 15 cm / 5.9” line spacing: 60 cm / 23.6” tine distance
- Various tine sizes with narrow, duckfoot or carbide metal sweeps
- Double drag tines with parking position
- Simple mechanical or hydraulic working depth adjustment
- Large selection of rear rollers and trailed weeder tines
- Seeding box to seed cover crops

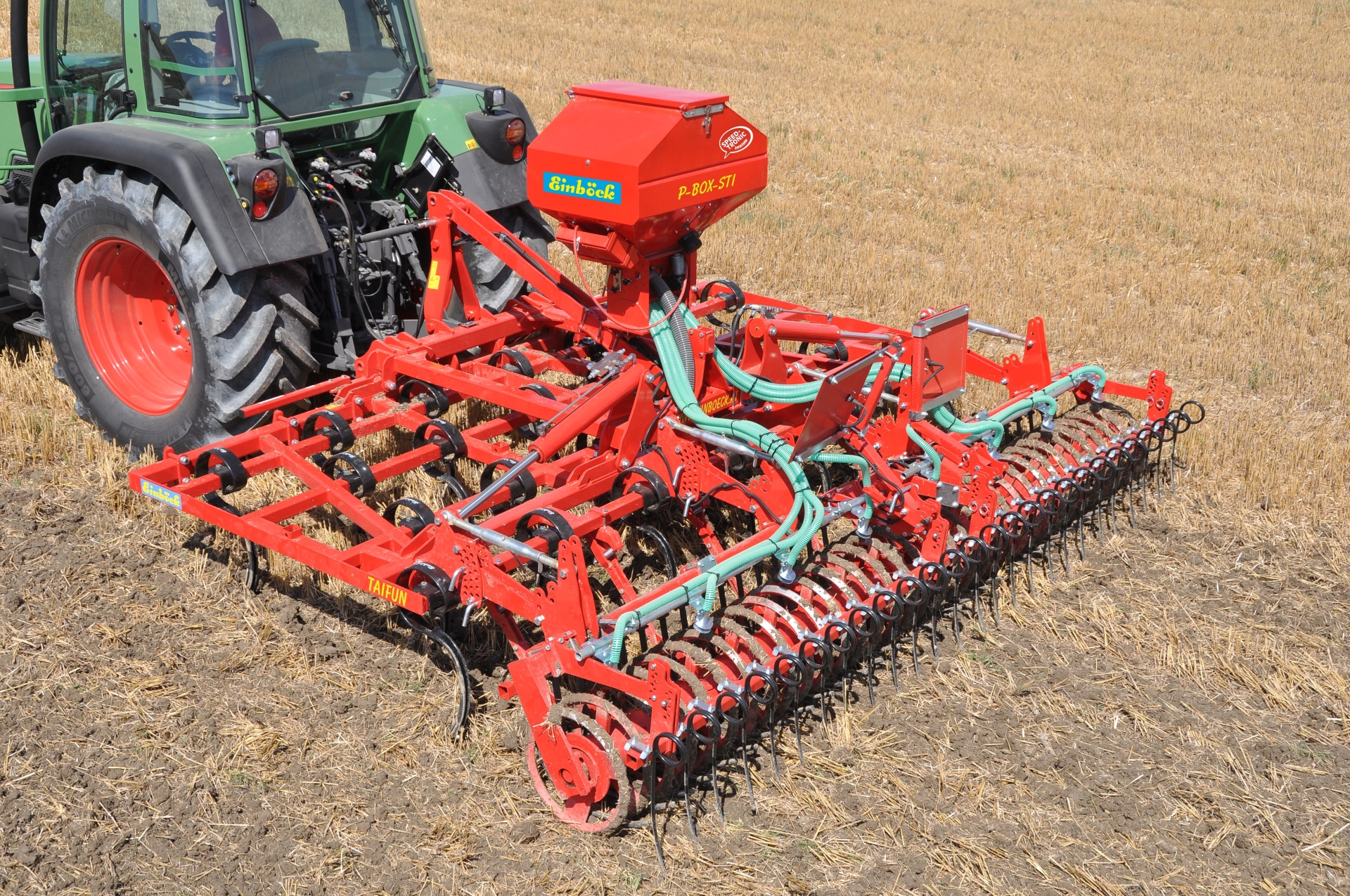

A real "all-rounder" - the TAIFUN blade cultivator
- Incorporation of catch crops: Full-surface, clean and flat undercutting of winter-hard or non winter-hard catch crops (cover crops, intercrops; greenings) as well as perfect uprooting.
- Seedbed preparation: A perfect structure of coarse and fine soil ensures ideal conditions for germination, as well as a safe and uniform emergence.
- Stubble cultivation: An ultra-flat stubble cultivation and scalping of the whole surface, stimulates lost crop seeds to germinate.
- Seeding of catch crops: With the second cultivation, catch crops can be sown simultaneously using the pneumatic seeding box P-BOX.
- Regulation of deep rooting and seed weeds – “glyphosate replacement”.
- Incorporation of slurry, “fake” seedbed, and much more.

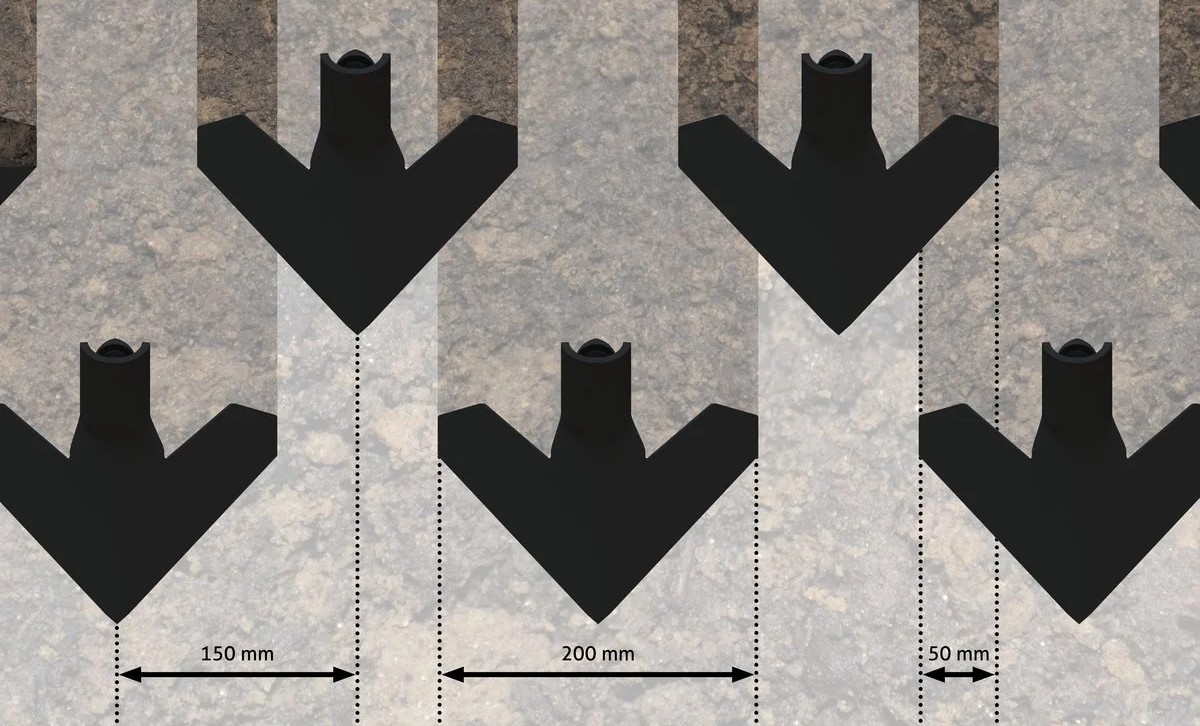

Overlapping duckfoot sweeps = across the whole working width
If a full width cutting of the soil is requested, optionally available duckfoot sweeps provide the necessary overlap at a line spacing of 15 cm / 5.90″. For example, the 200 mm / 7.87″ sweeps guarantee an overlap of 50 mm / 1.97″ (33.3 %) (see graphic). There are also 240 mm / 9.45″ duckfoot sweeps with an overlap of 90 mm / 3.54″ available. Due to this generous overlap the whole field is cultivated during shallow operation and emerged weeds are mechanically regulated.

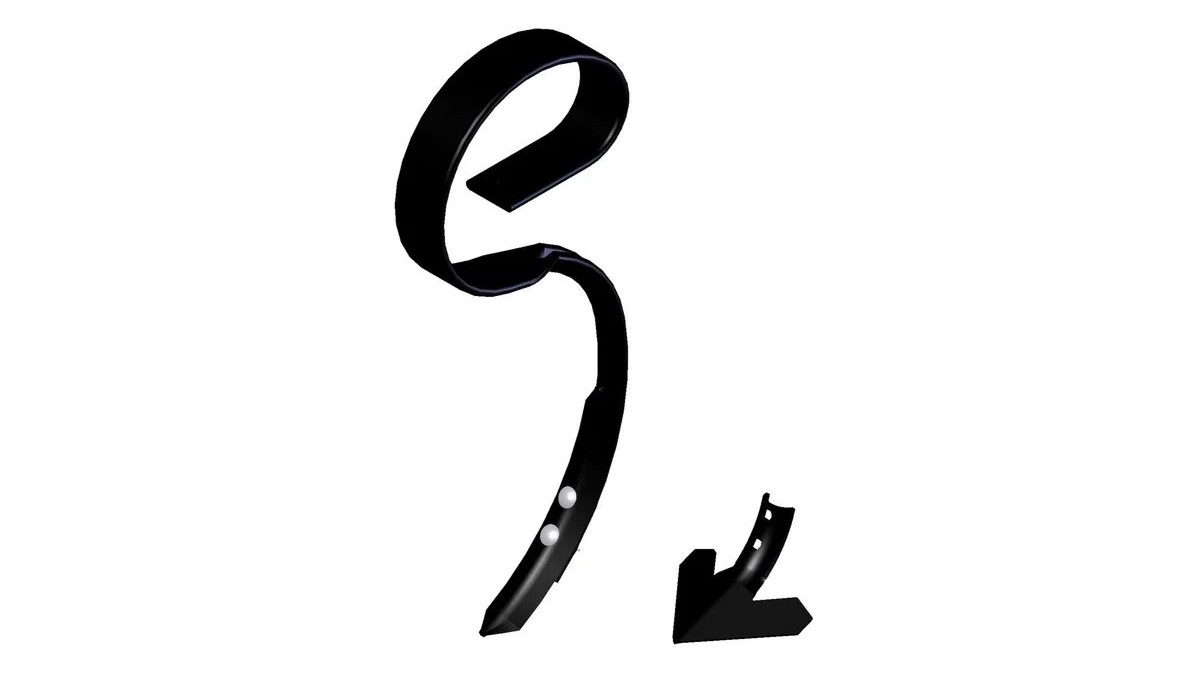

Spring loaded tines Herkules 70x12 мм, frame clearance 580 mm
The optional spring tine HERKULES is made of 70×12 mm / 2.76×0.47″ material, at a frame clearance of 580 mm / 22.83″. The tine is recommended for heavy, but also stony soils, for seedbed preparation. For this operation a use of duckfoot sweeps is also possible. The sweep is mounted with two bolts, this is a big advantage in stony and heavy conditions.

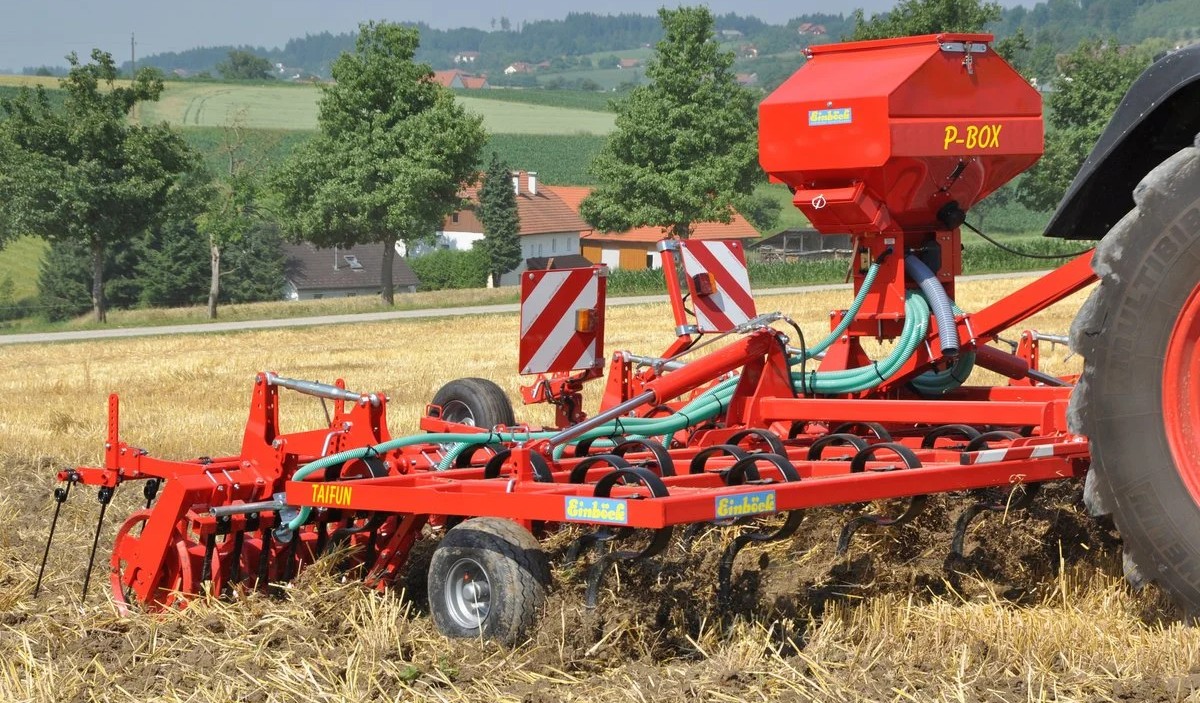

Big frame clearance
The big frame clearance (up to 580 mm / 22.83″) guarantees clog free working and a perfect work result even in a big amount of organic matter.

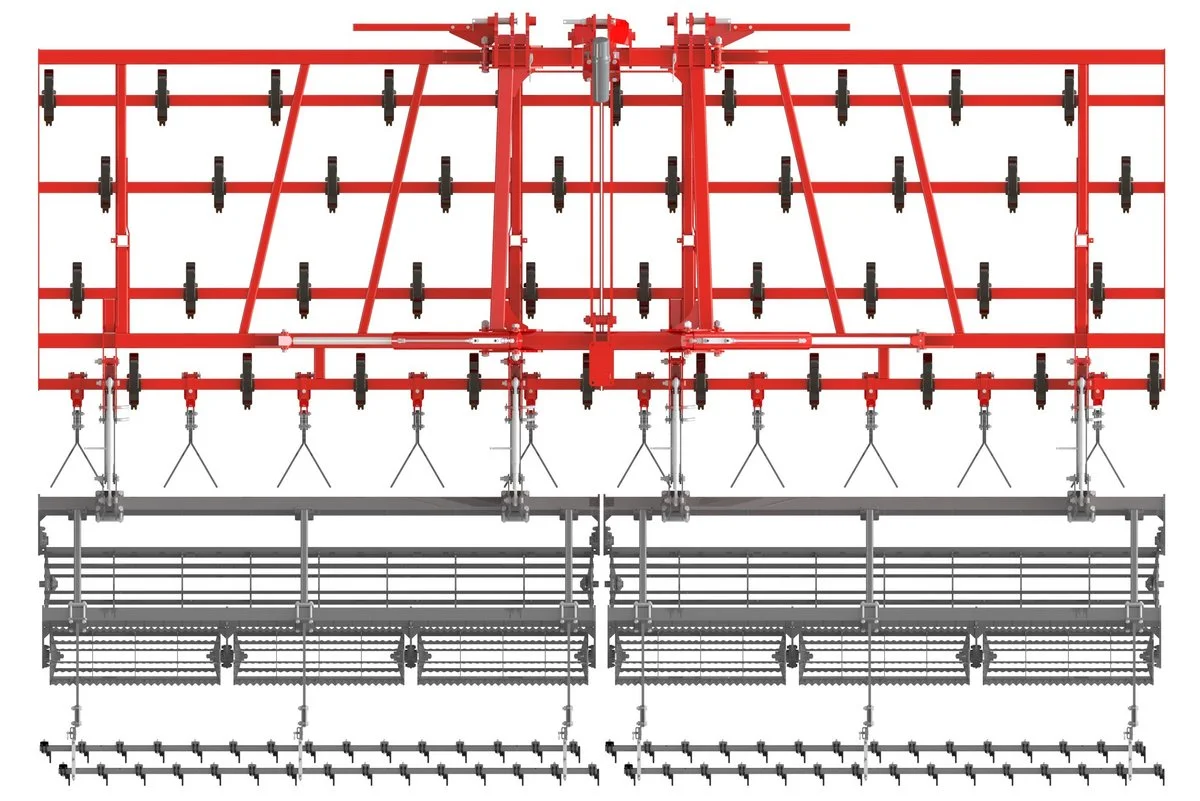

100 % even tine distribution
An even tine distribution ensures work without clogging, a cutting of the full surface and a smooth tensile behaviour.

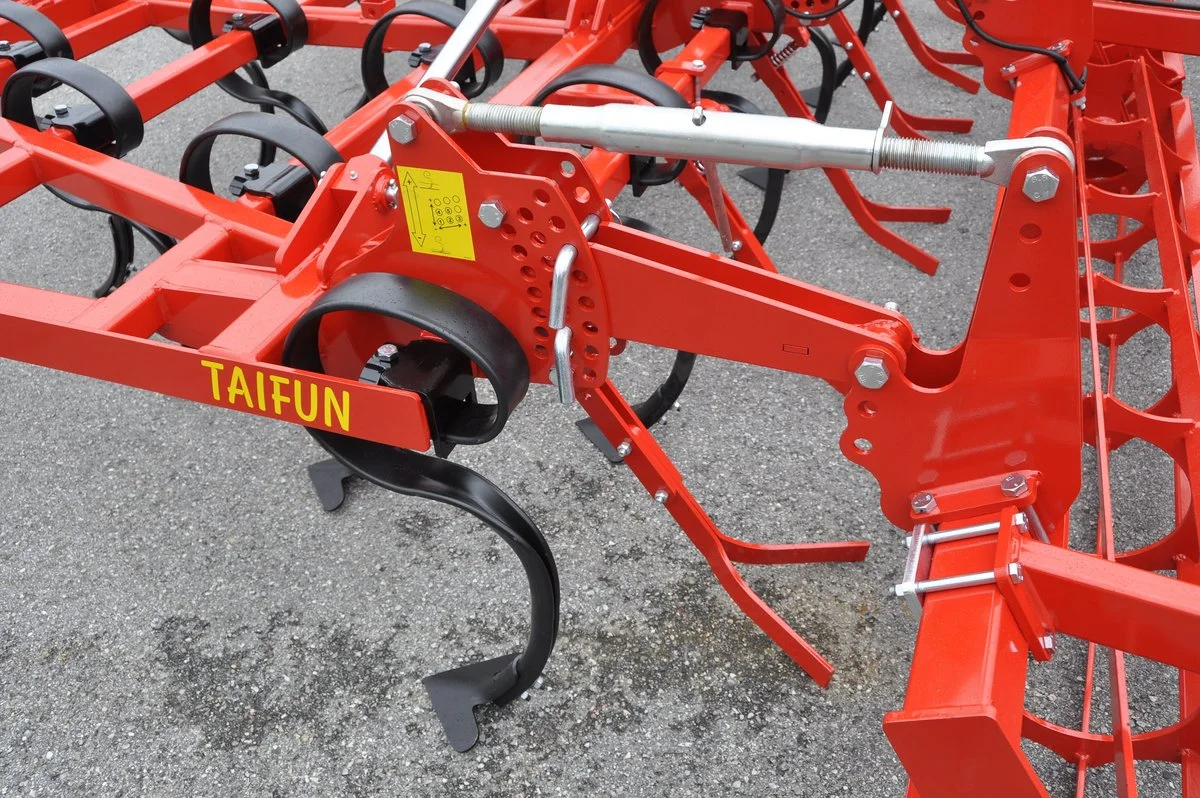

Working depth precisely adjustable
The working depth of the blade cultivator can be adjusted via bread board on the parallel guided trailed weeder tines. Additionaly the working pressure of each roller or the angle of the trailed weeder tines to the soil can be adjusted with a spindle. All the pressure is on the rear roller. The machine works very calmly because all the weight of the cultivator is on the rear roller unit.
Option: Hydraulic working depth adjustment

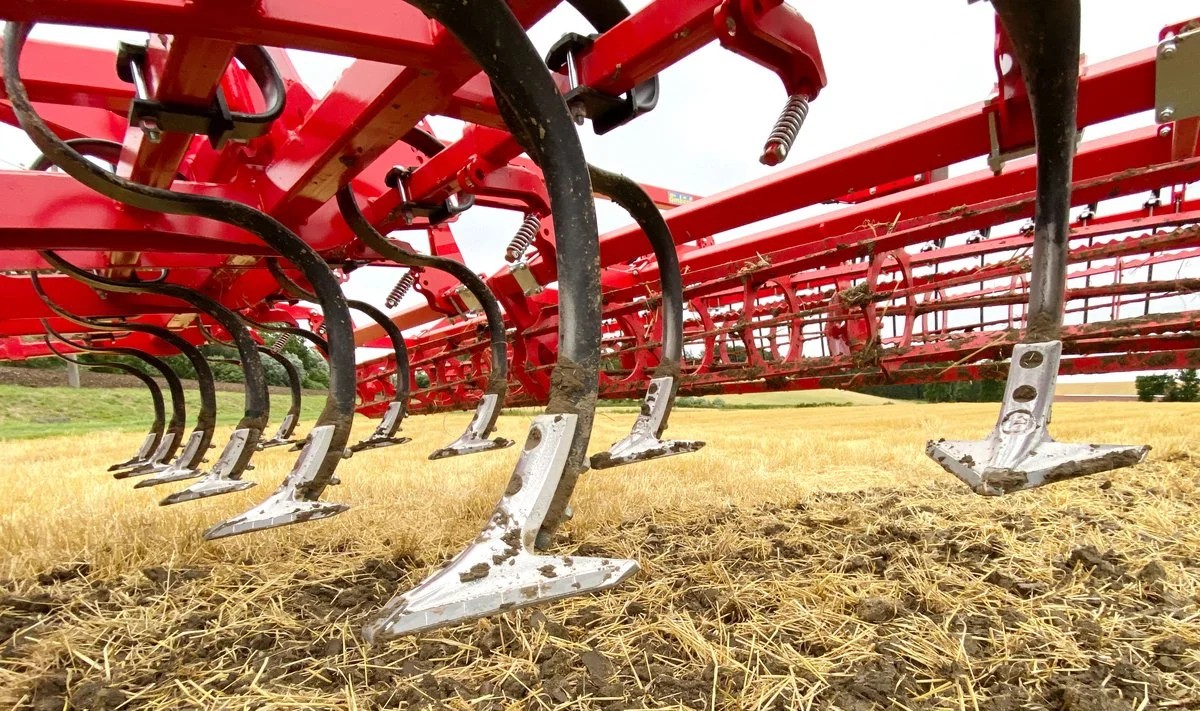

Sweeps made of carbide metal for Herkules tines
The sweeps made of carbide metal for Herkules tines are optionally available as duckfoot sweeps 220 mm / 8.66” and as narrow shares 53 mm / 2.09”. The application of carbide metal plates and the special geometry of these sweeps increase the operating time and reduce wear.

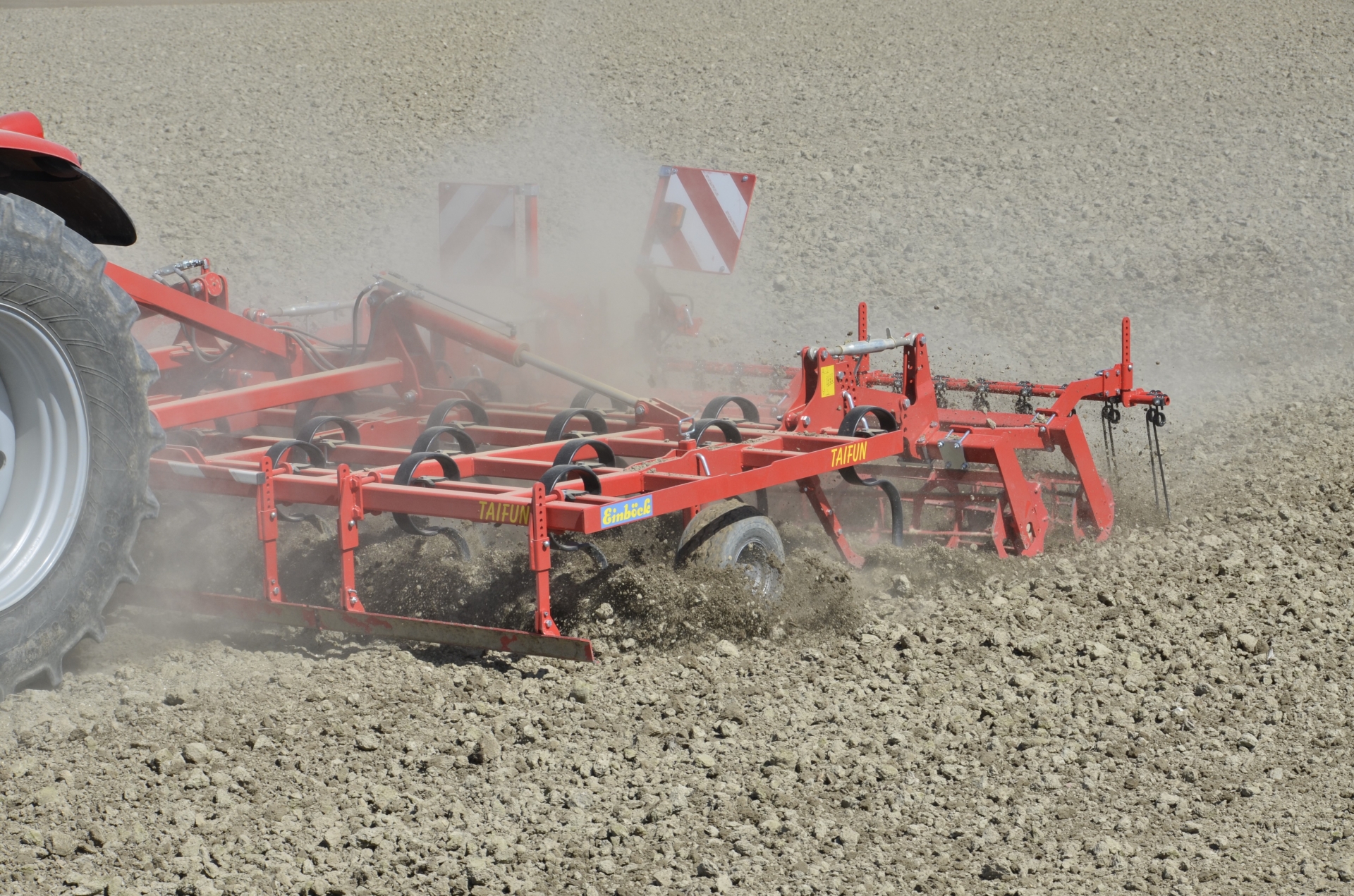

Levelling plate „dragging“ or „on grip“
The levelling plate is clamped on the front of the frame and can be adjusted in height through bolts. The levelling plate crushes clods, levels the soil and covers the tractor track and can be adjusted “dragging” or “on grip”. The operation of the working tools is extremely smooth and the working depth is maintained exactly. In spring the levelling plate is especially recommended for seedbed preparation.

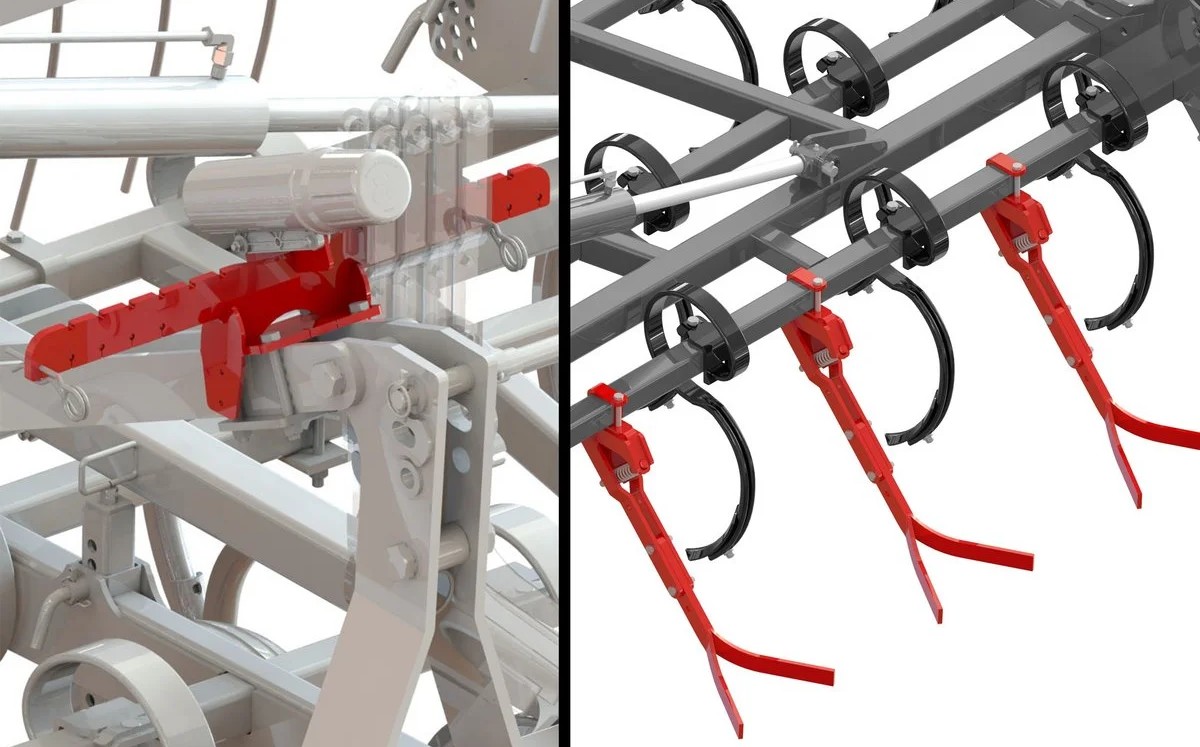

Tool-free adjustable and spring-mounted double drag tines (standard equipment)
Double drag tines guarantee an even levelling between the last row of tines and the rear rollers or weeder tines. This is an advantage because the rear roller can evenly recompact the soil contact over the entire working width. They can be dismounted without tools and kept safe directly on the frame.

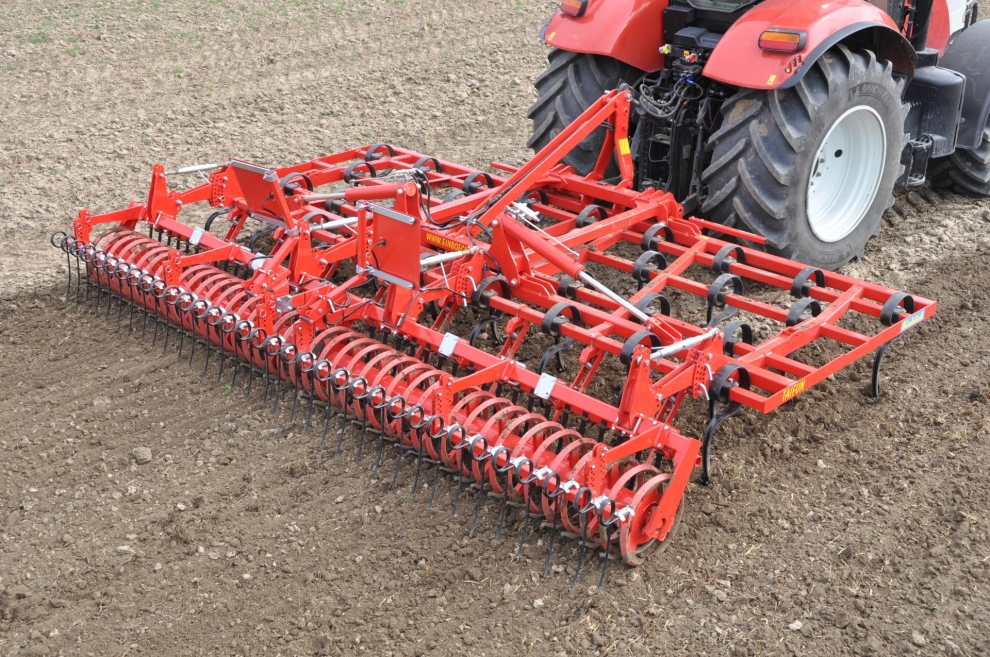

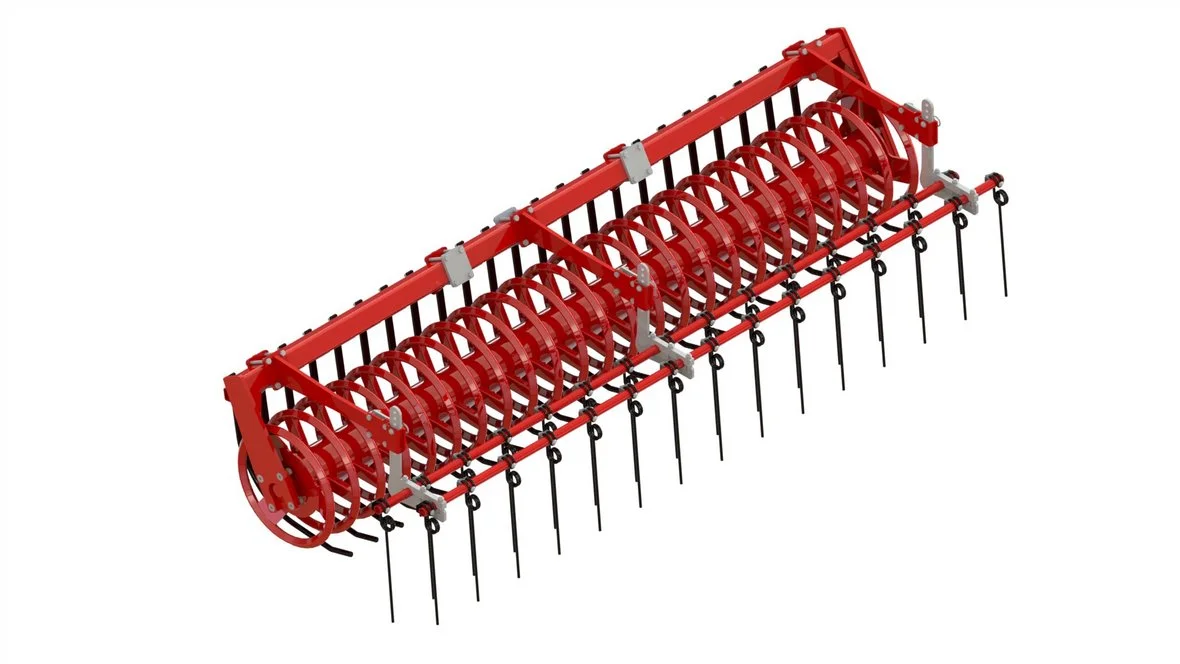

RP47: Ring packer roller ø 470 mm with spring stripper & following weeder tines 2 rows ø 10 mm
The wedge-shaped reconsolidation roller compacts the soil in deeper areas and closes all cavities while the topsoil stays loose and is finely crumbled. Its high load capacity makes it suitable for all different types of soil. Spring scrapers between the rings help to avoid blockage.

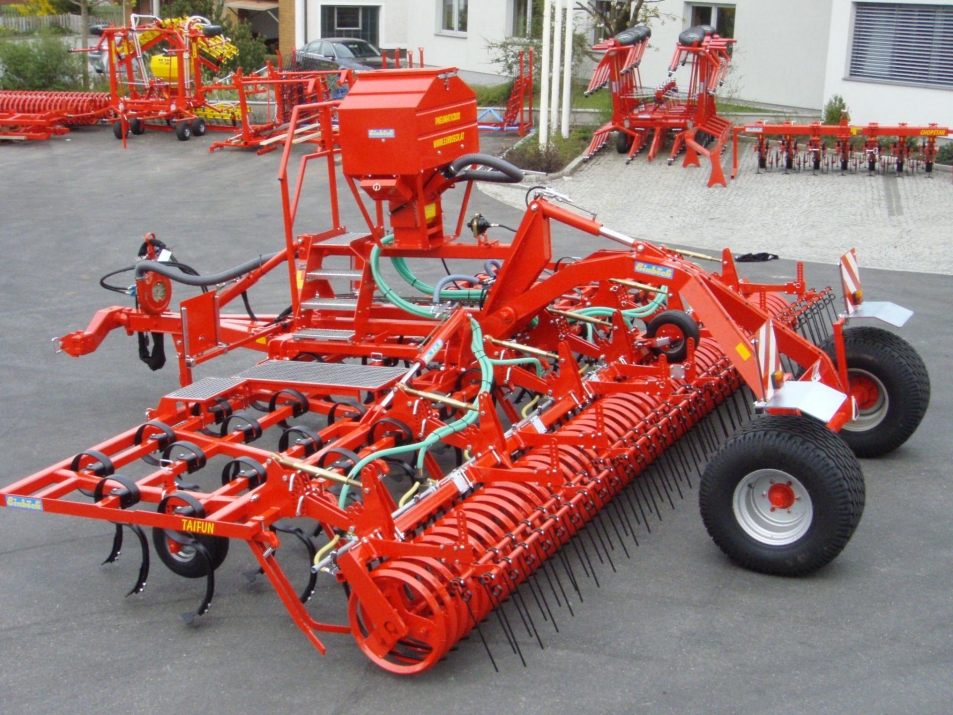

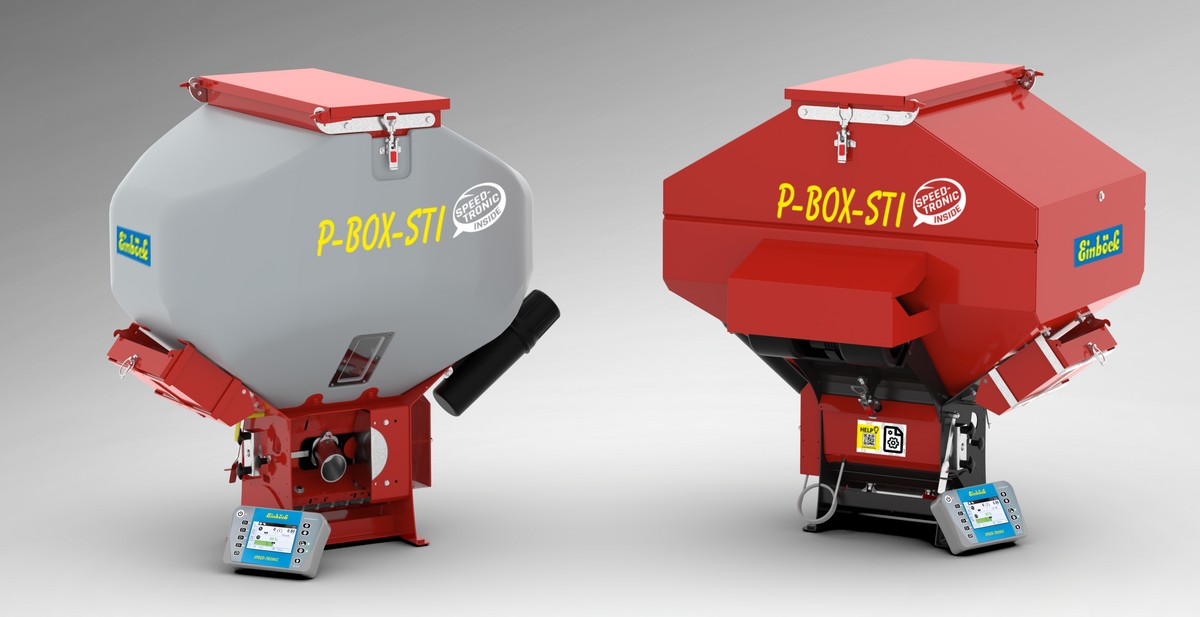

Pneumatic seeding box P-BOX-STI
The P-BOX-STI seeding box can be mounted on the blade cultivator for easy and simultaneous seeding of catch crops. It is electrically driven and operated from the tractor cab via the SPEED-TRONIC terminal. Suitable steps for filling are available as an option.
