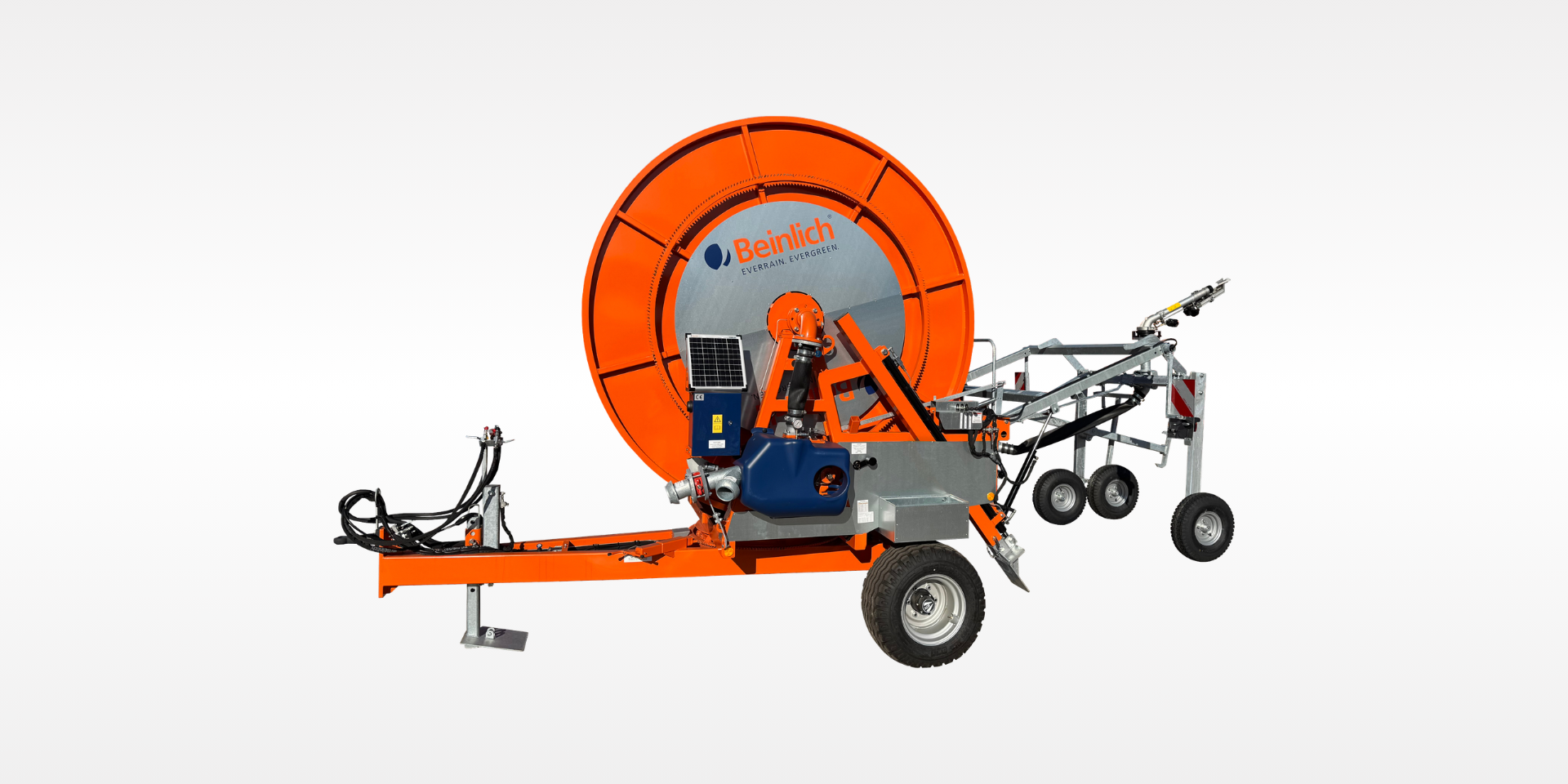

Irrigation system PRIMUS 2800
Irrigation system for large crops
Inquiry
Description
Irrigation of appropriate crops provides a basis for success and outstanding harvests in terms of both quality and quantity. The aim is to ensure sufficient irrigation quantities at lowest possible cost at all times. Using state-of-the-art and robust technology, the primus series ensures irrigation on fields with furrow lengths between 300 and 650 m or 1300 m with centered hydrant line.
-
Heavy-duty steel construction
-
4 transport wheels + 4 foldable support wheels for the sprinkler unit
-
Hydraulically rotating sprinkler unit (180°)
-
Hydraulic stabilization system
Advantages
-
Single-axle chassis – standard for model PRIMUS 1800
-

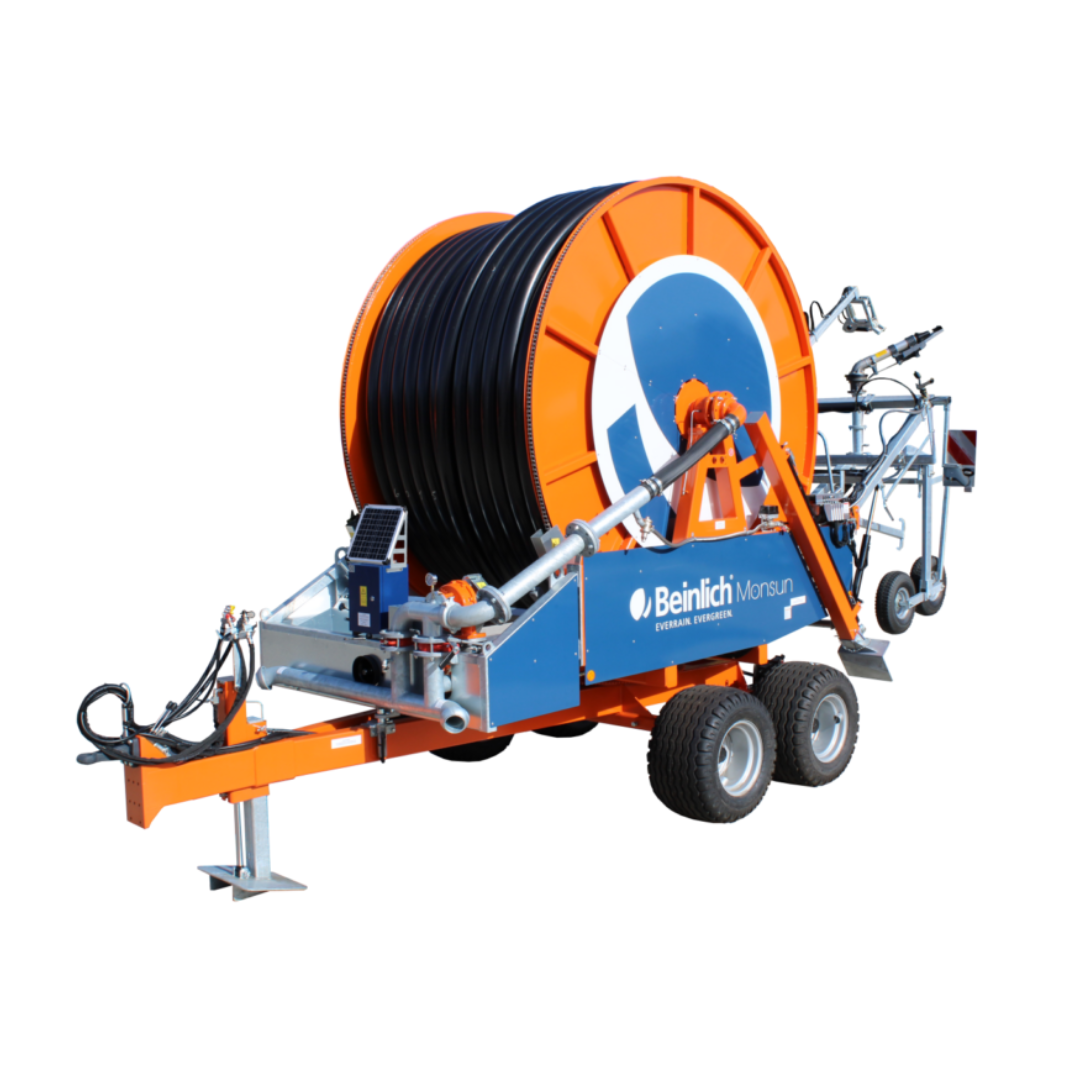

Tandem axle chassis with four wheels – standard for model MONSUN 2 3500 S
-
Hose reel drum with 3000 mm diameter, designed not to damage the hose
-
Trolley with two rubber wheels with sprinkler model 100, with clearance adjustment 1.80–2.00–2.25 m for maize
-
1500 Nm gearbox, gear-driven to the drum, side-mounted
-
Original Beinlich drive system, mounted at the front of the drum
-
Beinlich turbine integrated with a distributor for regulating retraction speed and ensuring uniform distribution
-
Front-mounted brake
-
High-quality PE hoses manufactured by EGEPLAST, Germany
-
Low/high pressure shut-off valve
-
PTO shaft
-
Toolbox located at the front
-
Hydraulic rear support with manual pump
-
Hydraulic lifting system for the trolley
-
Mechanical shut-off for hose retraction
-
Pressure gauge for measuring system pressure
-
TWIN 160SR sprinkler with three nozzles (25, 27.5, 30 mm)
-
Mechanical adjustment of irrigation rate
-
KR 7 electronic unit with solar panel and battery for controlling trolley retraction speed
-
Mechanical hose guide
Technical parameters
Basic equipment
- Turntable machines with gun trolley:
- 1-axle chassis, track 1.80 – 2.25 m with turntable extendable towards the PE-pipe, attachment for tractor bar or drive-through machine with 3-wheel trolley:
- 1-axle chassis with portal axle for 480 mm ground clearance, track adjustable between 1.50m – 1.80m
- incl. guiding arm for positioning of PE-pipes into the lane, without turntable, from model 2000
- Tyres 10.0 – 15, double (from model 2500: 11.5 – 15)
- Double axle with 4-fold tyres 10.0 – 15 for models 2800 I + II
- Drum frame with drum Ø 1800, 2000, 2500, 2800, 3000 mm
- Lateral gear rim drive
- 4-speed gearbox with pto shaft winding
- Belt brake with flanged turbine with integrated 3-way bypass control for regulation of retraction speeds and position balancing
- Electronic 2 KR control with solar panel and 12V battery in a water-tight, lockable cabinet
- Underpressure and overpressure shut-off – slowly closing via gate valve control
- Mechanical shut-off function
- Hydraulic rear support with manual pump
- Tripod lifting device with hydr. with manual pump
- Special PE-pipe in EGEPLAST quality, lustre finish
- 3-wheel gun trolley, adjustable for positioning in travel track 1.50 m – 2.25 m
- for model 1800 3-wheel tripod series
- Sime rain-gun with nozzle set
- PE-pipe Ø 63 – 90 mm, nozzles 14 – 24 mm
- PE-pipe Ø 100 - 110 mm, nozzles 20 – 34 mm
- Flat hose 6.5 m
- Pressure manometer on the machine
- Protective machine cover
- Storage tray in the drawbar
We recommend operation in combination
with Beinlich irrigation boom Typ R 20– R 30 – R 40

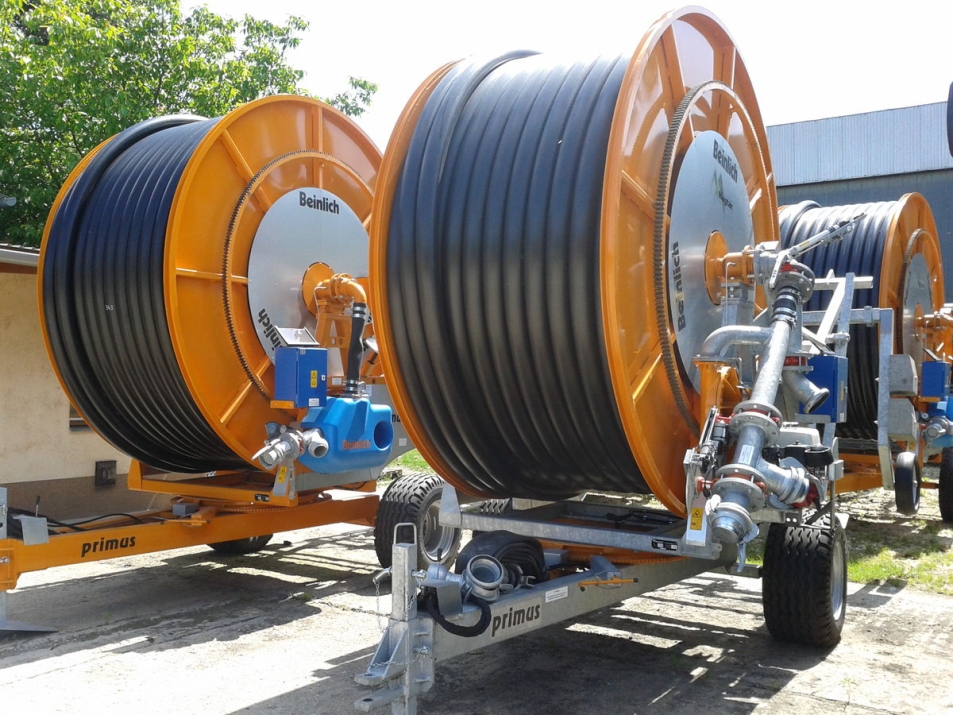

Photos
