Description

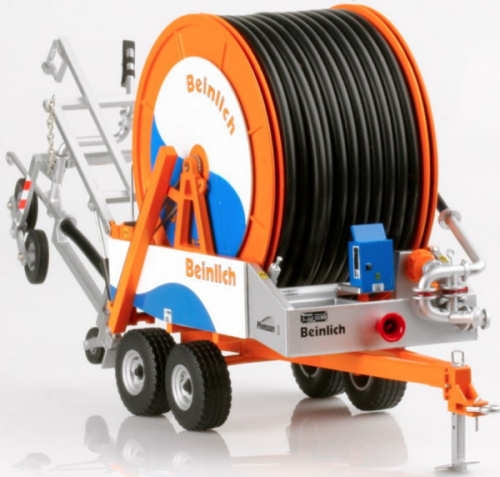

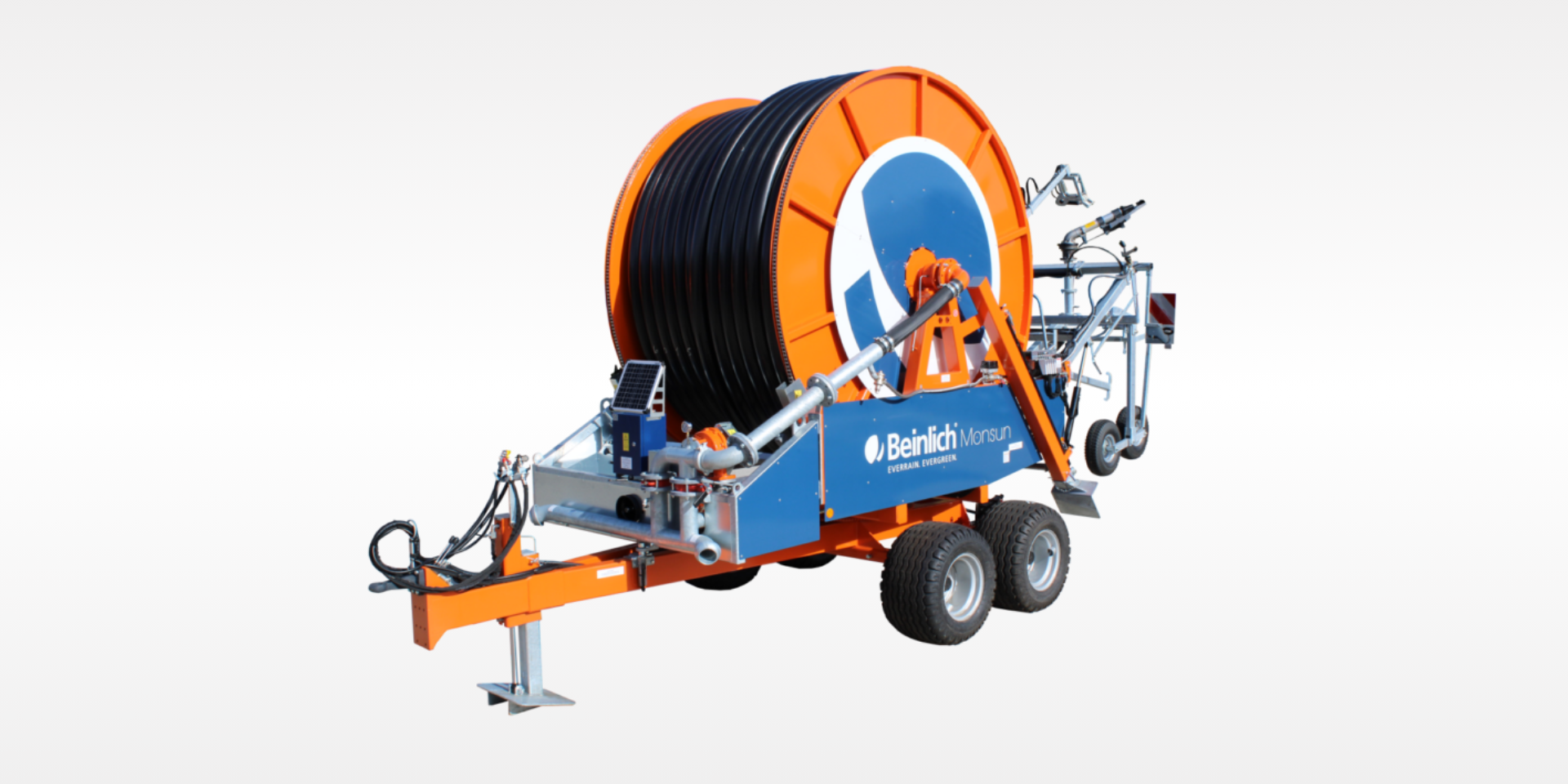

The Monsun series has always been leading in terms of quality and innovation. From 1982, the first Ø 110 mm – 500 m PE-pipes, the double-axle chassis and the electronic retraction control were introduced with Monsun. Since then, Monsun has conquered the market for large-type machinery and has developed to be a forerunner establishing benchmarks in the irrigation industry. For the season of 2008, the new Super range again sets milestones in terms of pipe dimensions. The new Ø 135 mm pipe allows for irrigation outputs of 120 m³/h and more. Pressure requirements can be significantly decreased and irrigation areas increased by far.
Advantages

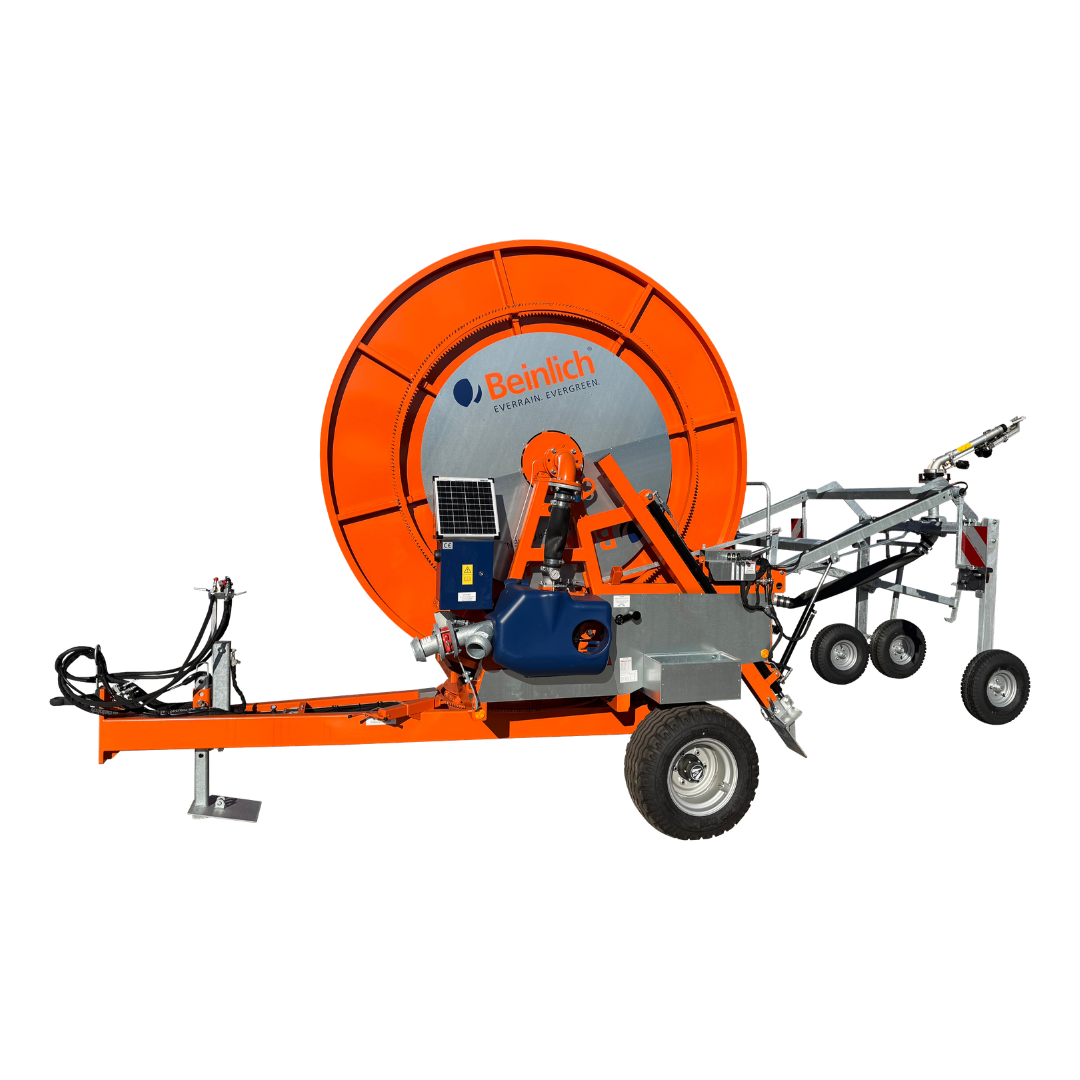

- Single-axle chassis – standard for model PRIMUS 1800

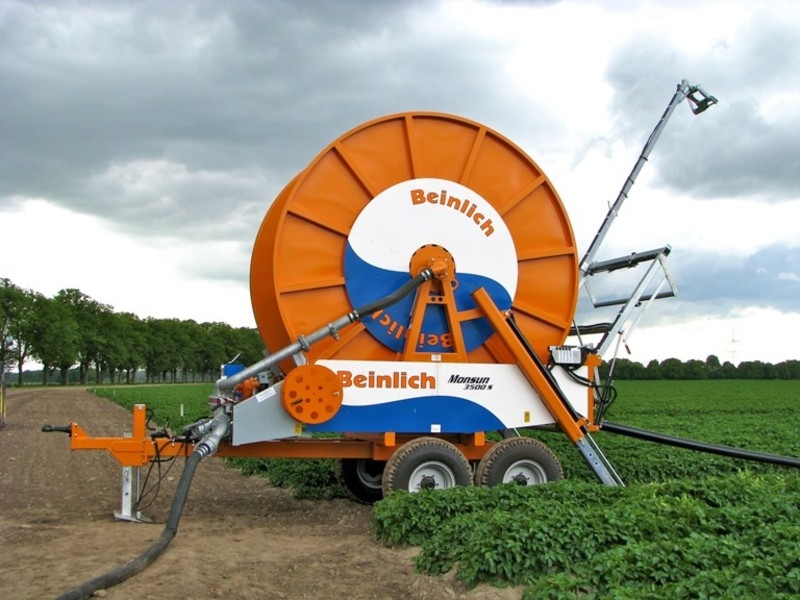

- Tandem axle chassis with four wheels – standard for model MONSUN 2 3500 S
- Hose reel drum with 3000 mm diameter, designed not to damage the hose
- Trolley with two rubber wheels with sprinkler model 100, with clearance adjustment 1.80–2.00–2.25 m for maize
- 1500 Nm gearbox, gear-driven to the drum, side-mounted
- Original Beinlich drive system, mounted at the front of the drum
- Beinlich turbine integrated with a distributor for regulating retraction speed and ensuring uniform distribution
- Front-mounted brake
- High-quality PE hoses manufactured by EGEPLAST, GermanyLow/high pressure shut-off valve
- PTO shaft
- Toolbox located at the front
- Hydraulic rear support with manual pump
- Hydraulic lifting system for the trolley
- Mechanical shut-off for hose retraction
- Pressure gauge for measuring system pressure
- TWIN 160SR sprinkler with three nozzles (25, 27.5, 30 mm)
- Mechanical adjustment of irrigation rate
- KR 7 electronic unit with solar panel and battery for controlling trolley retraction speed
- Mechanical hose guide
Technical parameters
Basic equipment
- Robust V-frame with front jack and attachment for tractor bar
- Portal axles with 4-fold tyres 11.5 – 15, variable track adjustment 1.80 – 2.25 m
- From Monsun 3500 Super optionally available:
- 2 axles with 4-fold tyres 12.5 – 18 or
- 3 axles with 6-fold tyres 11.5 - 15
- Hydraulic trolley lifting device with manual pump or control valve
- Mechanical rear jacks
- Robust drum, smooth interior
- Drive via
- BEINLICH freewheel turbine, front-mounted
- BEINLICH oil bath angular drive, V-belt reduction
- Frontal pto shaft connection
- Drive via outer drum wheel on both sides
- Drum freewheel brake and backstop
- Electronic 2 KR type regulation with solar panel and 12V battery in water-tight, lockable cabinet
- Underpressure and overpressure shut-off, slowly closing via gate valve control
- Mechanical end and safety shut-off
- Machine tubing 4“, galvanized
- Galvanized storage tray at front
- Special PE-pipe in EGEPLAST quality, lustre finish
- Spindel shafts- Winding device
- Mechanical guiding arm for PE-pipe positioning
- 3-wheel gun trolley type 100, track adjustable between 1.50 m – 2.25 m incl. ground anchor and 1 weight block (for drive-through machine)
- Trolley tubing galvanized
- Sime rain-gun with nozzle set
- Ranger for PE-pipe Ø 100 - 125 mm, nozzles 20 – 34 mm
- Explorer for PE-pipe Ø 140 mm
- Flat hose 6.5 m Ø 102 mm
- Riser with elastic steel connection clamp for installation of 3“ water meter or liquid manure feed
- Pressure manometer on the machine
- Protective machine cover

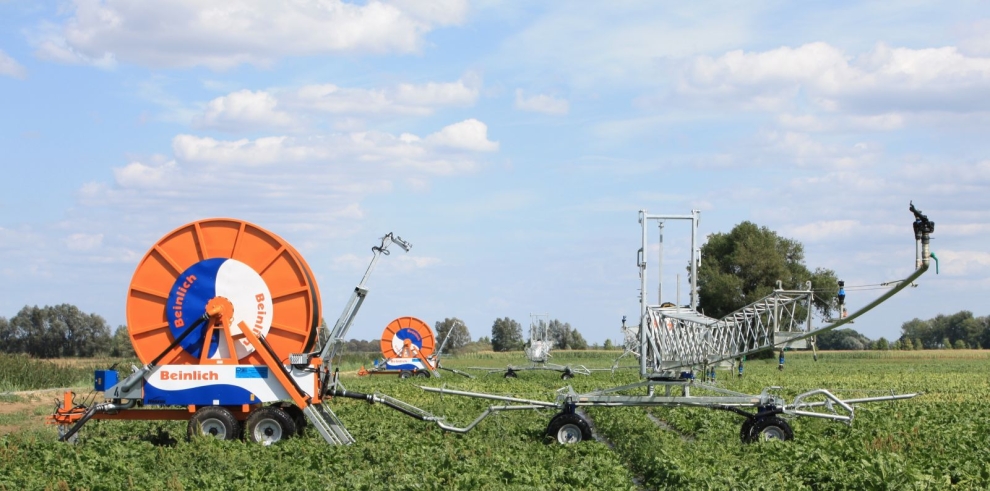

Photos
