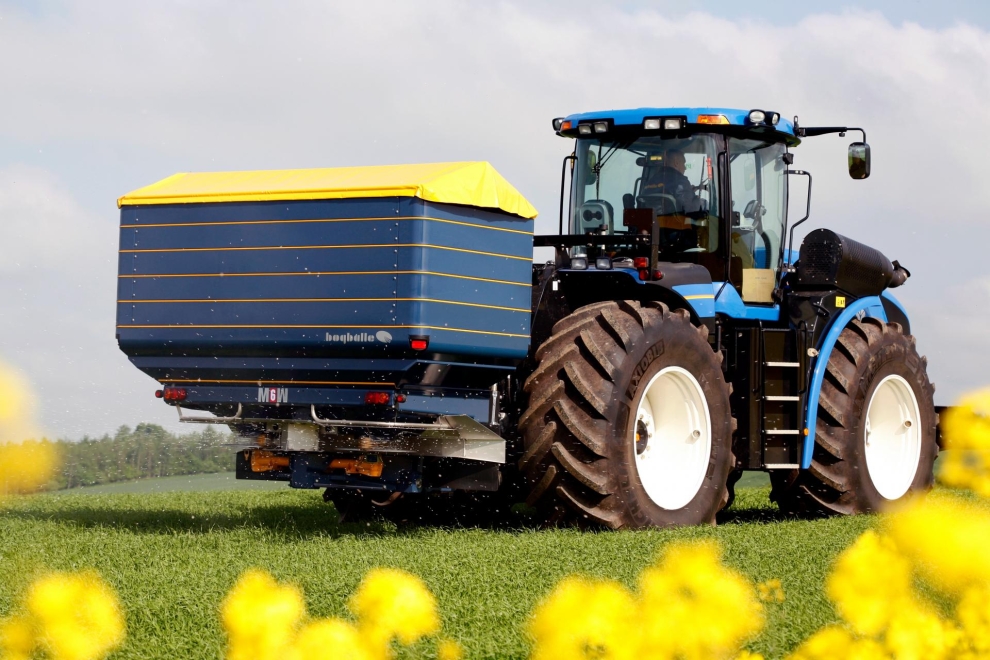

New product

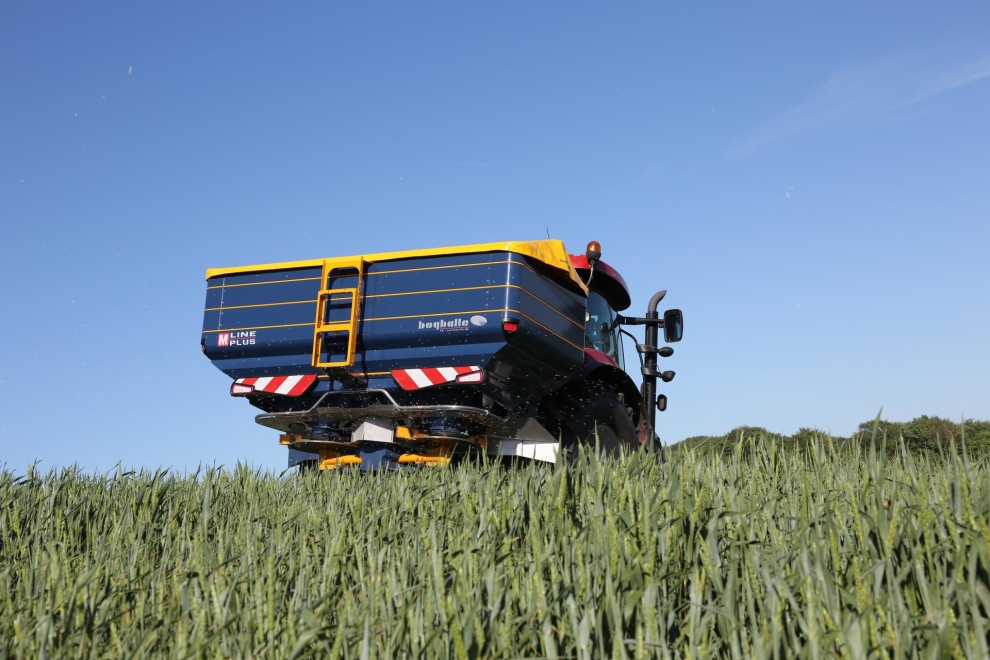

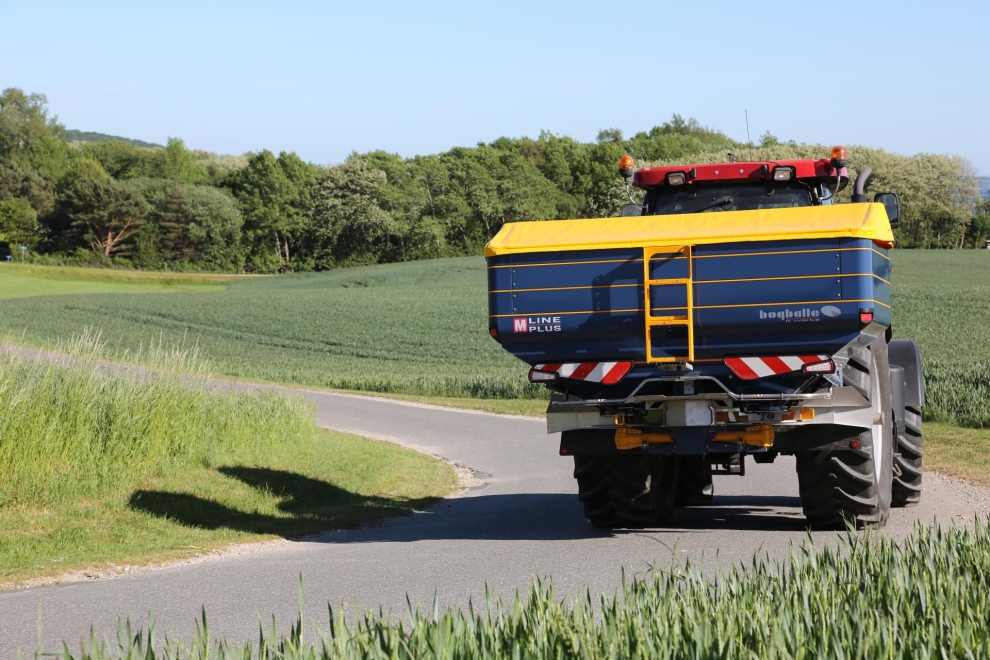

M-series

Working width: 10 - 42 m
Capacity in liters: 0 - 5550 l

Bogballe FERTILIZER SPREADERS

Description

Advantages

Technical parameters

Photos

Video

Description

The new M-Line is ready and more Dynamic than ever. A range of up-to-date, innovative features puts you in a position to meet the tasks of today and for the future.
The design of the spreader and the versatility of the quantity control makes the machine more than just a fertilizer spreader - and with the impressive spreading technique you hold the strongest card.
In other words : An investment in an M-line spreader offers reliability during field work, handling high value fertilisers with care and applied with maximum precision - exactly as you would wish!

Advantages

PRECISE APPLICATION RATE AND EFFICIENT CONTROL FROM 0 TO 650 KG/MIN

The M-Line is a high-capacity fertilizer spreader equipped with a rotating outlet for precise control of application rates from 0 to 650 kg/min. You can choose between four different outlet positions to ensure maximum accuracy, both for very small and very large application rates.

[OFF] – Off
[MAX] – Maximum (up to 650 kg/min)
[STD] – Standard (up to 300 kg/min)
[MIN] – Minimum (up to 75 kg/min)
[MIC] – Micro (0.5 – 15 kg/min)

3 QUICK WAYS FOR EASY AND EFFICIENT ADJUSTMENT

Weighing system

When choosing a spreader with a weighing system, machine adjustment is fully automatic. The fertilizer flow rate is automatically controlled by the weighing system, and the outlet openings are adjusted according to the set application rate and the actual driving speed.

Application rate adjustment independent of speed

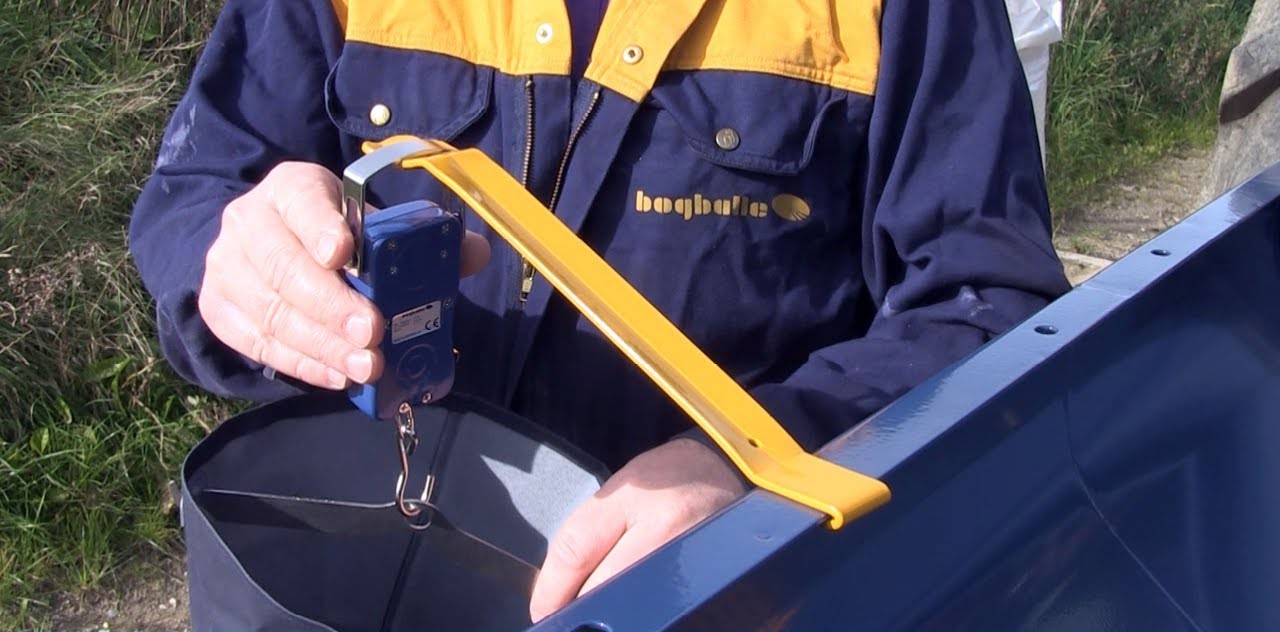

When choosing a spreader with application rate control independent of speed, simply enter the flow factor determined in the Bogballe spreading charts. Alternatively, use the S-indicator to determine the flow rate for the specific fertilizer.

Remote or manual control

When choosing a spreader with hydraulic or manual control, use the settings from the Bogballe charts or the S-indicator to determine the correct settings for the specific fertilizer.

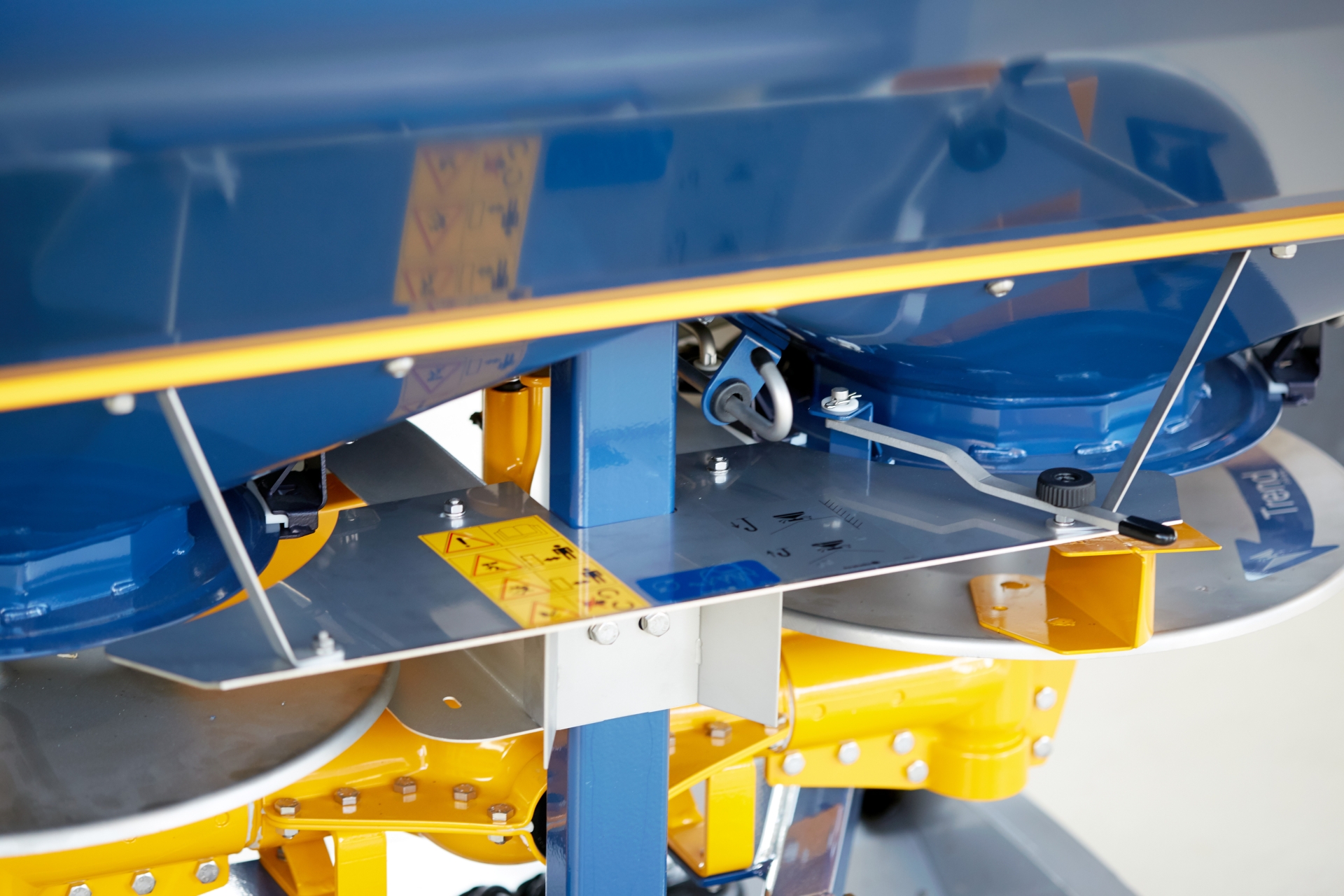

THE BEST SPREADING SYSTEM

The BOGBALLE in-center spreading system, with discs rotating towards each other to the center of the spreader, is recognized as a highly accurate system requiring minimal adjustment. The full 180-degree overlap from both discs means that the right and left sides of the spreader do not need individual adjustment to achieve proper overlap during fertilizing. Each disc individually covers the entire area, eliminating the need for additional settings.

The large, flat spreading discs distribute the fertilizer evenly across the entire surface. Together with the unique asymmetric dual outlet, the discs maintain a spreading pattern covering 180 degrees, regardless of the application rate, working width, or type of fertilizer.

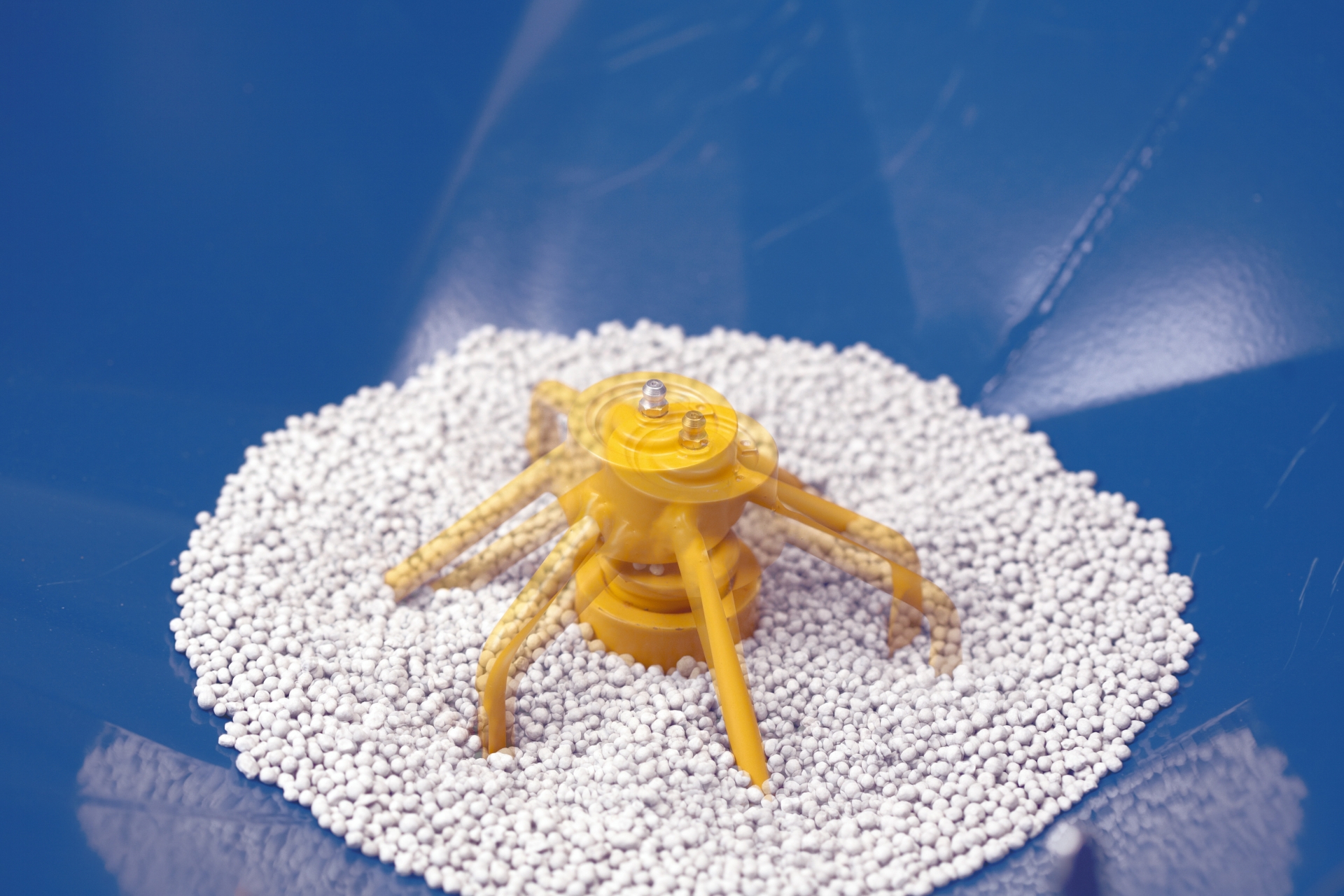

Excentric and gentle agitator

The agitator ensures a constant flow of fertilizer and therefore also a constant quantity. With eccentric movements the agitator leads the fertiliser to the outlet. An integrated pressure equalising cone mounted on the screen prevent direct fertiliser pressure on the agitator and the outlet.

Automatic drop point

The centrally controlled regulating system automatically adjusts the fertilisers dropping point on the spreading discs. The double shutter opens with different opening speeds and maintains in this way a perfect drop point irrespective of changes in quantity or forward speed. The short distance between the shutters and the spreading disc means that the drop point is minimum influenced, even under hilly conditions.

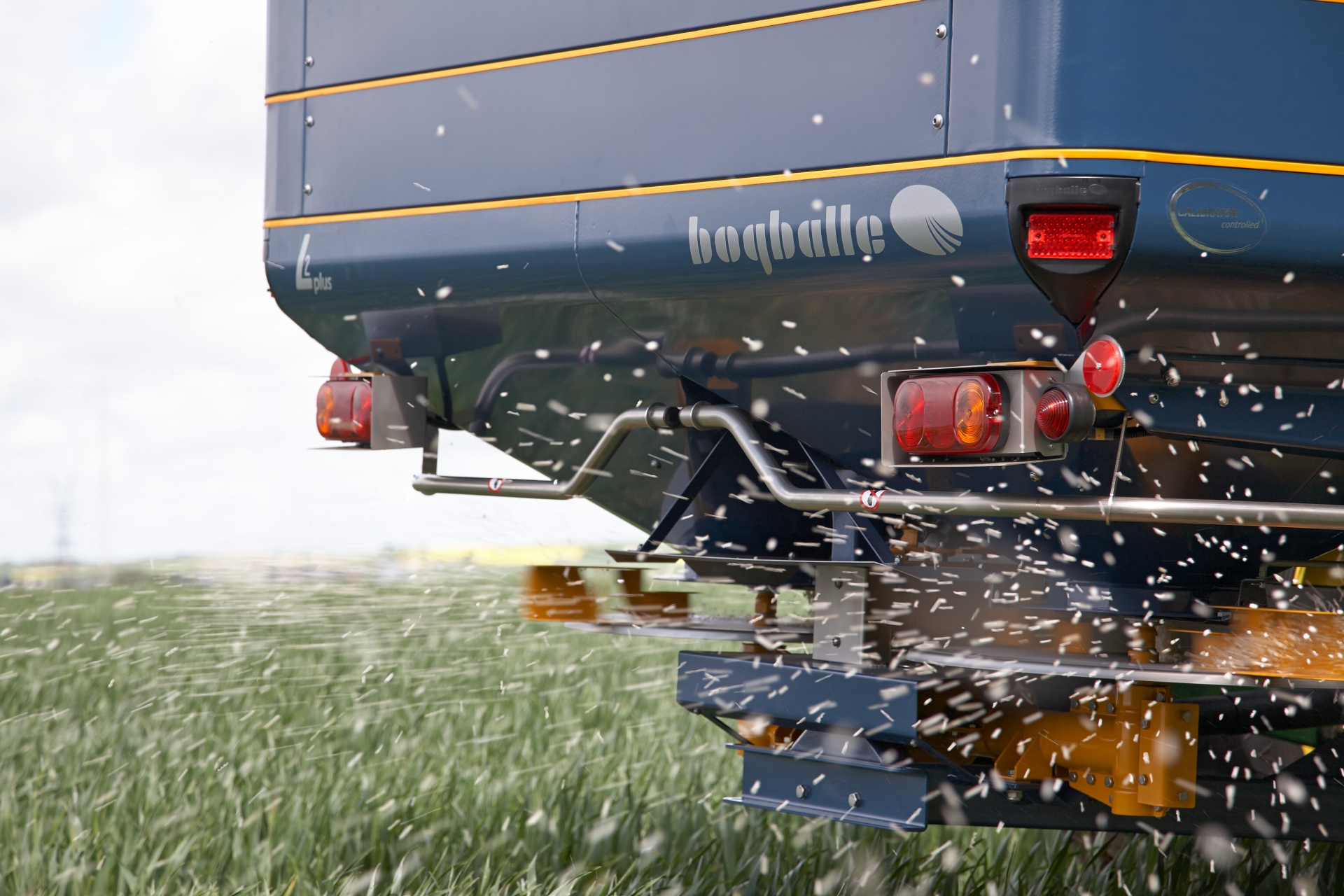

Optimum headland spreading

On headlands we use the Off-Centre system. The only adjustment is a change of disc rotation direction. This system ensures a perfect fertilizer application to the border as well as in the field. The spreading system fulfils the European environmental standard EN 13739-1 and is standard.

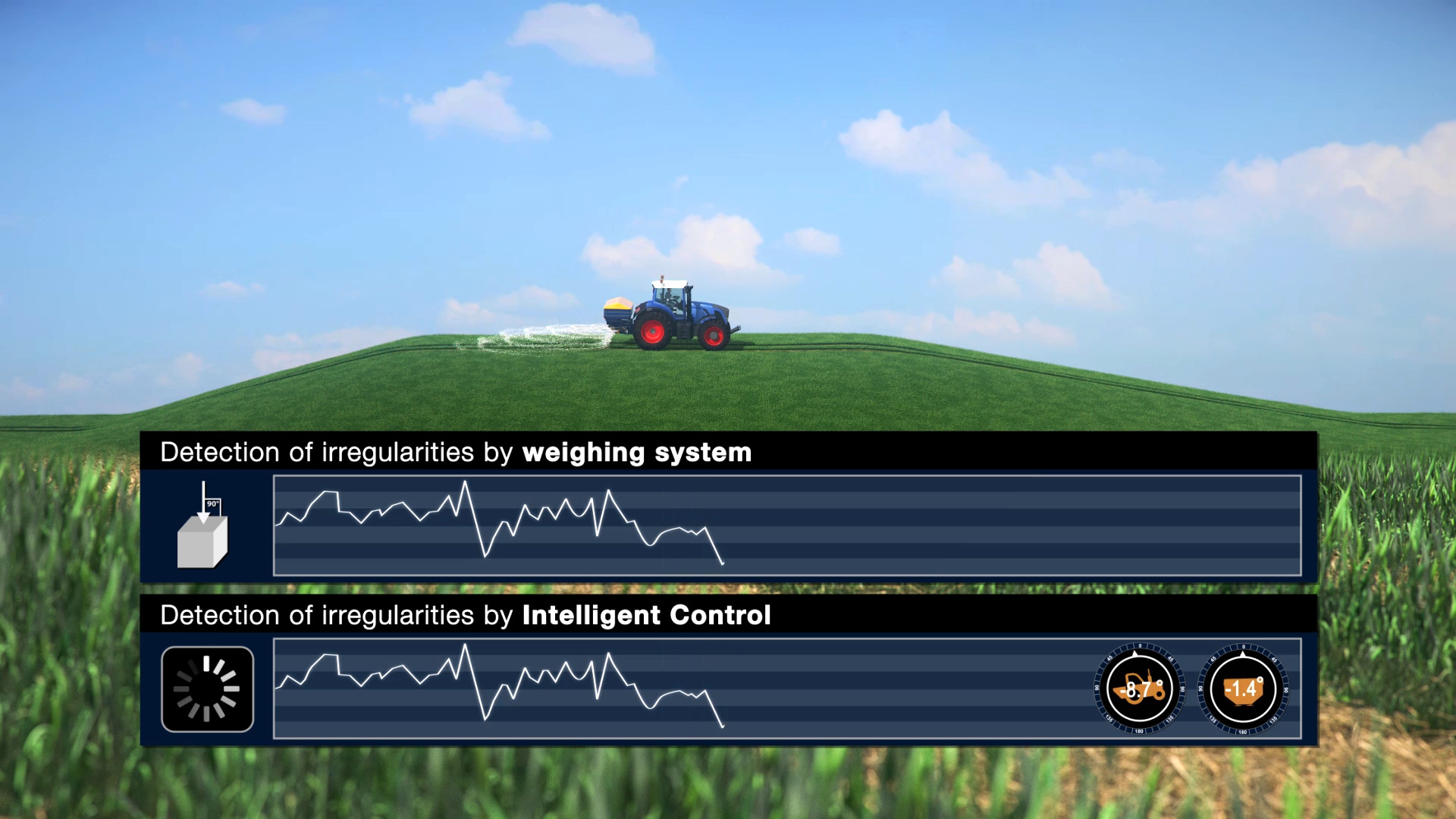

Weighing technique since 1988

Since 1988 the weighing technique has ensured a high level of precision. It is based on the 1:1 principle, in which the weight of the actual hopper contents is continuously monitored. The technique registers changes in the flow and adjusts the shutters automatically on the move. Therefore the amount of fertilizer used is precisely controlled ensuring optimum use of inputs and control of costs.

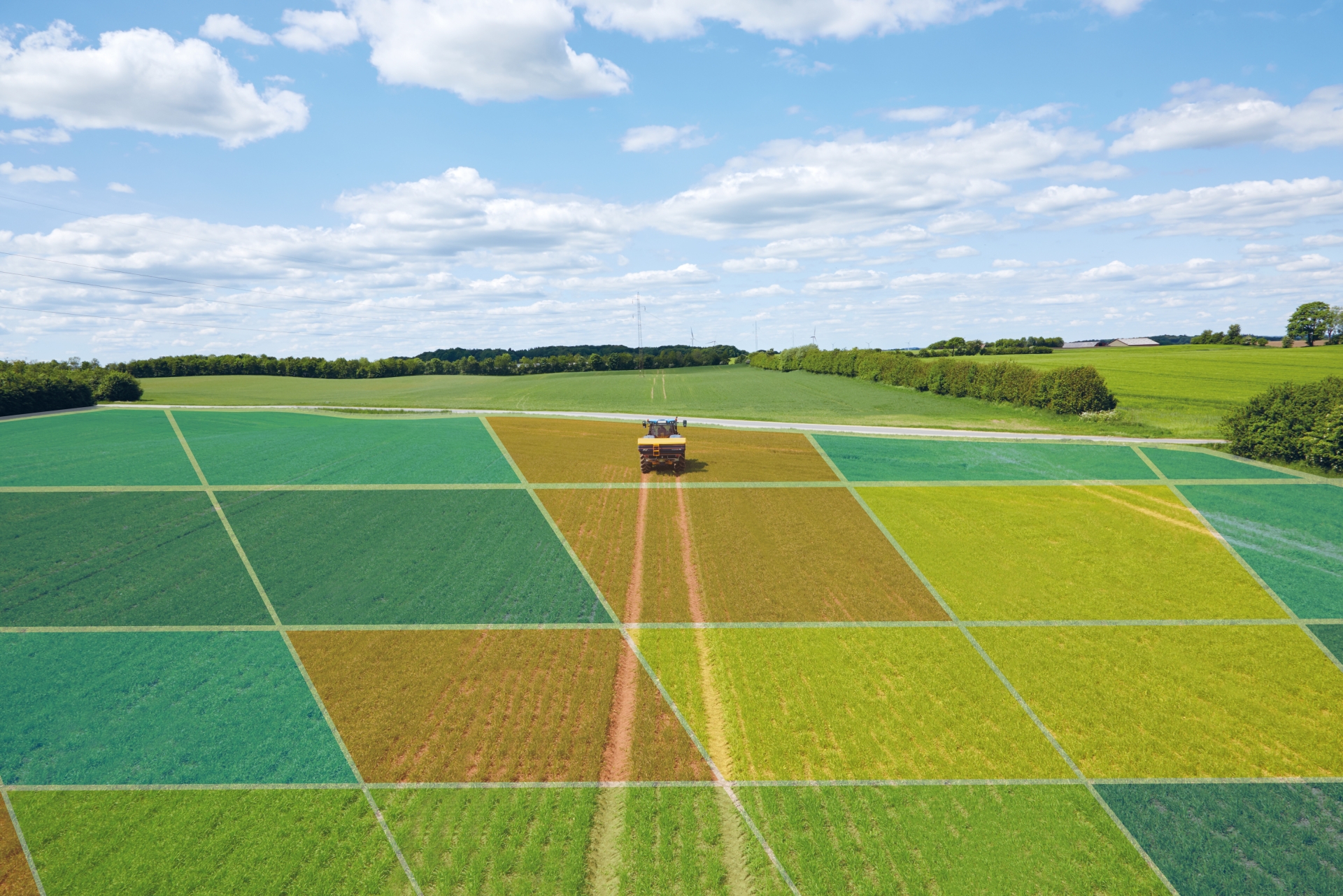

Map of variable rate application

In 1991, Bogballe was the first fertilizer spreader manufacturer to offer variable rate application based on a GPS system. Today, Bogballe offers the Dynamic Differential Control system, which manages both the application rate and the shape of the spreading pattern. The spreader outlets control and adjust the fertilizer application across the entire working width. The planned application, according to the application map, is carried out through gradual transitions.

Software systems often interpret a field as small, sharply separated zones, but in reality, the transition from one application rate zone to another is more gradual, with smooth changes in rates. Bogballe’s Dynamic Differential Control adapts the rate and spreads progressively to match actual field conditions.

CALIBRATOR FREE calculates the application rate across the working width, and the distribution behind the spreader is automatically adjusted. This ensures optimal application even in overlapping areas.

Bogballe’s CALIBRATOR and ISOBUS solutions allow a wide range of GPS-controlled controllers to perform variable rate fertilizer application.

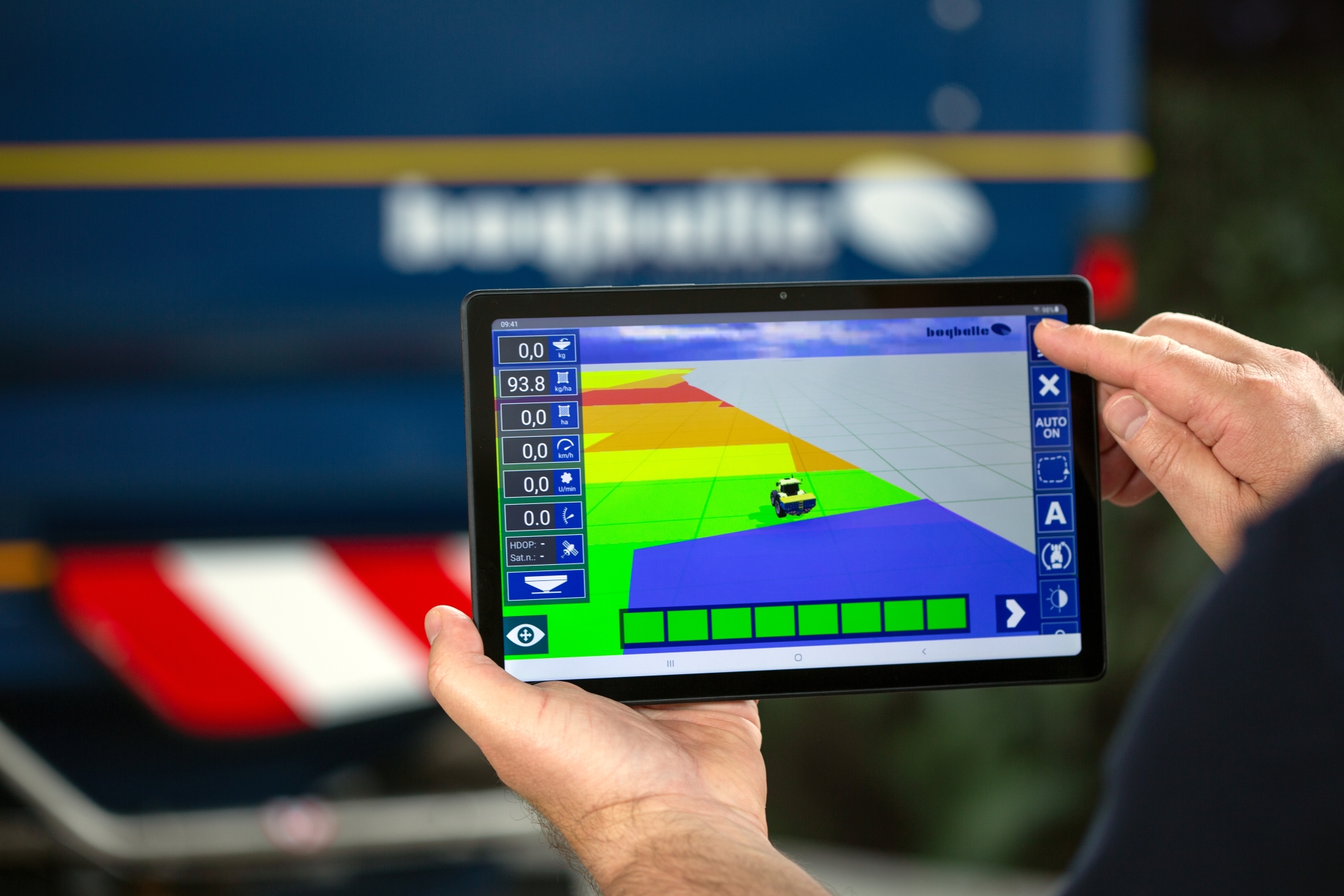

NAVI APP

Application maps via GPS
The Navi App includes a variable rate application function, allowing different fertilizer rates to be applied depending on the field position. Variable rate maps can be based on yield maps, sensor data collected via drones, satellite imagery, or soil samples.

The application map is based on the widely recognized and accepted SHAPE file format, as most farm management software can process this type of file.

With the Navi App, it is also possible to connect directly to a crop sensor that measures the plant’s nutrient requirements. This method enables real-time determination of the actual nitrogen demand while automatically adjusting the spreader to apply the optimal amount.

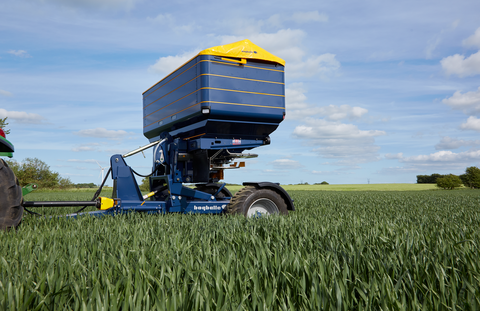

Trails

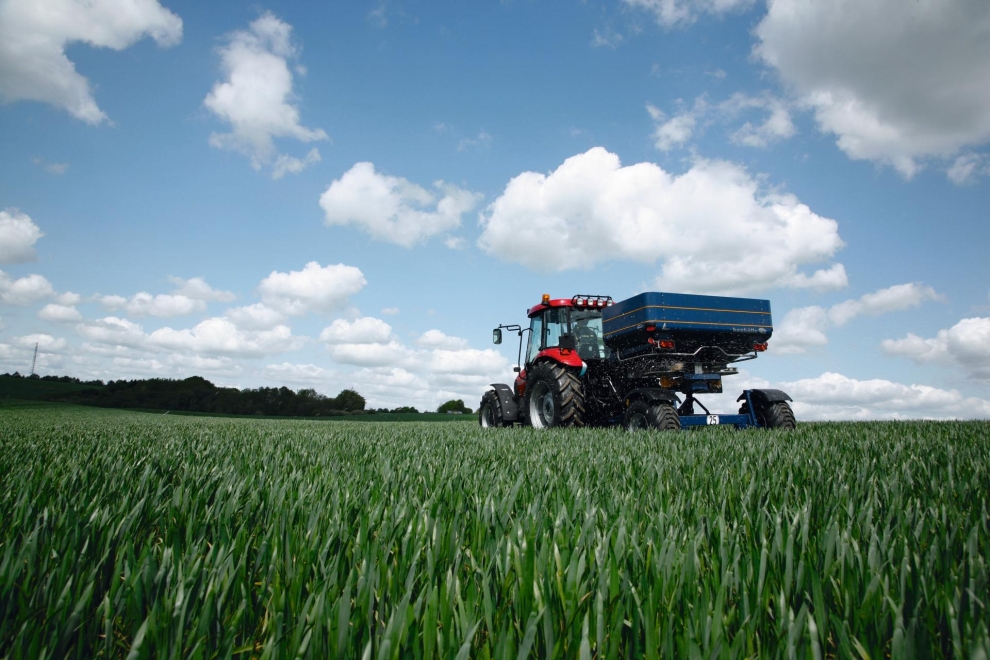

M45-Trail / M35-Trail / L2-Trail
If you have the need for a smaller tractor to "carry" a big spreader then you will find the perfect match in our program of trailed chassis. The adjustable wheel track width offers the possibility of suiting most tramline and row crop widths. The spreader can of course still be used as a 3-point linkage machine, for example for late top dressing. Our trailed chassis can be used together with L2, L2W and all M-line spreaders - except the M60W model.

Use not permitted on public road in the EU.

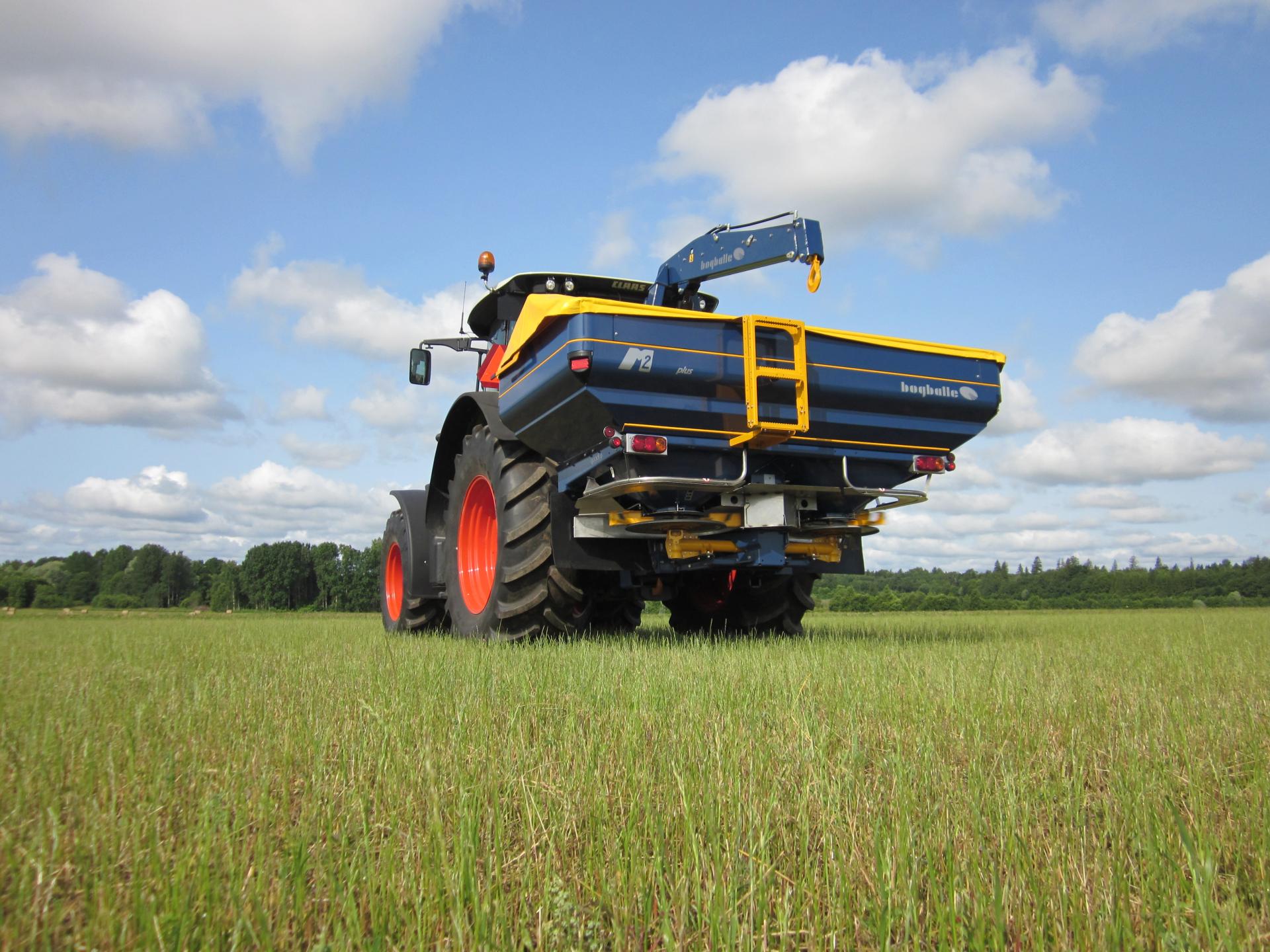

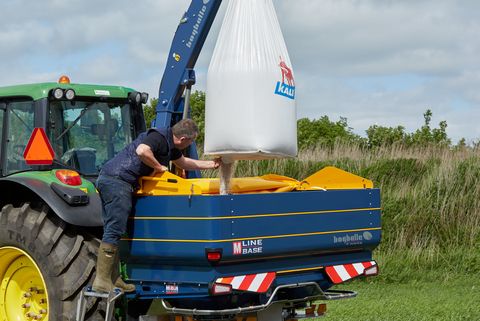

Big Bag lifter BXL 1300

The Big Bag lifter BXL 1300 is mounted on the 3-point linkage of the spreader to provide a one man loading and spreading machine. Place the Big Bags in the field and get a capacity increase of 3-5 Ha / hour. The telescopic and hydraulic extension arm can lift the Big Bags directly from the ground or from a trailer. Maximum load capacity is 1300 Kg.

The main lift cylinder is fitted with an anti-drop valve to give safety and security during work. The BXL 1300 can be fitted on spreaders up to 3300 litres capacity.

Technical parameters

Control Unit	M60W plus	M45W plus	M35W plus	M35W base	M45 plus	M35 plus	M35 base

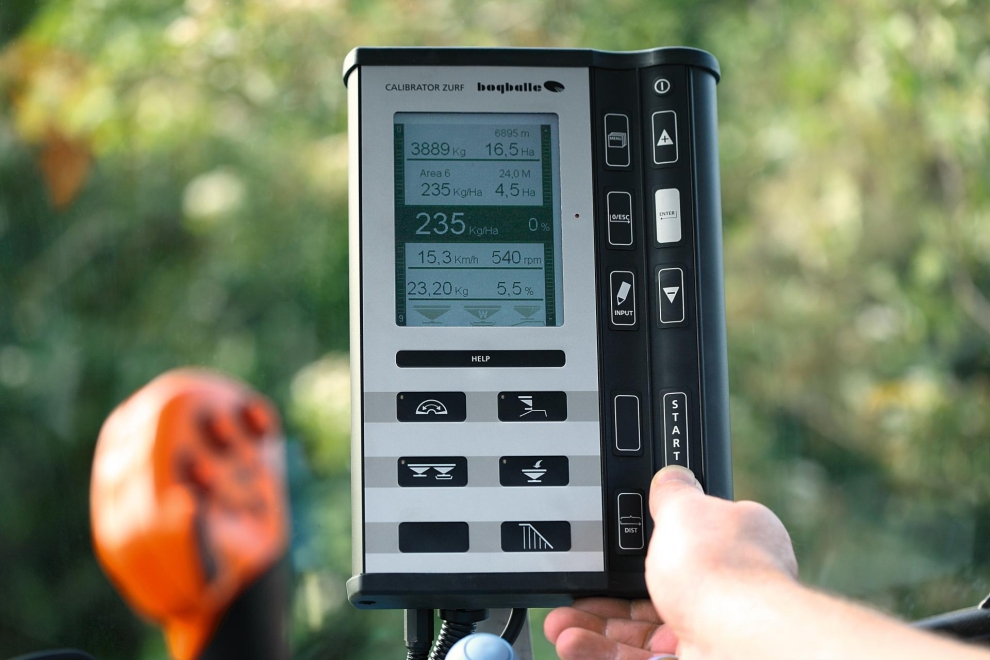

CALIBRATOR TOTZ	◐	◐	◐	◐	○	○	○
CALIBRATOR ICON	–	–	–	–	○	○	○
ISOBUS Controller	◐	◐	◐	◐	–	–	–
NAVI Com module	○	○	○	○	○	○	○
Hydraulic	–	–	–	–	○	○	○

Control of Spread Pattern	M60W plus	M45W plus	M35W plus	M35W base	M45 plus	M35 plus	M35 base
Section Control and dynamic Headland	●	●	○	○	○	○	○
External GPS Ready	○	○	○	○	○	○	○

Quantity Control	M60W plus	M45W plus	M35W plus	M35W base	M45 plus	M35 plus	M35 base
Weighing system	●	●	●	●	–	–	–
Manual calibration	–	–	–	–	●	●	●
Fully automatic calibration	●	●	●	●	–	–	–
Intelligent control	●	●	●	●	–	–	–
Speed relation	●	●	●	●	○	○	○
