Seedbed cultivator VIBROSTAR
Perfect for light to medium-heavy soils.
Description
The VIBROSTAR seedbed cultivator has been designed for professional and user-friendly seedbed preparation. It is mainly used on light to medium-heavy soils. The cultivator with S-tines creates an ideal seedbed and optimum levelling on ploughed soil or mulch seeded areas with organic material.
Advantages

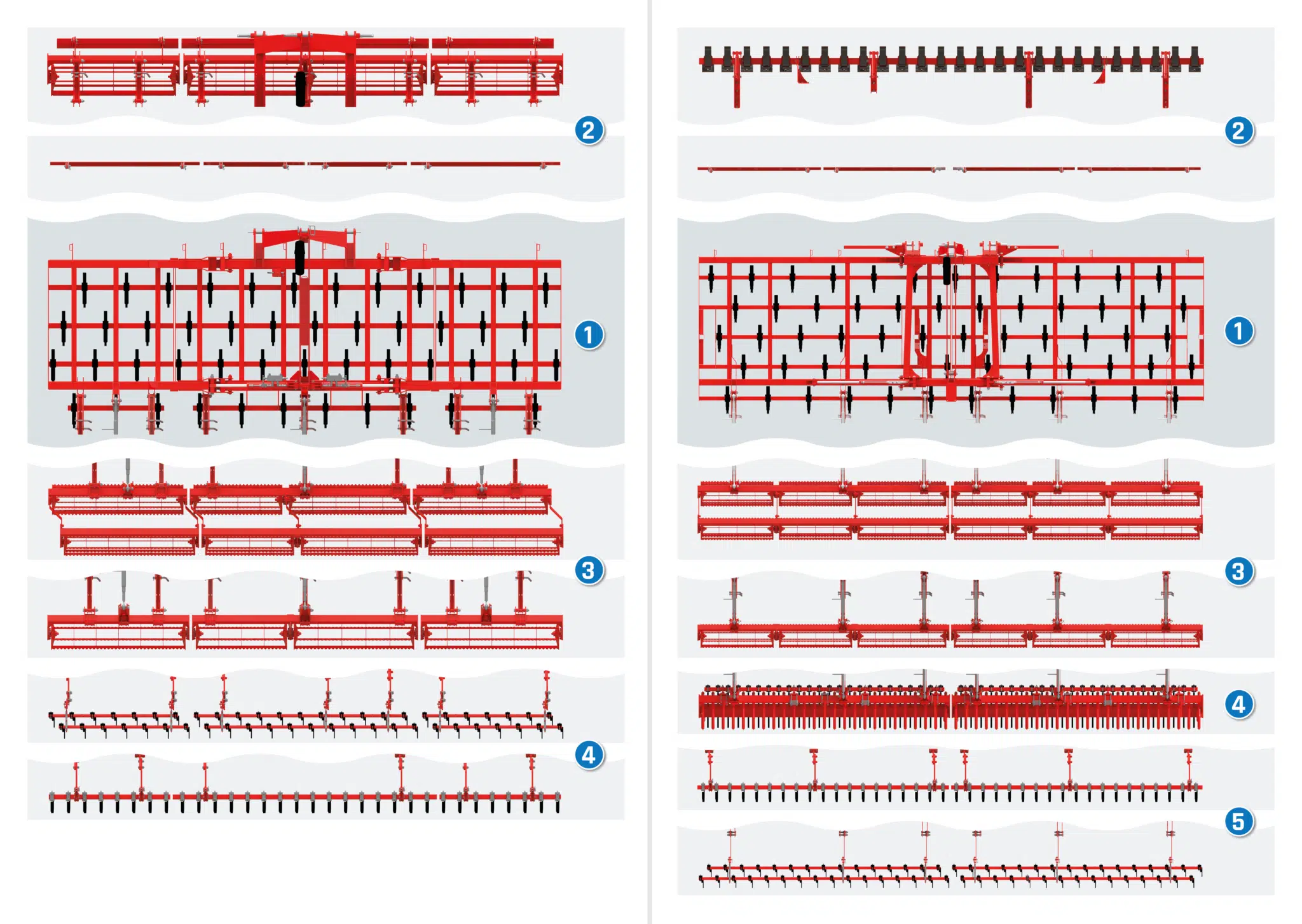

Seedbed cultivator VIBROSTAR

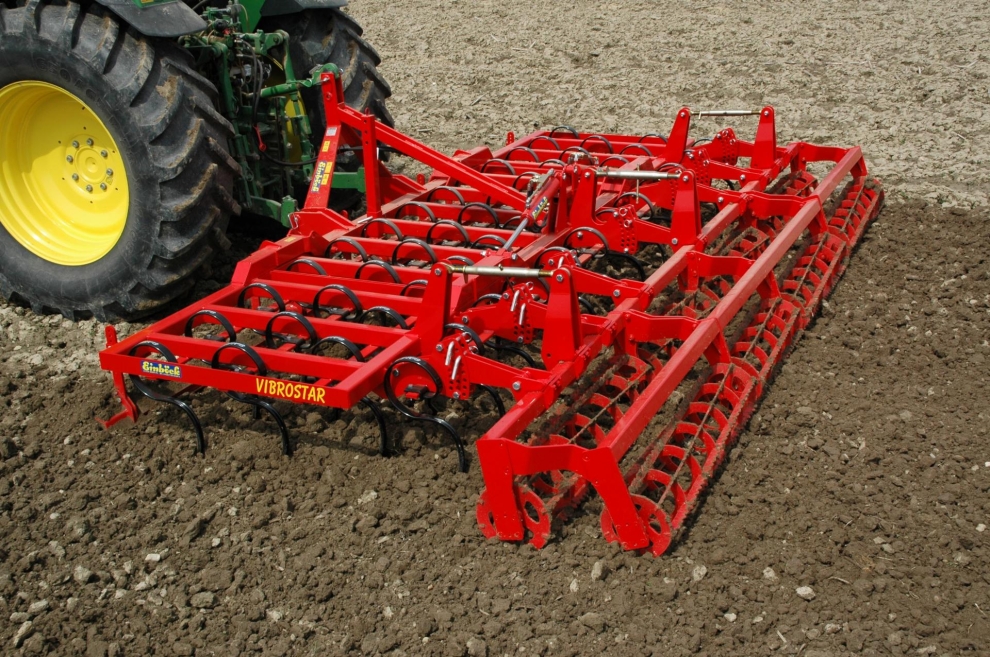

Frame with 4-rows of tines
- 4-row frame structure with 10 cm / 3.90″ line spacing and 36.5/42 cm (14.40/16.50″) spacing between beams
- Levelling plate or front roller (front crumbler up to 6.1 m / 20 ft. working width)
- Different rear rollers and roller diameters (serrated, flat steel, round-rod)
- Trailed weeder tines 1- or 2-row
Frame with 5-rows of tines
- 5-row frame structure with 10 cm / 3.90″ line spacing and 36.5/39 cm (14.40/15.40″) spacing between beams
- Levelling plate or VIBRO-BOARD
- Different rear rollers and roller diameters (serrated, flat steel, round-rod)
- Or ring packer roller
- Trailed weeder tines 1- or 2-row

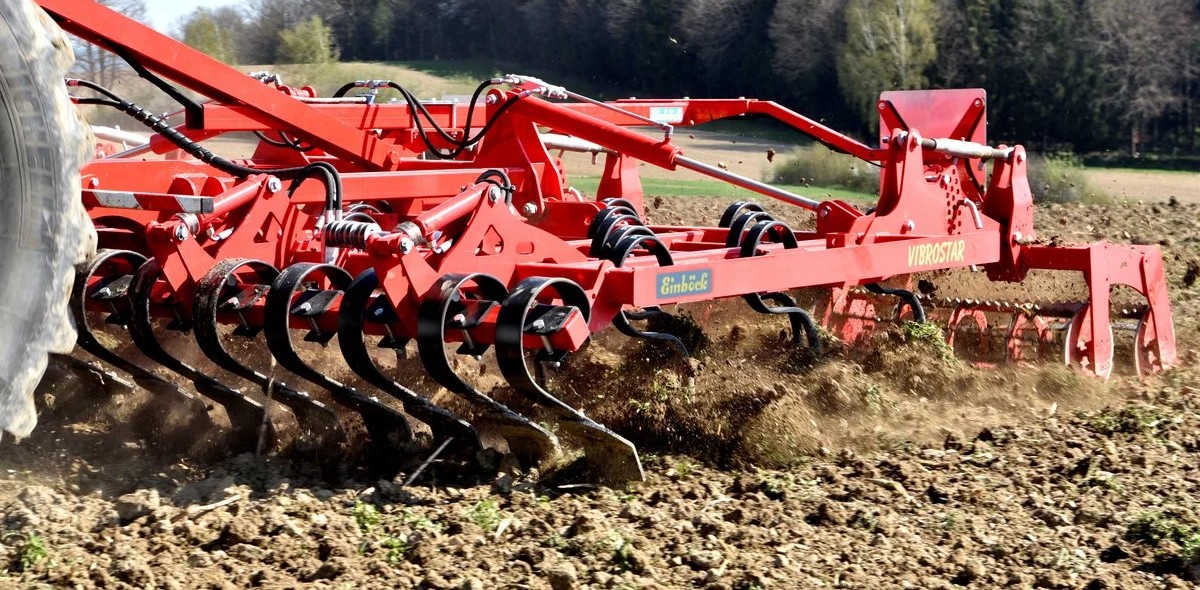

Big variety of different specifications
The large number of different levelling tools in combination with various tines, sweeps and trailed weeder tines make the VIBROSTAR to a fine cultivator that can be individually adapted to the respective conditions and purposes. In this way, the best specification to achieve the desired result can be found.

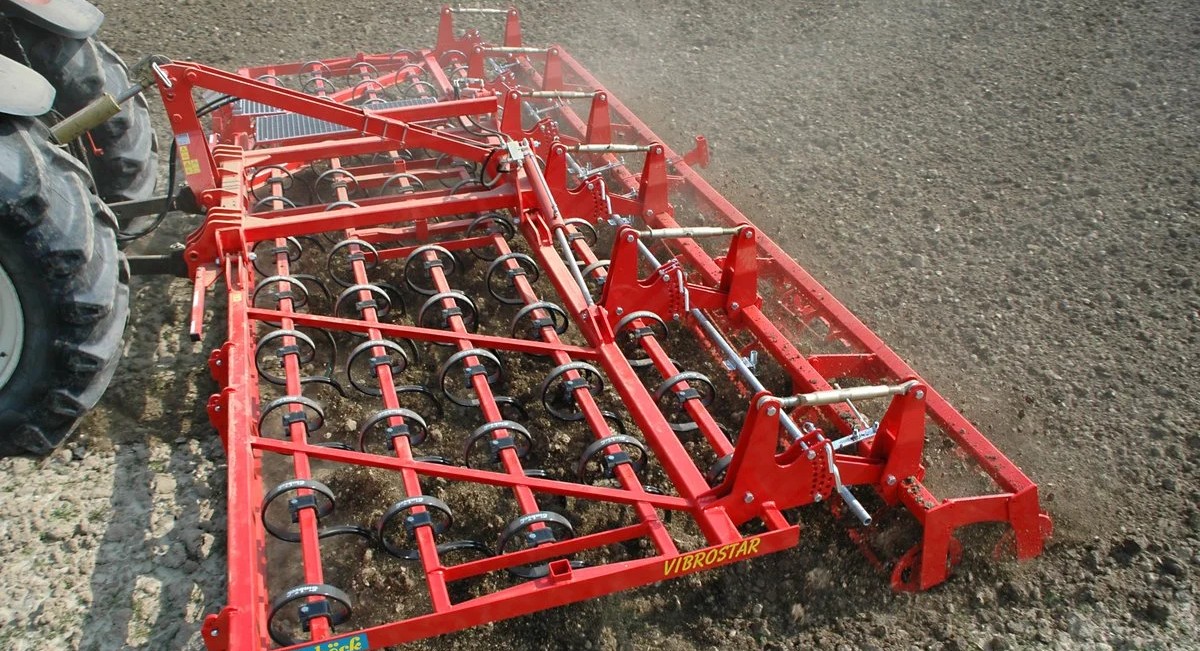

Finest seedbed preparation
Even seedbed preparation and levelling on ploughed or mulch-till fields with organic matter. Ideal for seedbed preparation even on compacted soil, as clods are placed on the surface and fine soil is placed in the seed layer. The different rollers for precise depth control ensure excellent mixing as well as crumbling.

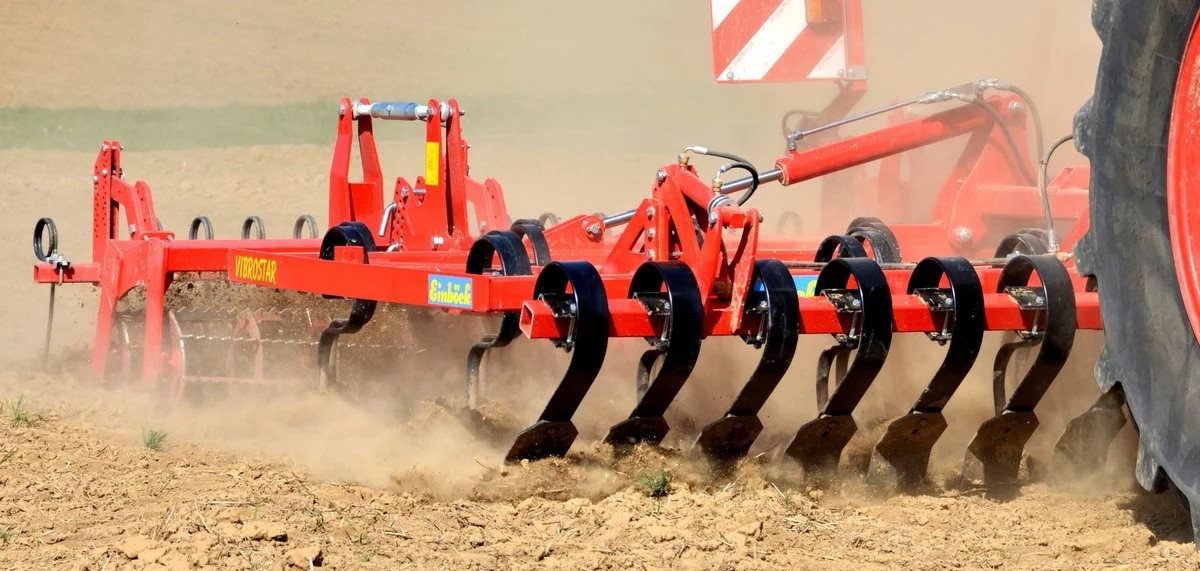

VIBRO-BOARD for best working quality
A hydraulically adjustable VIBRO-BOARD ensures initial levelling in front of the tines as well as breaking up and crushing of the clods. This way, the foundation for excellent working quality of the seedbed cultivator is already ensured by the first working tool.
Available for VIBROSTAR XXL and VIBROSTAR 5-…

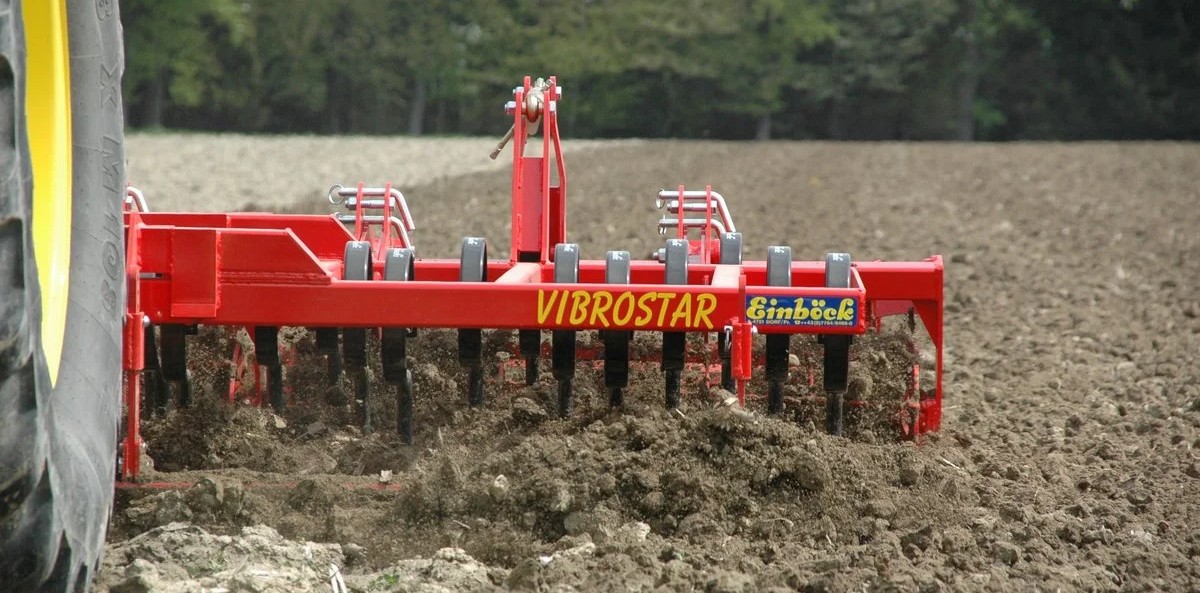

Levelling plate for perfect flat surface
The levelling plate, adjustable in height and angle, levels the surface. The cultivator’s working tools are guided smoothly during operation. By adjusting it on “dragging” or “on grip” position, it crushes the clods and levels it out. The levelling plate is recommended especially for seedbed preparation on ploughed fields in spring. In combination with the front roller, this plate is standard.

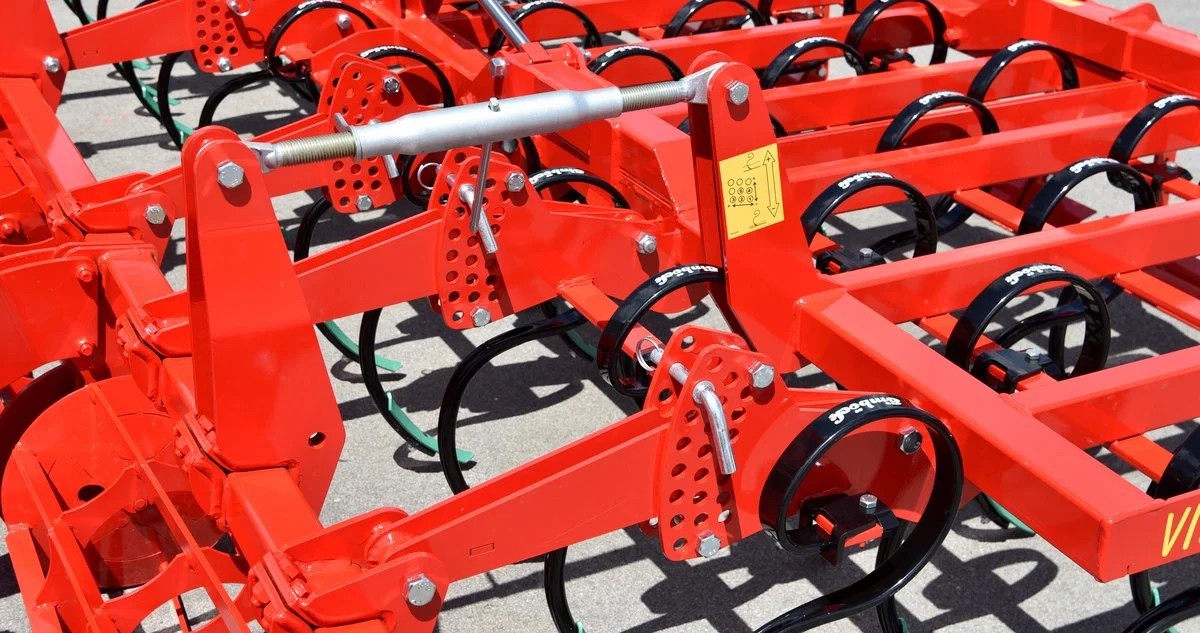

Simple working depth adjustment
The working depth is adjusted by means of bolts in a breadboard. With the spindle, the downforce on the rollers can be adjusted to the specific conditions. The result is a reconsolidated seedbed with an optimally crumbly structure.

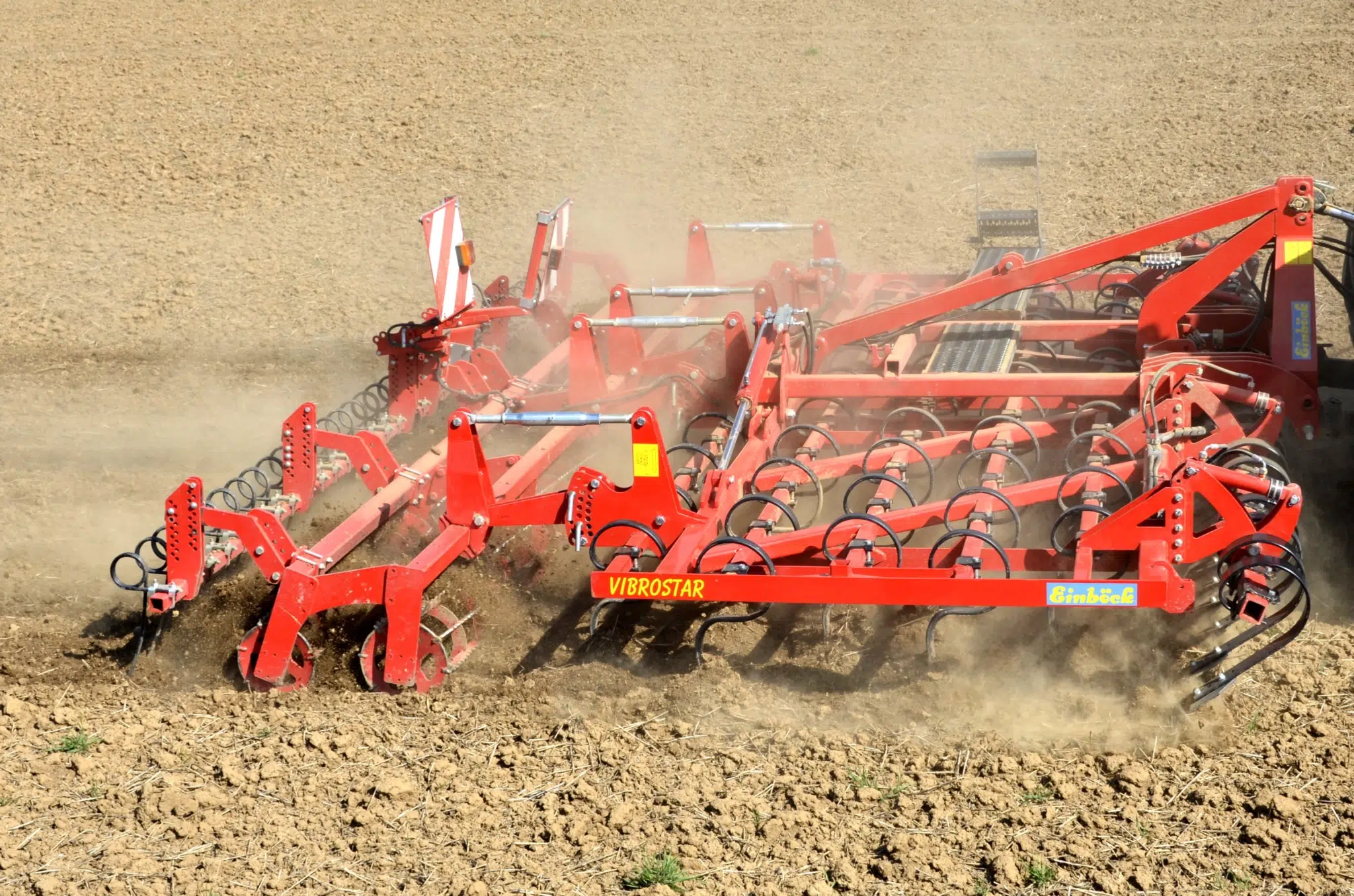

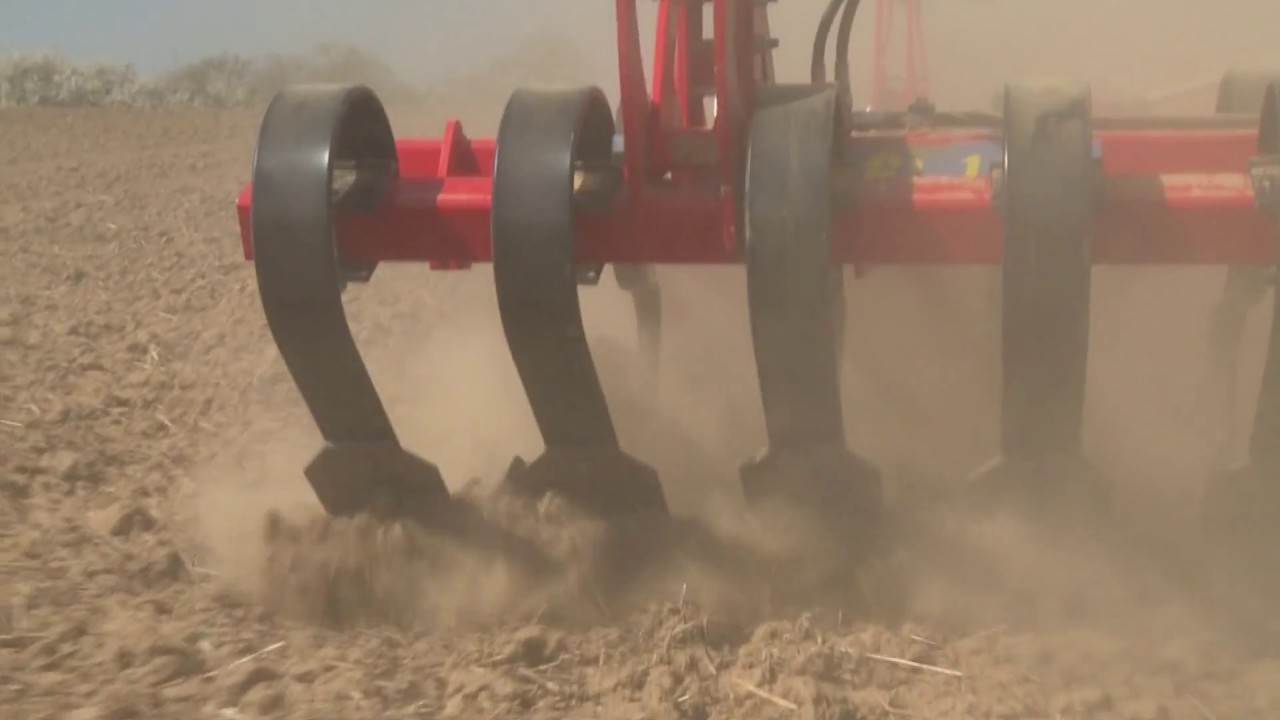

Even in heavy soil conditions, the cultivator with S-tines guarantees optimum penetration and an exact constant working depth. The vibrating spring tines cultivate and aerate the soil at any desired working depth. They vibrate as well in the direction of operation as laterally, thus ensures that the desired working depth is maintained at all times.

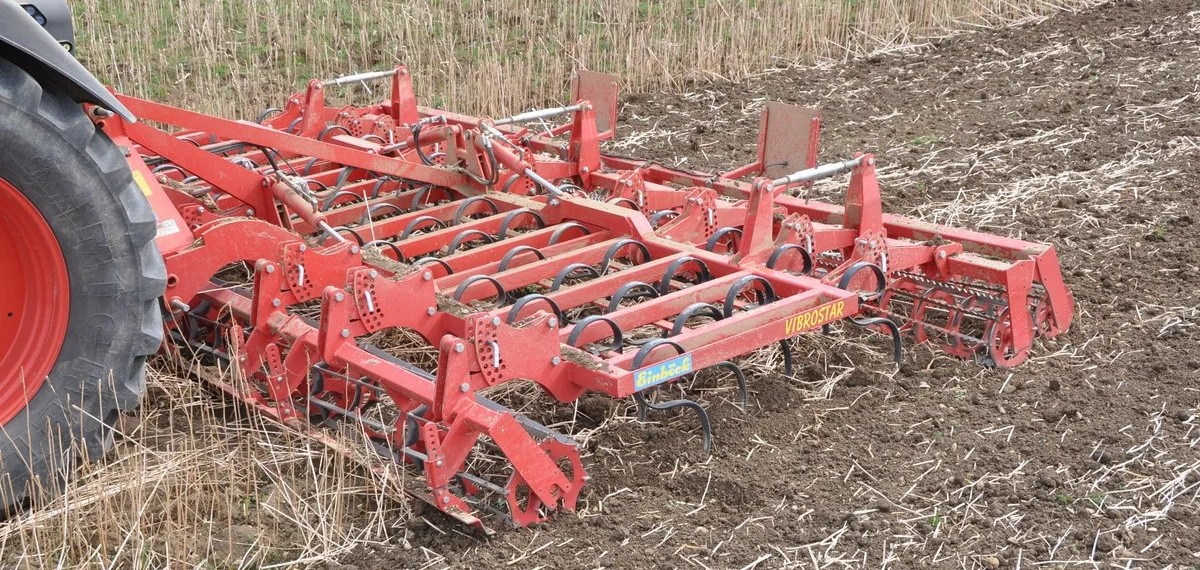

Flat seedbed preparation with a front roller
RP47: Ring packer roller ø 470 mm with spring stripper & following weeder tines 2 rows ø 10 mm
(only available for VIBROSTAR 5-rows)
Wedge-shaped reconsolidation on all soil types for a fine soil structure.

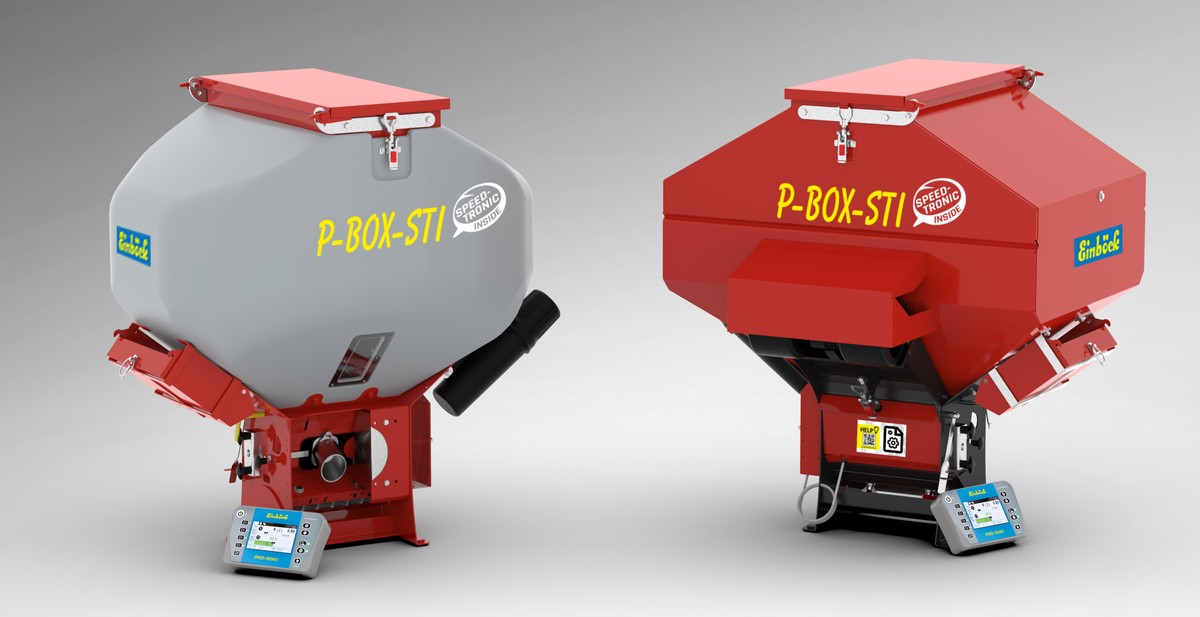

Uncomplicated seeding of catch crops

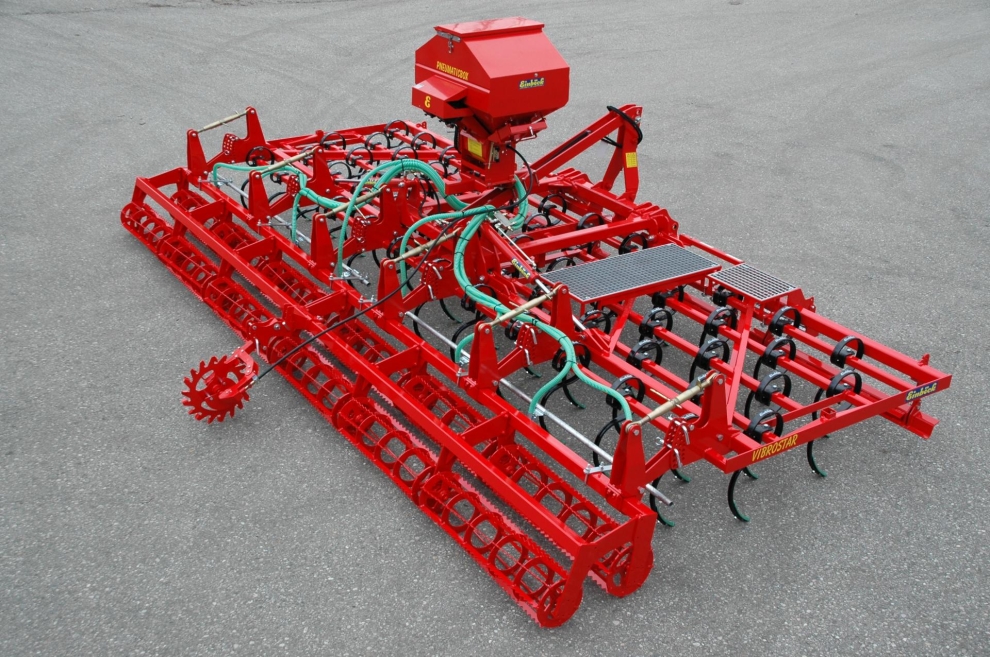

For seeding of catch crops, a pneumatic seeding box (P-BOX-STI) can be installed or retrofitted at any time. The distribution plates are factory-fitted in front of the trailing rollers (but can also be positioned differently on request).
