Self-propelled sprayer HARDI ALPHA TITANIUM line
Self-propelled sprayers with tank capacity 5100 litres and different option for choosing the type of booms.
Inquiry
Description

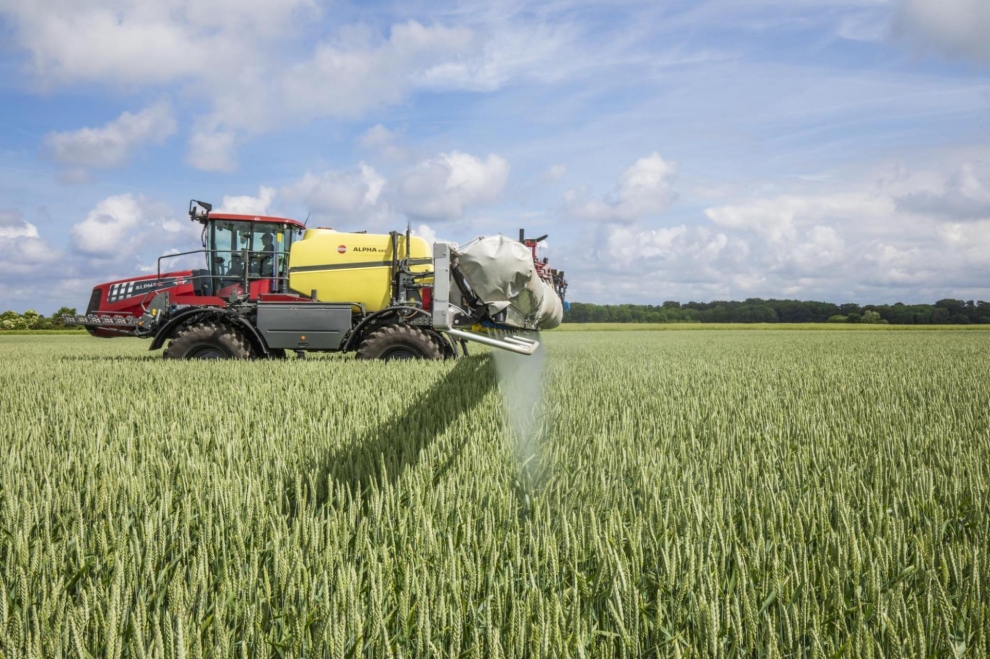

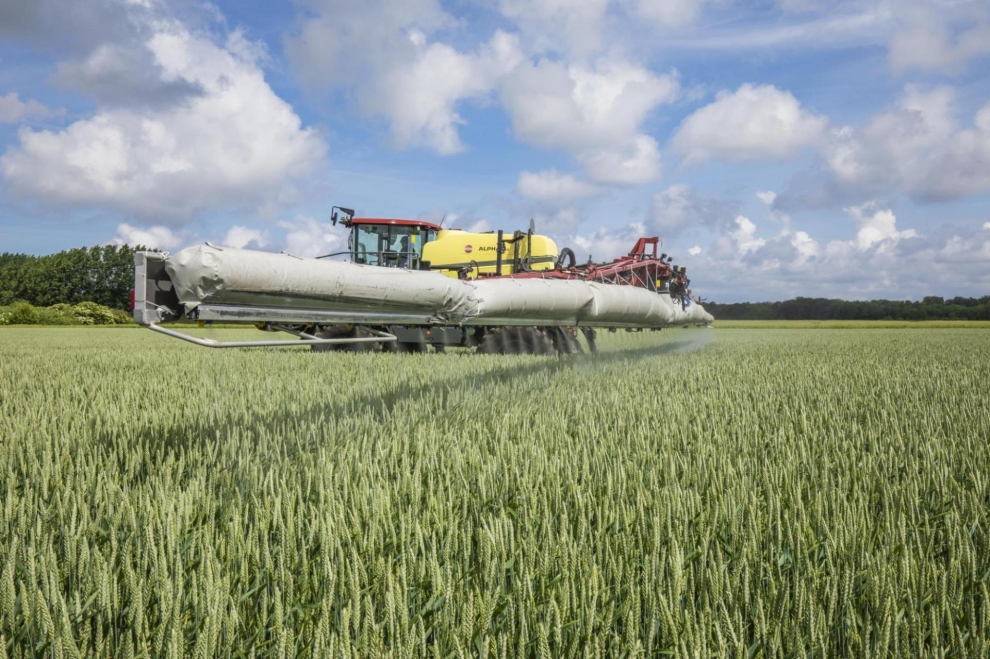

The ALPHA TITANIUM line is made for every spray task
This self-propelled sprayer is optimised for capacity and advanced performance at an affordable price. A range of intelligent features and equipment, such as automatic height control, track width adjustment and floating suspension, guarantees application precision and speed. Everything is controlled from the comfort of the EvoCab.
With its state-of-the-art interior, superior visibility and intuitive operator interface, the cab is designed with comfort, productivity and safety in mind. From the cab’s excellent air quality to the lower-than-average consumption of both fuel and chemicals, we commit to protecting the farmer and the environment.
Advantages

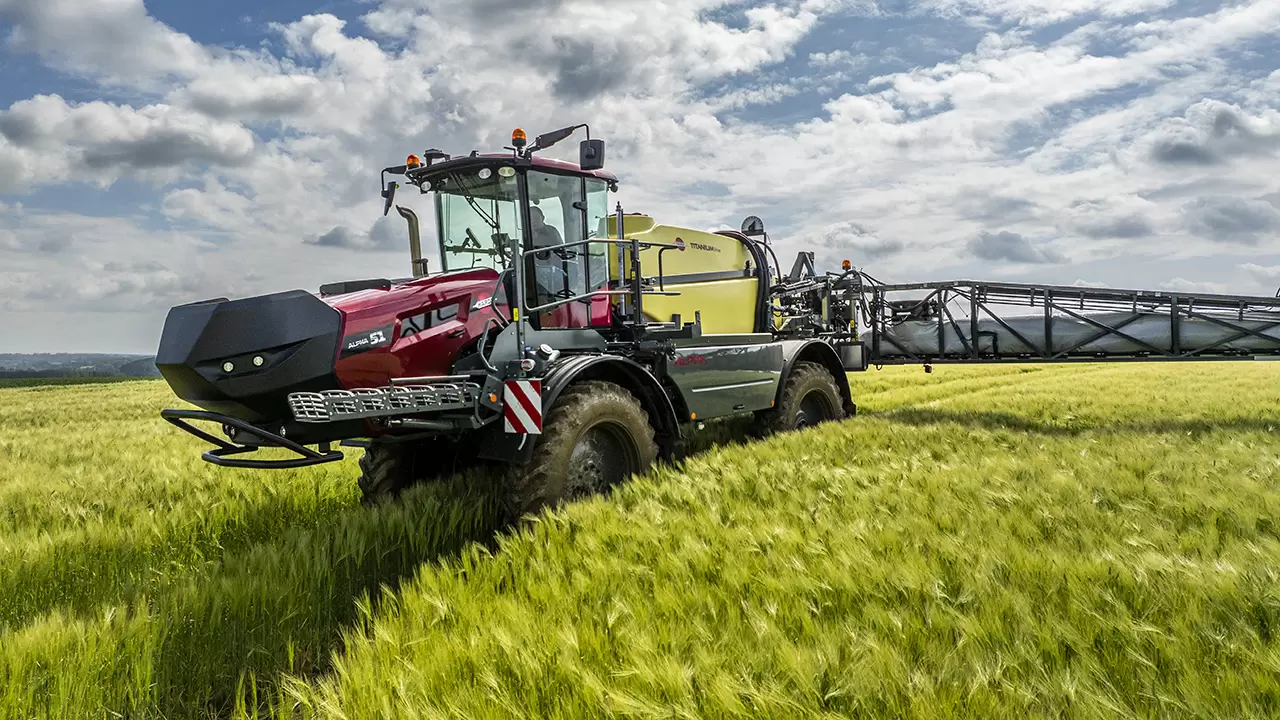

Hardi Alpha comes with a range of high-tech features for precise and easy operation:
- Automatic section control with GPS receiver for free signal;
- Automatic boom levelling system with 3 ultrasonic sensors - copies negative slopes;
- Electric adjustment of the air jet angle and nozzles when spraying with air assistance;
- Autopilot system for free signal;
- Self-filling system with 5 m 3" hose;
- Front and rear wheel monitoring camera with separate 9" display.

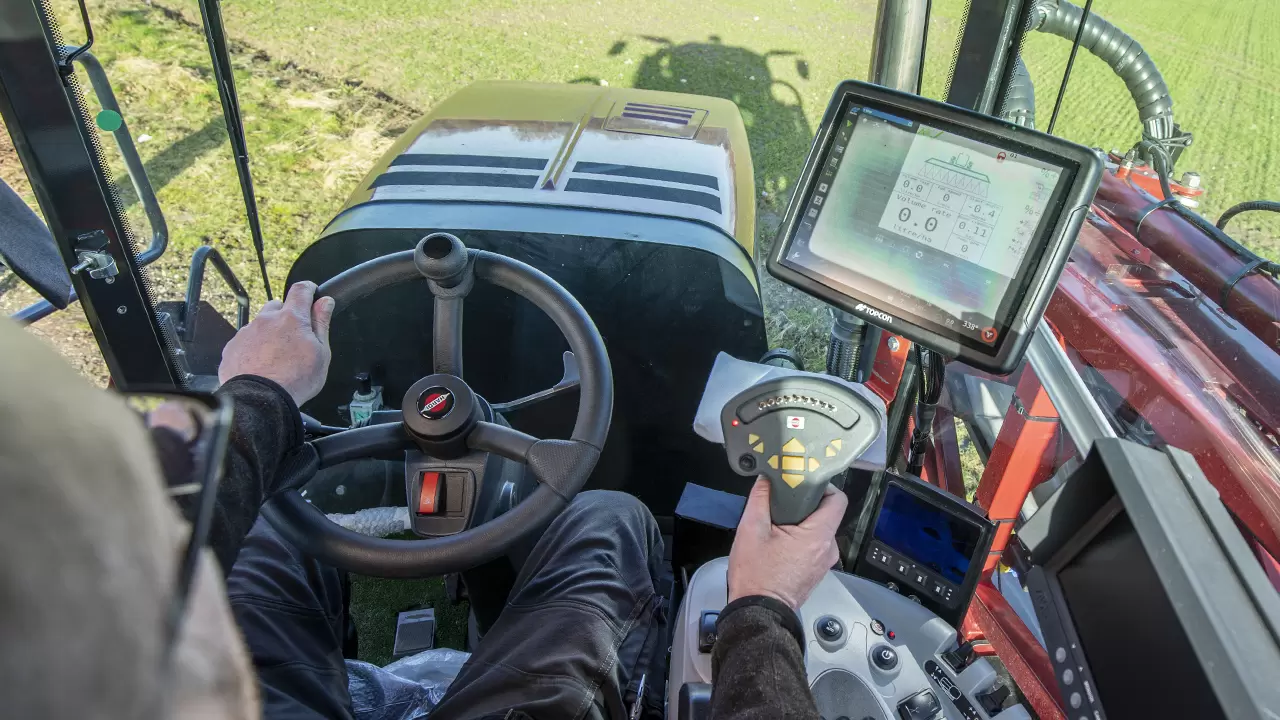

Operate all spray and hydraulic functions directly from the cab with the right hand located SprayCenter
The ALPHA TITANIUM line is one of the most versatile self-propelled sprayers with large capacity on the market.

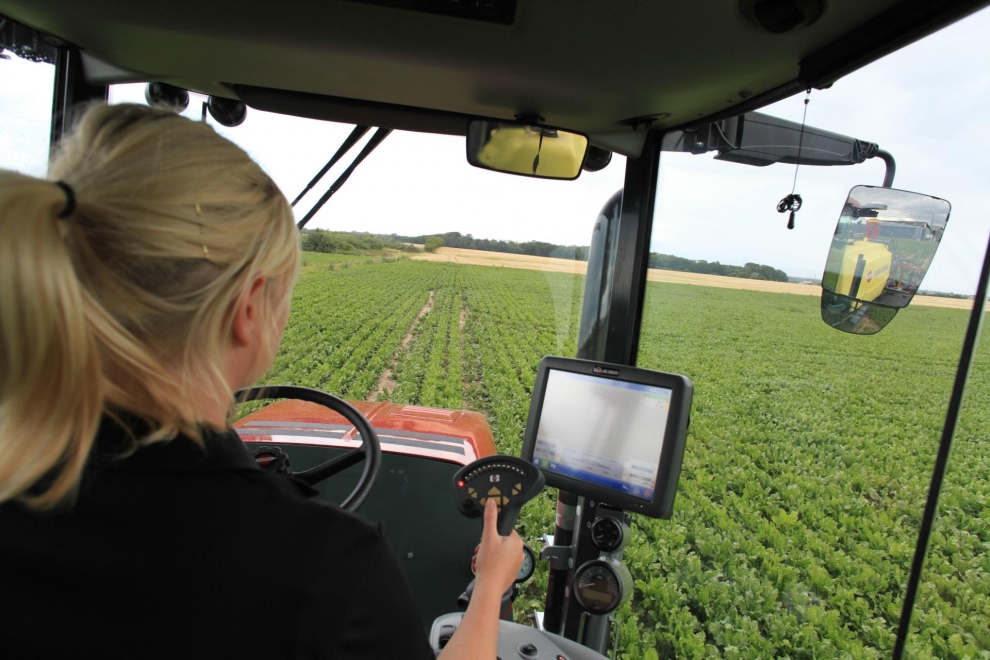

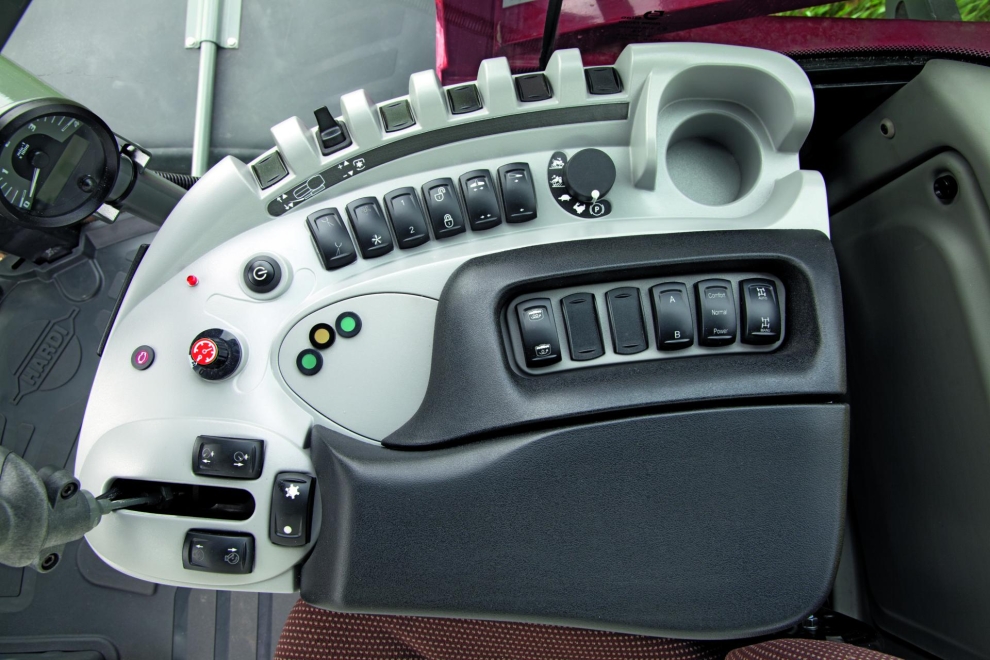

All spraying and hydraulic functions are controlled entirely from the EvoCab cab. The main functions are located in an easily accessible place on the SprayCenter, mounted to the right of the seat, while the secondary switches are grouped directly above the operator's head.

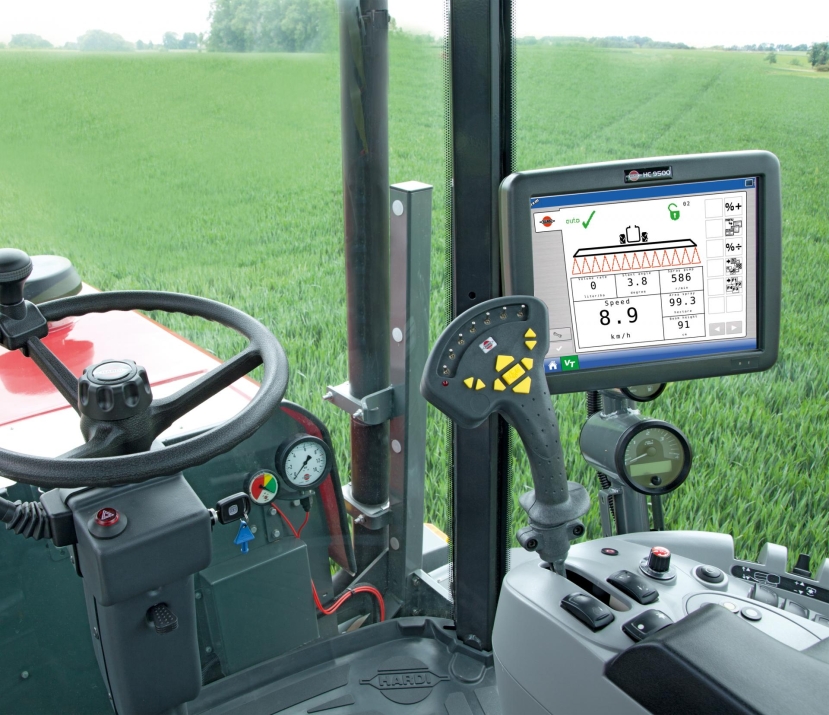

The SprayCenter also combines the multifunctional HARDI Grip joystick with the ISOBUS HC 9700 12.1-inch touchscreen controller. By integrating all important information on a single screen – with a split-screen mode allowing simultaneous viewing of different aspects of spraying or other simultaneous operations – the operator is provided with a complete overview at all times.

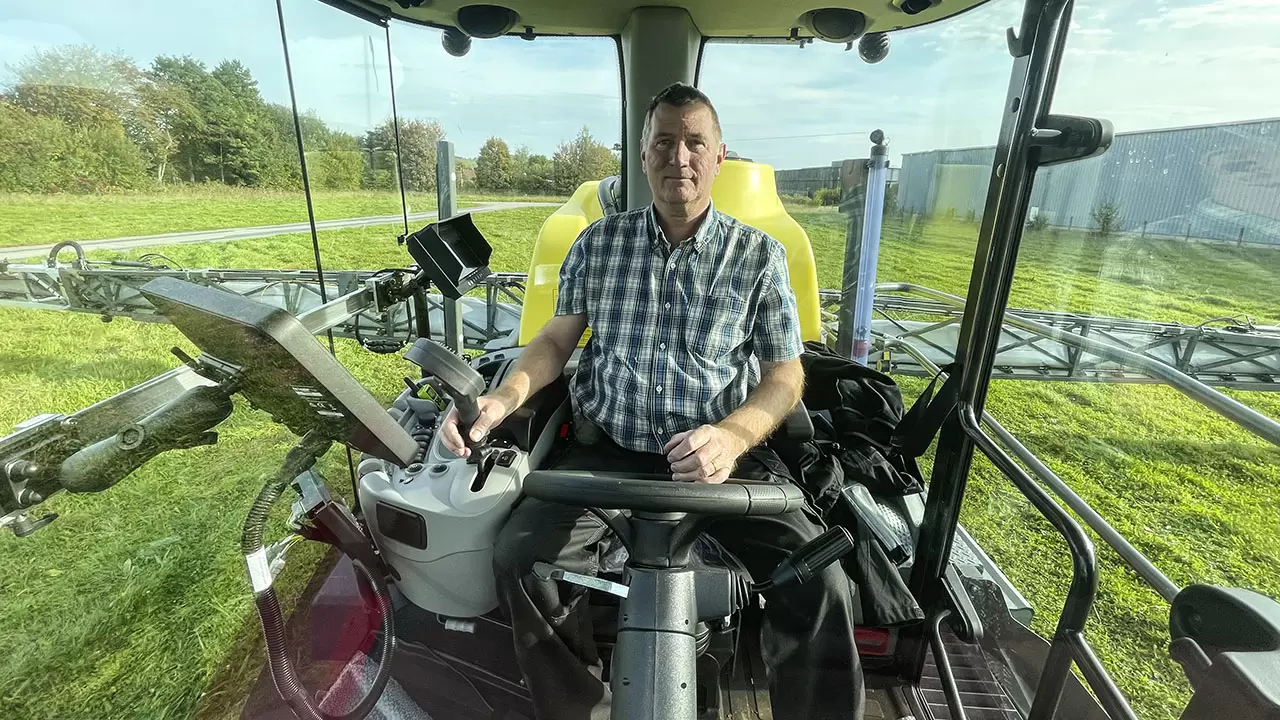

More than 335° unobstructed panoramic overview, while ensuring the highest safety
HARDI’s main focus in developing the state-of-the-art EvoCab has been ergonomics. All features of the spacious cab – from the comfortable seat to the operator-friendly SprayCenter controller – are designed for maximum operator comfort.
The unique 3-pillar cab design ensures excellent visibility. Tinted safety glass all around, even at the rear of the cab, provides the operator with more than 335° unobstructed panoramic overview of operations, including clear lines of sight to the boom.

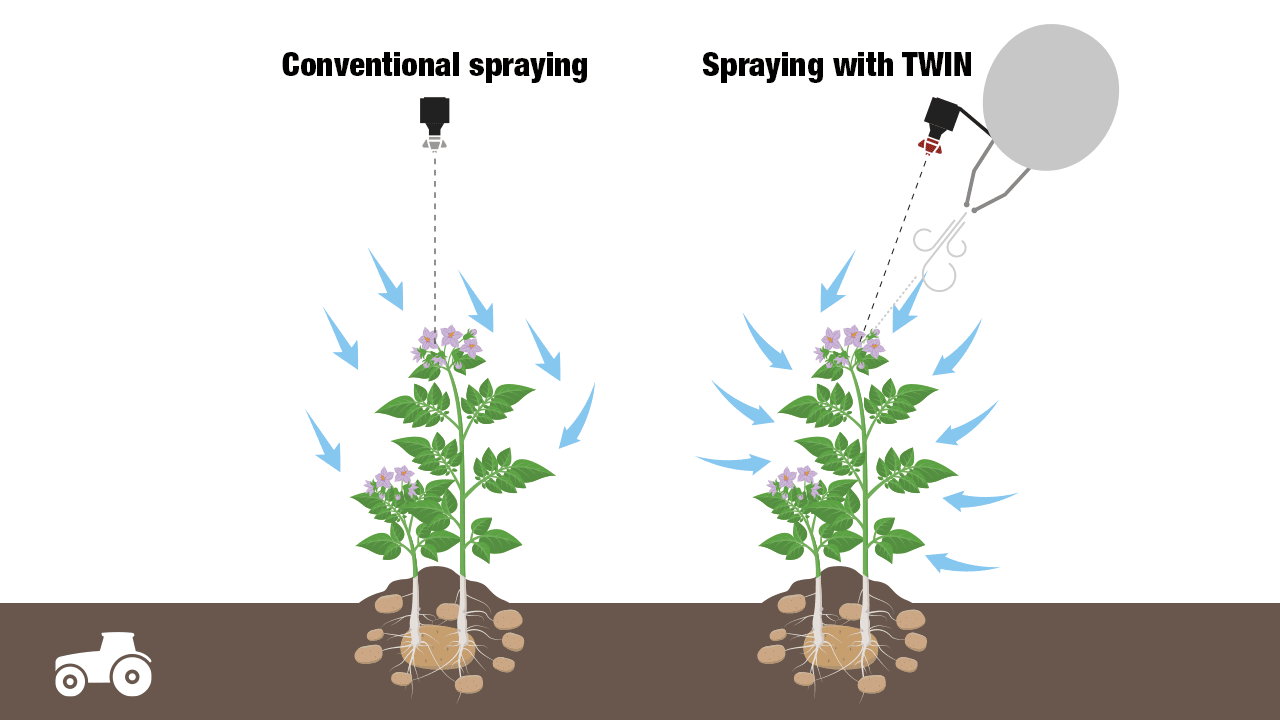

Lowering the consumption of plant protection product up to 30% – and reducing drift by an astonishing 80% at the same time

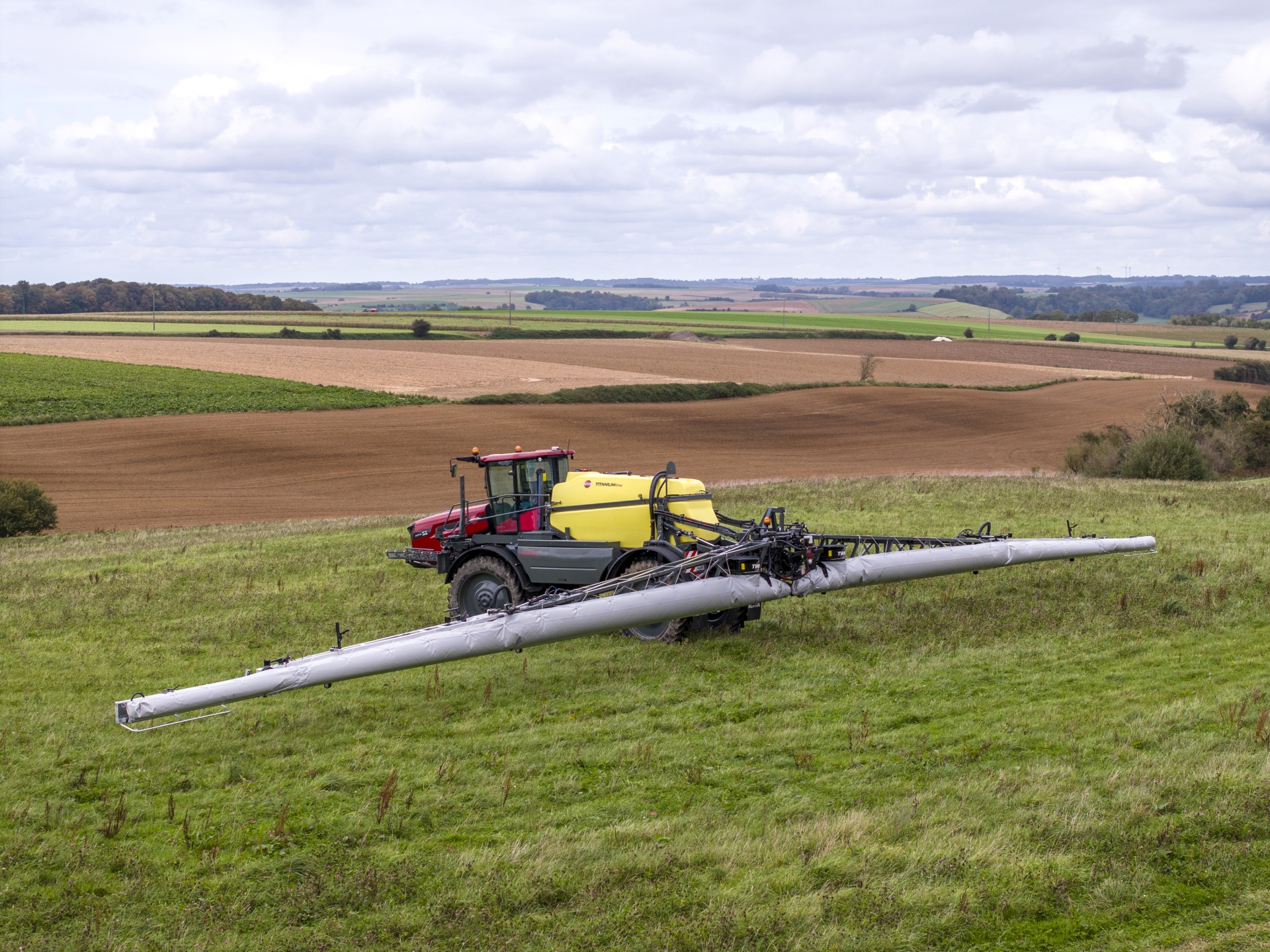

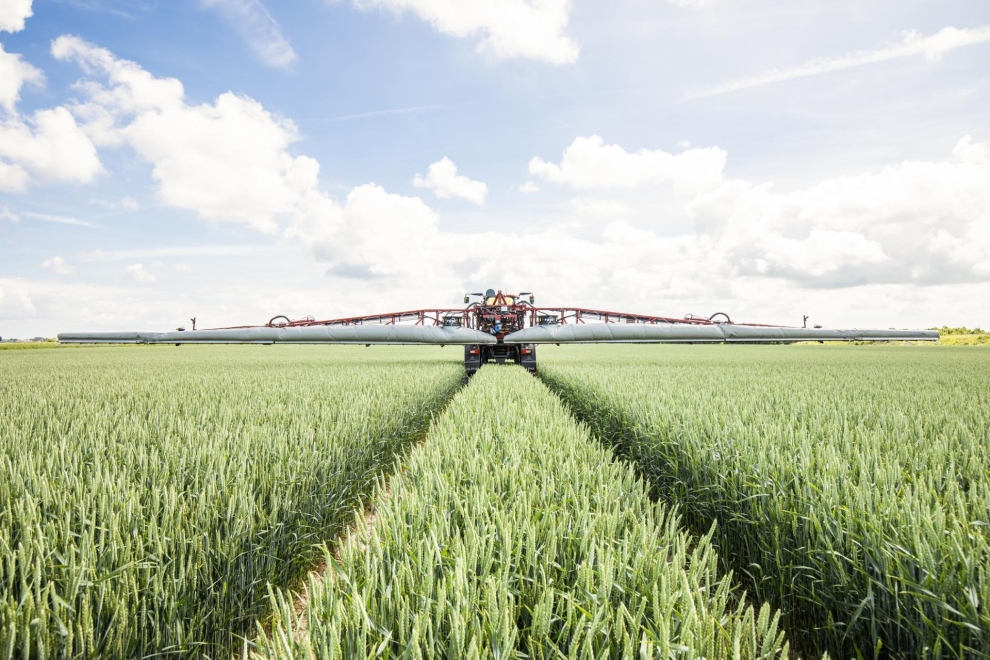

The TWIN FORCE air-assisted boom uses the world's best spray control system. Using an adjustable air curtain to entrain and direct the spray, TWIN FORCE can reduce drift by an astonishing 80%. The result is almost complete elimination of plant protection product loss or contamination of nearby areas.
TWIN FORCE features:
- Increases spray capacity by at least 100%
- Reduces drift by up to 80%
- Saves plant protection products by up to 30%
- Saves water by at least 50%
- Improves crop penetration and coverage
- Improves spraying economy
- Faster spraying speeds
- Optimal field working time
- Over 35 years of experience
Technical Data
| ALPHA TITANIUM line | 4200 | 5100 | |
|---|---|---|---|
| Tanks | Main tank, 4200 l Nominal (Full 4500 l) | ✔ | X |
| Main tank, 5100 l Nominal (Full 5400 l) | X | ✔ | |
| RinseTank 600 l | ✔ | ✔ | |
| CleanWater Tank 15 l | ✔ | ✔ | |
| TurboFiller 35 l | ✔ | ✔ | |
| Frame | Coil spring chassis suspension | ✔ | X |
| FloatRide chassis suspension | ➕ | ✔ | |
| Tarpaulin shield under frame | ✔ | ✔ | |
| ParaLift | ✔ | ✔ | |
| Hydraulic moving footbridge to minimise transport width | ✔ | ✔ | |
| Pack 10 LED lights on Cab, Center section and WorkZone | ➕ | ➕ | |
| Pumps | Pump 464/10, 280 l/min | ✔ | ✔ |
| Pump 464/12, 334 l/min | ➕ | ➕ | |
| Filling capacity water, 490 l/min | ✔ | ✔ | |
| Filling capacity TurboFiller, 120 l/min | ✔ | ✔ | |
| Boom | TWIN FORCE 18-36 m | (✔) | (✔) |
| DELTA FORCE 24-39 m | (✔) | (✔) | |
| ALU 24-44 m | (✔) | (✔) | |
| Liquid system | EFC | ✔ | ✔ |
| DynamicFluid4 | ✔ | ✔ | |
| AutoSelectDuo | ➕ | ➕ | |
| PrimeFlow (not for ALU boom) | ➕ | ➕ | |
| Valves | SmartValves | ✔ | ✔ |
| FastFiller | ✔ | ✔ | |
| AutoFill, AutoWash, AutoAgitation | ➕ | ➕ | |
| Filters | EasyClean filter | ✔ | ✔ |
| Self-cleaning / Cyclone filter | ✔ | ✔ | |
| Electronics | HC 9700 | (✔) | (✔) |
| Pressure sensor on the boom | ✔ | ✔ | |
| AGM-1 antenna for AutoSectionControl and manual steering | (✔) | (✔) | |
| AGI-4 antenna for AutoSectionControl and AutoSteering | ➕ | ➕ | |
| Trimble ready ISOBUS FMX/GFX for ASC and AutoPilot | ➕ | ➕ | |
| AutoTerrain / ActiveSlant | ➕ | ➕ | |
| Camera (1 to 4) | ➕ | ➕ | |
| Engine and Drive train | 6 cylinders Deutz 160 kW (217 hp) Tier 3a, not for EU | ➕ | X |
| 6 cylinders Deutz 180 kW (245 hp) Tier 4 final – Stage V | ✔ | ✔ | |
| EcoDrive Hydrostatic 4-wheel transmission 40 km/h | ✔ | ✔ | |
| EcoDrive Hydrostatic 4-wheel transmission 50 km/h | ➕ | ➕ | |
| Fuel tank 400 l | ✔ | ✔ | |
| 4-wheels steering | ✔ | ✔ | |
| Mechanical track adjustment, 40 cm slidding range | ✔ | ✔ | |

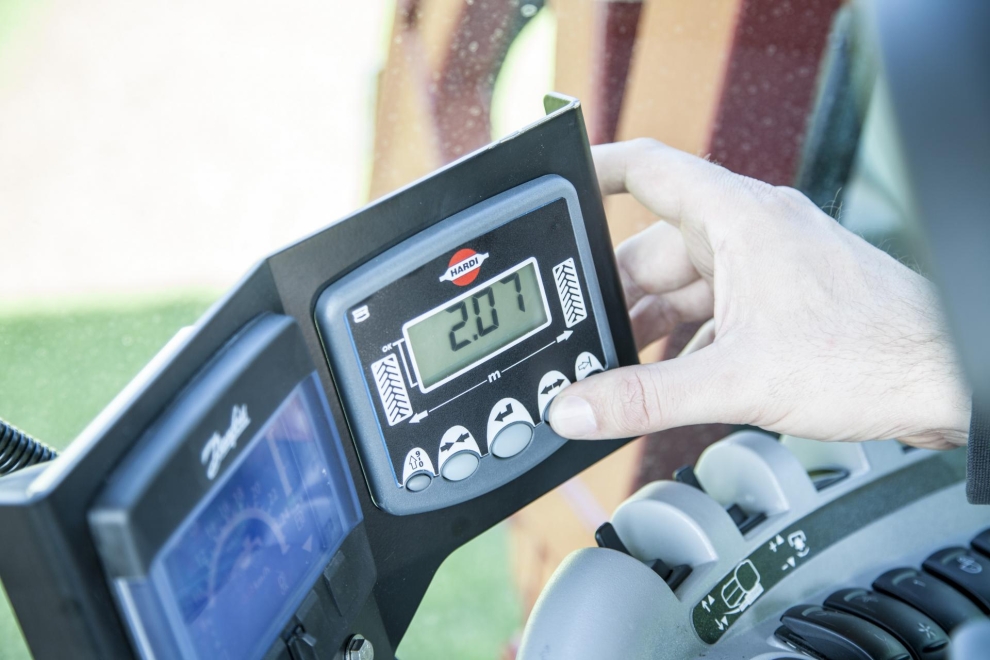

| Hydraulic Track Adjustment (HTA) – electronic control | ➕ | ➕ | |
| Version S 180 to 280 cm (only with FloatRide) | |||
| Version M 220 to 320 cm (only with FloatRide) | |||
| Mudguards | ✔ | ✔ | |
| Measurements and weight | Turning radius 200 cm track width (middle of chassis), cm | 491 | 556 |
| Weight (basic machine, empty)*, kg | 11.220 | 11.950 | |
| (A) Total length*, m | 9.5 | 10.23 | |
| (B) Total height*, cm | 390 | 395 | |
| (C) Width with ALU boom (24-44 m), m | 2.55 | 2.55 | |
| (C) Width with DELTA FORCE boom (24-39 m), m | 2.55 | 2.55 | |
| (C) Width with TWIN FORCE boom (18-30 m), m | 3.00 | 3.00 | |
| (C) Width with TWIN FORCE 3.1 boom (32-36 m), m | 3.45 | 3.45 | |
| (D) Track width manual sliding axle** (380/90 R46), cm | 182-329 | 182-329 | |
| (D) Track width HTA axle** (380/90 R46) Version S 180 to 280 cm Version M 220 to 320 cm |
180-320 | 180-320 | |
| (E) Wheel base, cm | 370 | 430 | |
| (F) Clearance (380/90 R46), cm | 120/165 | 125/165 | |
