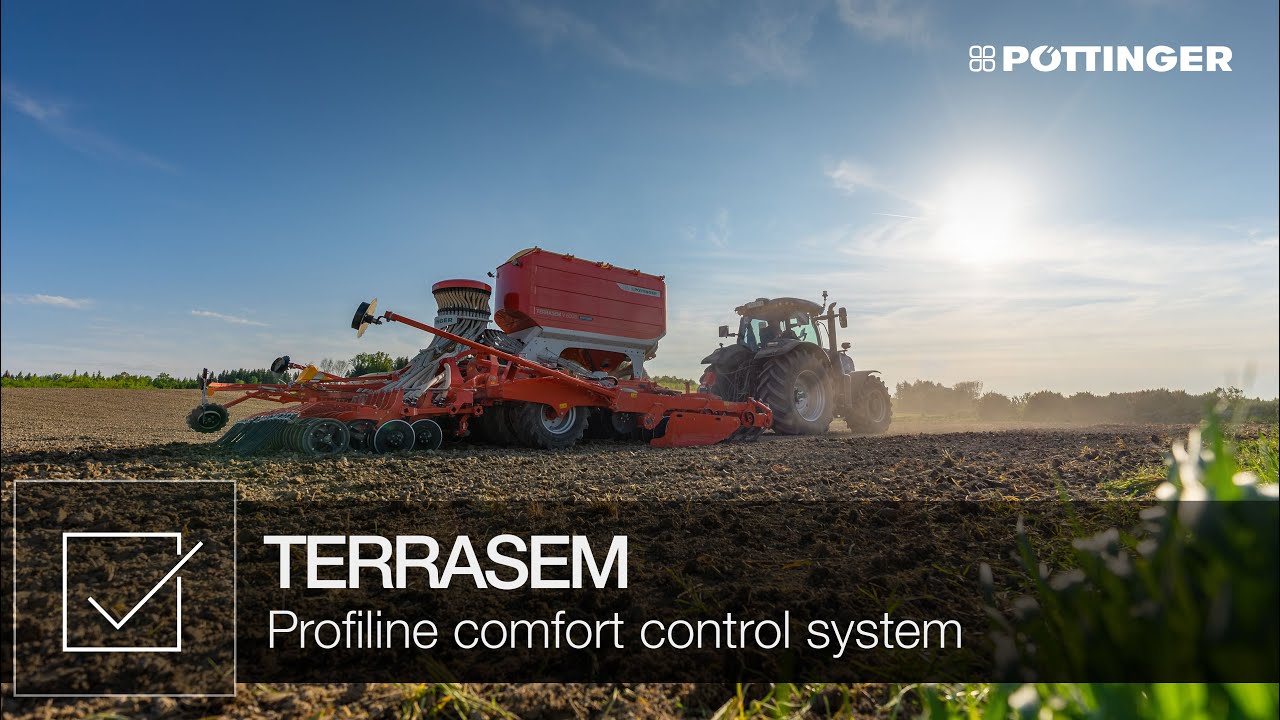

Universal seed drill Pöttinger Terrasem V

The rigid mulch seed drills from PÖTTINGER feature a two-row disc harrow for soil preparation. The transport width is the same as the working width (3.0 m or 4.0 m).

For the foldable mulch seed drills produced by PÖTTINGER, the three-part configuration ensures perfect ground contour following. The outer sections have a high degree of movement flexibility. To achieve a transport width of 3.0 m, the wings of the TERRASEM V models are folded.

The folding sections are loaded via nitrogen accumulators, ensuring even pressure distribution across the entire working width in every position.

• In TERRASEM mulch seed drills, soil preparation is carried out by a two-row disc harrow.
• The discs have a diameter of 510 mm, are mounted on rubber elements for overload protection, require no maintenance, and loosen and move the soil across the entire working width.
• An aggressive disc position ensures optimal soil penetration: +15° horizontal angle in the direction of travel and +7° vertical angle, creating an ideal seedbed with finely structured soil at seed level. Large amounts of crop residues are mixed into the soil while simultaneously reducing weed pressure.
• New! Reinforced disc mounts for reliable operation in all conditions.

• The proven dual disc seeding unit ensures ideal plant density

• Straight discs with a diameter of 380 mm create a perfectly even seedbed, while their maintenance-free bearings guarantee a long service life

• The discs are bolted to the hub and offset by 25 mm for easier and more aggressive penetration in heavy soils, requiring less pressure and reducing wear

• A spacing of 125 mm between the seeding discs promotes optimal plant development and suppresses weed growth

• Up to 120 kg pressure on the seeding discs and up to 180 kg on the fertilizing discs

• Four-point linkage between the seeding unit and the packer ensures optimal ground contour following, even in the most challenging conditions

• Press wheels ensure uniform seeding depth – each seeding disc is mounted on an independent parallelogram for excellent ground following, even at high working speeds

• Thanks to the maintenance-free design with rubber elements, the seeding units remain highly flexible and require no servicing

• Behind each seeding disc, a rubber roller closes the seed furrow and presses the soil over the seed

• The rubber rollers and large packer wheels are equipped with patented scrapers that prevent soil build-up, ensuring smooth operation even in wet conditions
