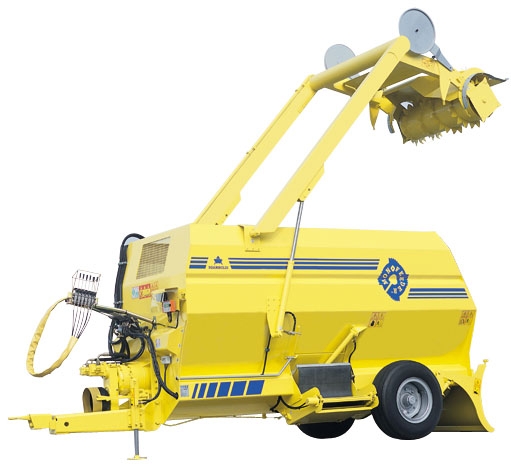

MONOFEEDER DF
TRAILED HORIZONTAL SINGLE AUGER WITH MILLING DEVICE – FROM 7 TO 22 m³
Description
All the advantages of the Monofeeder combined with a practical and efficient loading system to harness the full potential of the machine, even in small to medium-sized barns.
ALSO AVAILABLE IN A STATIONARY VERSION WITH AN ELECTRIC OR DIESEL ENGINE.
The system with a loading drum of the model DF can work with any products, mixing them evenly. Its rear shield allows to collect all the material from the ground, leaving it perfectly clean.
The technology of this efficient mono-feeder makes it one of the best selling and widely admired machines on the market.
LOADING SYSTEM
- The layout and shape of the conveyor and the loading system have been designed to remove any material perfectly
- Auger protection system
- Hydraulic heel for gathering products down to ground level
Capacity: from 7 to 26 cubic meters
Width: 190 to 275 cm
Length: 560 to 730 cm
Aggregation: for tractors from 50 to 180 hp

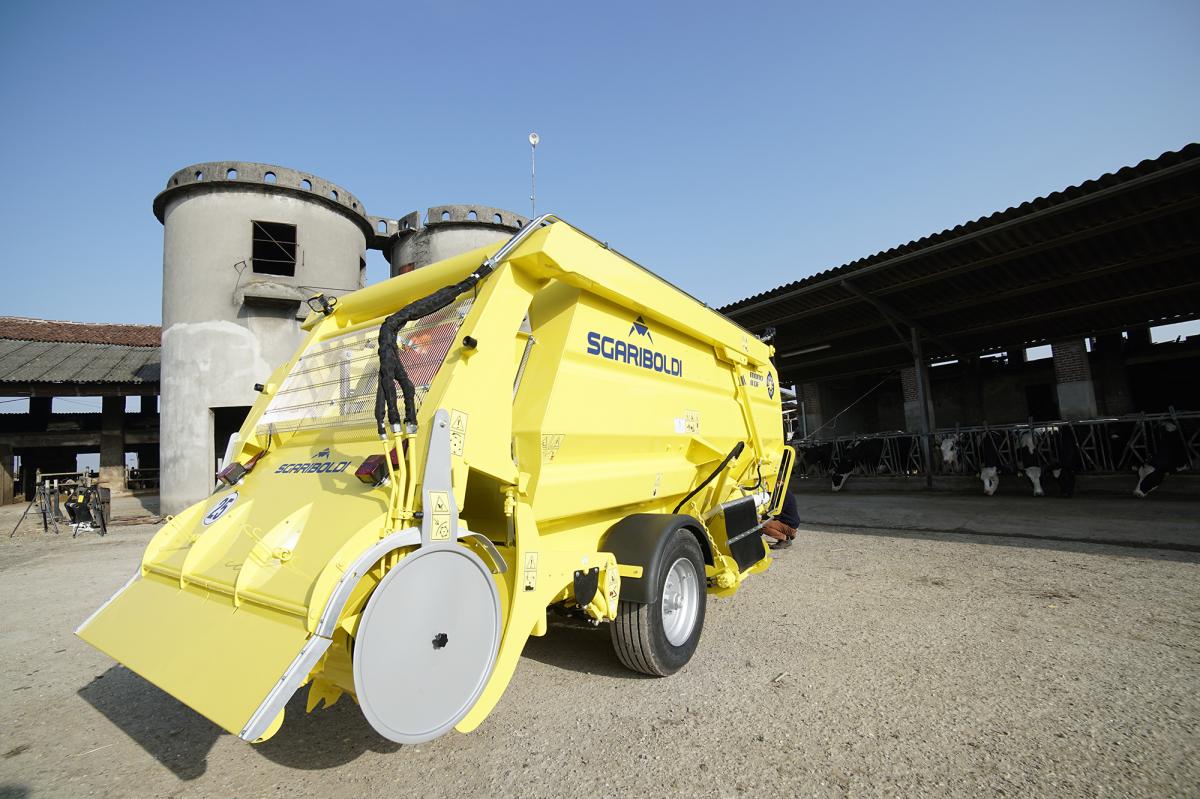

Advantages
Wide range of standard equipment
- Independent hydraulic system
- Electronic weighing system
- Mechanical parking brake
- Accurate and even discharge
- Counter blades to chop forage quickly

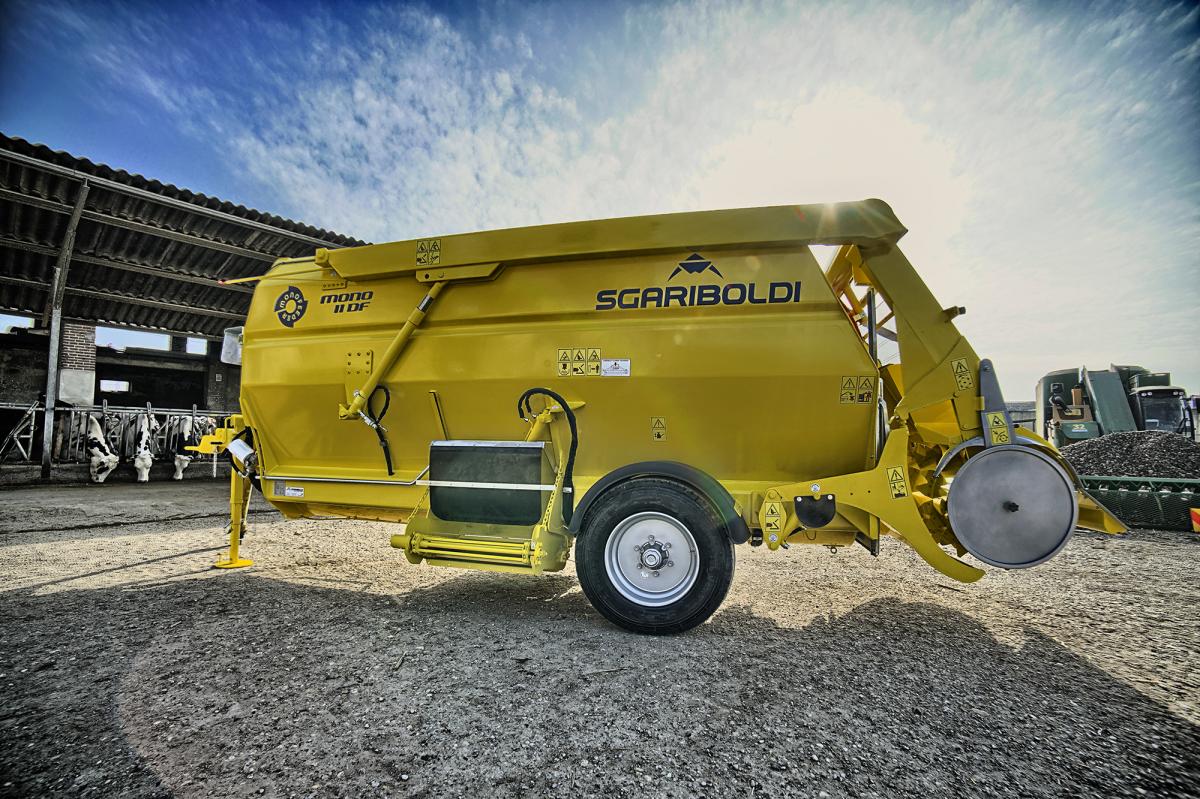

Machine Equipment MONO / DF
- Left side discharge
- Adjustable drawbar
- Remote controls by Bowden cables
- Mechanical parking brake
- Double self-contained hydraulic system
- PTO shaft
- Loading drum with double rotation
- Rear hydraulic shield
- Rear automatic safety guard
- Hand operated side foot
- Weighing system with not programmable monitor
Machine Equipment MONO / DF PLUS
- Left side discharge
- Auger reversing gearbox
- Adjustable drawbar
- Remote controls by Bowden cables
- Mechanical parking brake
- Double self-contained hydraulic system
- PTO shaft
- Loading drum with double rotation
- Rear hydraulic shield
- Rear automatic safety guard
- Hand operated side foot
- Weighing system with not programmable monitor
TWIN FLOW SYSTEM
A UNIQUE AND ORIGINAL PATENTED SYSTEM
This advanced cutting and mixing system, with a single large horizontal auger, guarantees maximum operational reliability, on one of the most compact machines on the market.
Using a single rotating component and eliminating gears and chains avoids the risk of a sudden breakdown, while also cutting consumption. This also means you save fuel and reduce the costs of maintenance and spare parts.
ONE OF THE MOST COMPACT DESIGNS ON THE MARKET
The shape of the tank – which is narrow and ultra low –facilitates access to even the tightest spaces. In short:
- FINAL PRODUCT QUALITY OPTIMISED
- HIGHLY RELIABLE OPERATION
- CONSISTENT COST REDUCTION
- MAXIMUM PROFITABILITY

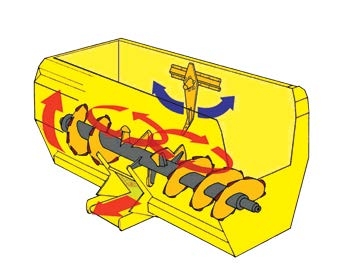

TWIN FLOW SYSTEM
HOW IT WORKS
Working in the special mixing tank with different volumes, the single auger with opposing screws forces the materials into a dynamic twin flow from the front and rear towards the centre of the tank.
WIDE AUGER SPIRAL FITTED WITH KNIVES
A design exclusive to Sgariboldi, ensure movement in two rotating flows. This twin flow helps the products to mix in a single process, ensuring superior cutting capacity and efficiency, and creating an exceptionally uniform mixture.
REDUCED MIXING TIMES
Inside the tank, a dividing arm (or “deflector”) ensures the correct flow of the materials, reducing the mixing time and eliminating stagnation points which are common with many multi-auger machines.
Technical parameters
MONO / DF
| 7 DF | 11 DF | 14 DF | 17 DF | |
|---|---|---|---|---|
| Capacity (m³) | 7 | 11 | 14 | 17 |
| Lenght (mm) | 6400 | 7000 | 7200 | 7500 |
| Width (mm) | 1950 | 2050 | 2350 | 2350 |
| Height (mm) | 2200 | 2450 | 2650 | 2750 |
| Height of lowered versions (mm) | on request | on request | on request | on request |
| External track (mm) | 1700 | 1850 | 2200 | 2200 |
| Wheels | 10.0/75-15.3 | 285/70-19.5 | 15/-22.5 | 15/-22.5 |
| Auger diameter (mm) | 670 | 770 | 870 | 870 |
| Discharghe width (mm) | 800 | 800 | 800 | 800 |
| Power requirement (HP) | 60 | 80 | 90 | 100 |
| Weight (Kg) | 3300 | 4100 | 5000 | 5500 |
MONO / DF PLUS
| 17 DF PLUS | 20 DF PLUS | 22 DF PLUS | |
|---|---|---|---|
| Capacity (m³) | 17 | 20 | 22 |
| Lenght (mm) | 7500 | 7700 | 8200 |
| Width (mm) | 2350 | 2600 | 2600 |
| Height (mm) | 2750 | 2950 | 2950 |
| Height of lowered versions(mm) | on request | on request | on request |
| External track (mm) | 2200 | 2450 | 2450 |
| Wheels | 15-22.5 | 15-22.5 | 15-22.5 |
| Auger diameter (mm) | 960 | 1060 | 1060 |
| Discharge width (mm) | 1000 | 1000 | 1000 |
| Power requirement (HP) | 100 | 110 | 120 |
| Weight (Kg) | 5500 | 6500 | 7000 |
