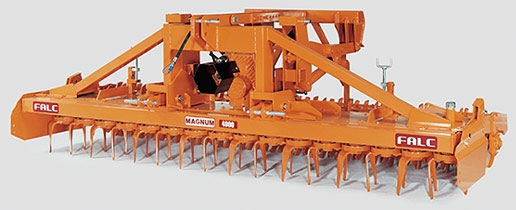

Power harrows MAGNUM
TRACTORS FROM 140 TO 250 HP
WIDTH OF WORK FROM 3000 TO 5000 mm
Print
Description
Technical parameters
Photos
Description
Power Harrows with tapered roller bearings for the preparation of the soil to the sowing, for medium-large farms; for 140 to 250 HP tractors
The series comes in 8 models, three of which (with P index), are convertible - MAGNUM 3000, MAGNUM 3500, MAGNUM 4000, MAGNUM 4500, MAGNUM 5000, MAGNUM 4000P, MAGNUМ 5000P and MAGNUМ 6000P.
Working width: from 250 to 600 sm
V.О.М.: from 540 tо 1000 rev./min.
Required tractor power: from 100 to 240 hp
Weight: from 1730 tо 3650 kg
Technical parameters
| Serie | A mm | kg | N. | HP |
|---|---|---|---|---|
| MAGNUM 3000 | 3.115 | 1.730 | 12 | 140-250 |
| MAGNUM 3500 | 3.607 | 2.020 | 14 | 140-250 |
| MAGNUM 4000 | 4.099 | 2.310 | 16 | 140-250 |
| MAGNUM 4500 | 4.591 | 2.600 | 18 | 140-250 |
| MAGNUM 5000 | 5.083 | 2.890 | 20 | 140-250 |

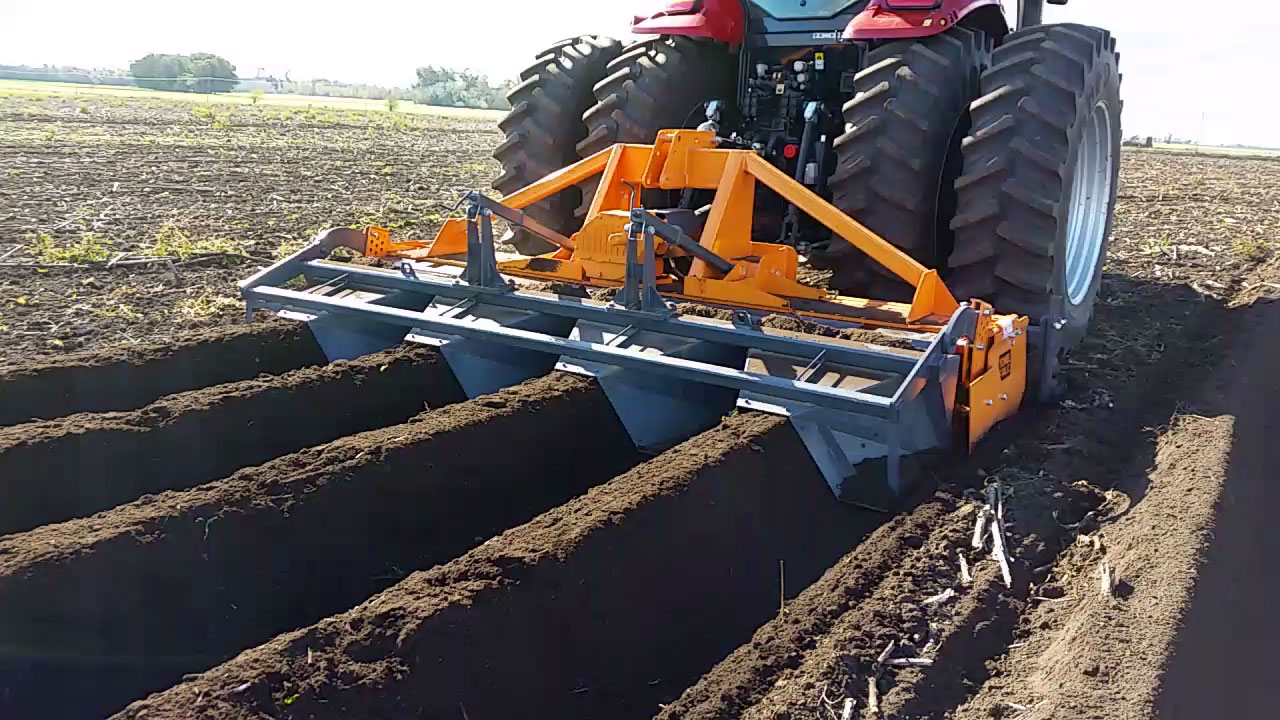

Photos
