New product
FOX D Short combination cultivators with harrow discs
Short combinations with shallow tines
Inquiry
Description
Our FOX D compact combination enables smooth-running, fuel-saving seedbed preparation. Combined with a PÖTTINGER seed drill, this implement becomes a cost-effective seed drill combination.
Advantages
The best working results
The key feature of our FOX compact combination is its design. The lightweight construction, for smaller tractors starting at 80 Hp, enables high output and optimum seedbed preparation at the same time.
Minimal wear and maintenance requirement
The FOX is equipped with discs as tillage tools that deliver impressive performance because they are robust and rotate. The 3 mm-thick discs represent the optimum mix of lightness and durability, plus they are reliably and permanently protected against overloading.
Cost effective
The FOX compact combination can be used flexibly on fields that have been ploughed or stubble cultivated. The discs operate reliably in site conditions with medium levels of organic matter. Because the discs have a small diameter, they rotate at high speed to deliver intensive mixing and create a high quality seedbed structure. The short and compact design ensures an optimum centre of gravity, also when used in combination with a PÖTTINGER implement-mounted seed drill. Ultimately, this machine achieves higher working speeds, smoother operation and lower variable costs. The advantages of low wear and low draft make the FOX compact combination an extremely cost effective all-rounder.
High output seed drill combination
FOX compact combinations are not only impressive when operated solo but also show their strengths in combination with all PÖTTINGER implement mounted seed drills. You can use your FOX compact combination together with VITASEM, AEROSEM or TEGOSEM. Mounting and removing the drill using the rear roller is quick and easy, without the need for tools.
The specified working width of three metres is precisely maintained and is the width actually cultivated with FOX compact combinations. When used in combination with a seed drill, all the seed coulters always run on cultivated soil - even on the outermost edges.
This lightweight linkage-mounted machine is ideal for use in light to medium soils. Thanks to the scalloped discs and the large inter row spacing, the compact combination is suitable for mulch drilling conditions. Combined with a seed drill, the FOX compact combination demonstrates yet another talent.
Harrow discs
The best working results
Because the discs rotate and have a diameter of 410 mm, the machine needs less tractive power and consumes less fuel as result. Thanks to the aggressive soil entry angle of 15 ° and a disc inclination of 7 °, the soil is intensively loosened, mixed and levelled. The discs on the first row are arranged to face in the opposite direction to the discs on the second row. This ensures smooth operation without crabbing. The large row spacing of 510 mm provides excellent clearance, even with high volumes of organic matter. Optional track eradicator tines thoroughly loosen the tractor wheel marks to enable perfect mixing at a consistent working depth.
Minimal wear and maintenance requirement
- The twin race taper bearings are sealed and as a result 100% maintenance-free.
- A labyrinth seal with metal cover provides the best protection for the bearings.
- The disc elements are mounted on the frame in pairs using clamping brackets.
- Rubber elements also provide overload protection by allowing the disc arm to ride upwards to roll over stones.
Rollers - Your tailor made solution
PÖTTINGER offers a wide range of rear rollers for perfect working results with the desired tilth in any type of soil.
The whole range of rollers features precision manufacturing and robust design engineering. The scrapers can be adjusted centrally by rotating the scraper tube, or individually. They can be pivoted away for easier cleaning. To maximize service life, the scraper plates are reversible.
Technical parameters
| Параметър | FOX 3000 D |
|---|---|
| Working width | 3 m |
| Working depth | 3 – 8 cm |
| Spacing | 13 cm |
| Power requirement | 75 – 180 hp |
| Under frame clearance | — |
| Gang spacing | 510 mm |
| Number of discs | 22 pcs. |
| Disc diameter | 410 mm |
| Weight (basic) | 680 kg |
| Cage roller Ø 420 mm | 195 kg |
| Cage roller Ø 540 mm | 325 kg |
| Toothed packer roller Ø 420 mm | — |
| Toothed packer roller Ø 500 mm | 525 kg |
| Toothed packer roller Ø 500 mm (coated) | 528 kg |
| Toothed packer roller Ø 550 mm | 547 kg |
| Toothed packer roller Ø 550 mm (coated) | 558 kg |
| Crumbling packer roller Ø 525 mm (coated) | 520 kg |
| Prism packer roller Ø 500 mm (12,5 cm) | 560 kg |
| Prism packer roller Ø 600 mm (12,5 cm) | — |
| Prism packer roller Ø 500 mm (15 cm) | 530 kg |
| Prism packer roller Ø 600 mm (15 cm) | — |
| Pack ring roller Ø 550 mm (coated) | 570 kg |
| Rubber packer roller Ø 585 mm (coated) | 610 kg |
Photos

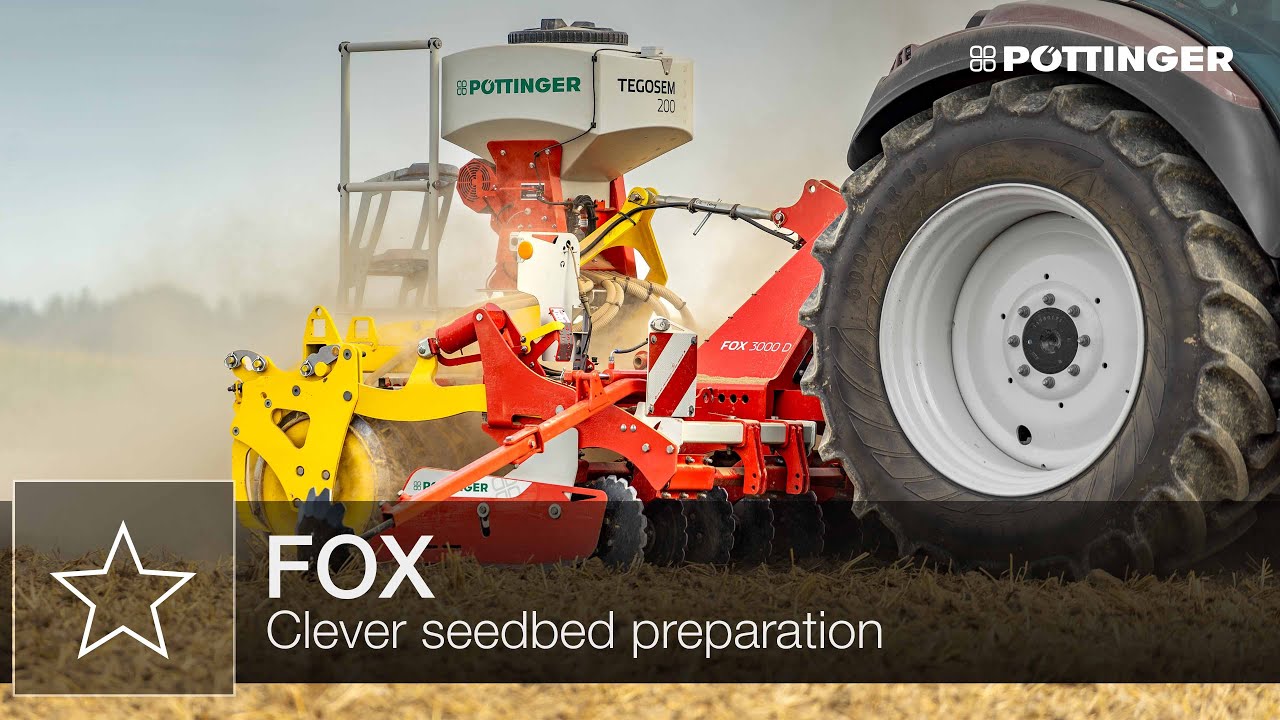

Video
