Power harrows FOX
TRACTORS FROM 70 TO 120 HP
WIDTH OF WORK FROM 2500 TO 3000 mm
Print
Description
Technical parameters
Photos
Description
Power harrows for the preparation of the soil to the sowing and also for vineyards, orchards and horticulture.
The series comes in two models - FOX 2500 and FOX 3000.
Working width: from 256 to 305 sm
V.О.М.: from 540 tо 1000 rev./min.
Required tractor power: from 60 to 120 hp
Weight: from 945 tо 1060 kg
| Model | FOX |
| Working width, sm. | 256 - 305 |
| V.О.М., rev./min. | 540 - 1000 |
| Required power, hp | 60 - 120 |
| Weight, kg. | 945 - 1060 |
Technical parameters
| Serie | A mm. | Kg. | N. | HP |
|---|---|---|---|---|
| Fox 2500 | 2.549 | 1.070 | 10 | 70-120 |
| Fox 3000 | 3.049 | 1.240 | 12 | 70-120 |

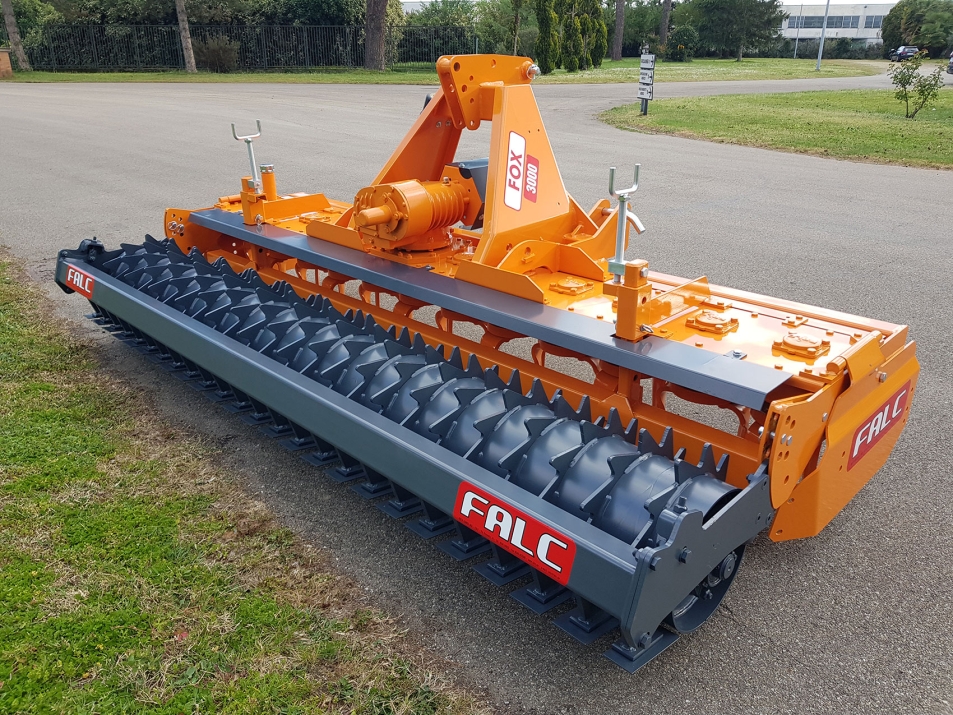

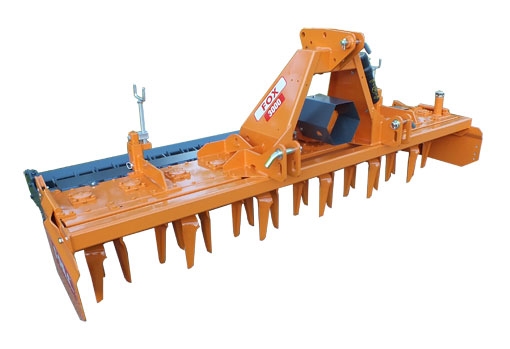

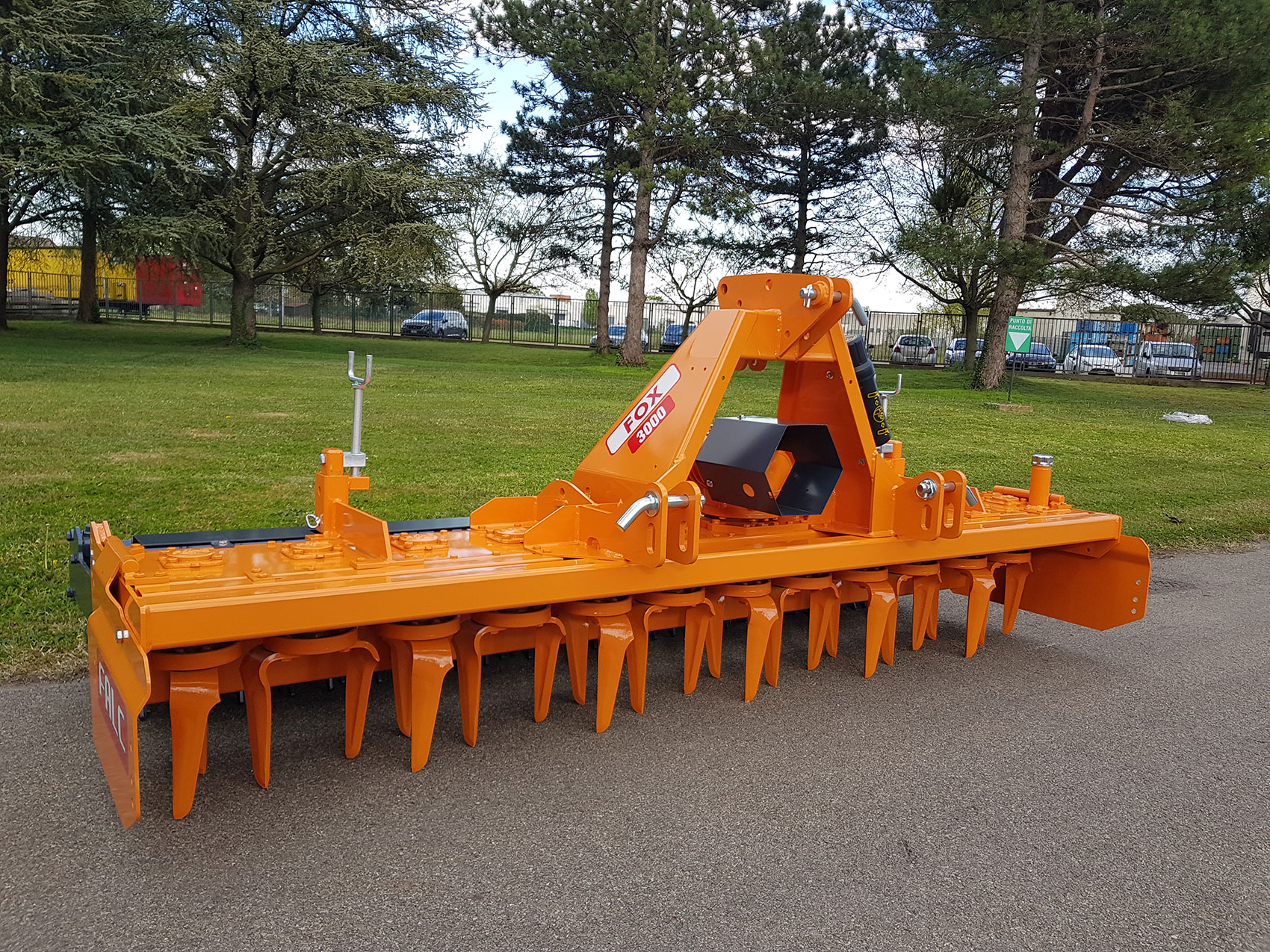

Photos
