EUROPROFI COMBILINE Combined rotor loader wagon
130 to 220 hp - 25 to 32 m³ volume
Inquiry
Description
Our EUROPROFI series has stood for easy operation, performance and convenience in harvesting for more than 20 years. Even higher performance, able to handle a variety of tasks and delivering a chopped length of 39 mm - our customers really like this wagon concept.
Advantages
EUROMATIC PLUS
1. EUROMATIC PLUS
The loading rotor with a diameter of 800 mm achieves a high throughput during chopping, conveying and compacting. The 10 mm thick conveyor tines are made of durostat 500 hardened and tempered boron steel and feed the crop perfectly into the chopping system.
2. Scraper beam
The large scraper area inside the loading chamber ensures excellent conservation for all types of forage. This makes the EUROPROFI highly suitable for mixed farming operations.
3. POWERCUT
Chopping system with a theoretical chopped length of 39 mm.
4. Knife protection system
The reliable knife protection system protects the loader wagon from foreign objects, avoids downtimes and promotes a consistent chop length for the highest possible forage quality.
Pick-up controlled from both ends for clean forage
The sealed twin-race roller bearings fitted to the cam rollers are designed to withstand high stresses. With the sweeping action of the tines on the pick-up, it conserves the sward, lowers the level of dirt ingress and prevents unnecessary wear to the tines.
The pick-up with perfect ground tracking for the lowest possible crude ash content makes the loader wagon particularly suitable for harvesting forage.
The interaction of the controlled pick-up with the floating pick-up suspension and the low pressure on the ground results in the cleanest possible collection of the crop. This ensures the contamination level is within the limit values of 80-100 g / kg of dry matter.
An optional wind guard with swath roller and guide plates ensure perfect forage flow with every type of crop, even at higher loading speeds.
The fully active tine leg length on the controlled pick-up transfers the flow of crop smoothly to the rotor, even in difficult harvest conditions.
Instead of dragging the forage through, the system promotes the best possible chopping quality.
Pick-up with perfect ground tracking for a low crude ash content
With a combination of the pick-up support arms , adjustable trailing jockey wheels and the parallelogram guided tracking roller, perfect ground tracking is ensured. In addition, weight alleviation springs are provided as standard to ensure a low ground pressure of around 100 kg.
The best chopping quality with a chopped length of 39 mm
The EUROPROFI is the ideal choice for the highest forage quality thanks to the chopping system with a theoretical chopped length of 39 mm.
The forage has the optimum structure for ruminants. An optimum distance between the knives and tines ensures smooth operation and protects the knives from foreign objects.
EASY MOVE swing-out knife bank
This unique swing-out knife bank makes light work of changing the knives.
Press a button on the side of the wagon to move the knife bank support arms downwards and release the chopping system. Now you can simply pull the knife bank out alongside the wagon. A central knife release system is standard equipment.
Simply press the release button to disengage the knives so they can easily be removed without the need for tools.
The chopping system can be pivoted out directly from the tractor seat to clear any blockages.
Easy accessibility
Using EASY MOVE, you can change the knives alongside the loader wagon.
Loading Chamber
Unload according to demand on the EUROPROFI D COMBILINE
A uniformly distributed blanket of forage is essential for perfect compaction. Two beater rotors guarantee perfect distribution. The aggressive tines deliver an impressive performance, even with highly compressed forage. Bars on the rotors also ensure maize material can be unloaded effectively. A pressure sensor in the beater rotor bearings controls the scraper floor automatically.
Beater rotor driveline
The driveline to the beater rotors is concealed within the frame. The strong drive shaft is protected by a cam-type clutch at 1,200 Nm.
Multifunction tailgate
The loader wagon is equipped with unloading beaters and a multifunction tailgate.
Technical parameters
| Параметър | 4510 L | 4510 D | 5010 L | 5010 D | 5510 L | 5510 D |
|---|---|---|---|---|---|---|
| Loading volume (DIN 11741) | 26 m³ | 25 m³ | 29 m³ | 28 m³ | 32 m³ | 31 m³ |
| Theoretical chopped length | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Number of knives max. | 35 pcs. | 35 pcs. | 35 pcs. | 35 pcs. | 35 pcs. | 35 pcs. |
| Pick-up recording width | 1,85 m | 1,85 m | 1,85 m | 1,85 m | 1,85 m | 1,85 m |
| Length | 8,44 m | 8,92 m | 9,12 m | 9,61 m | 9,81 m | 10,28 m |
| Width | 2,51 m | 2,51 m | 2,67 m | 2,67 m | 2,67 m | 2,67 m |
| Height | 3,55 m | 3,55 m | 3,55 m | 3,55 m | 3,55 m | 3,55 m |
| Height with ropes for roof | +325 mm | +325 mm | +325 mm | +325 mm | +325 mm | +325 mm |
| Number of scraper floor chains | 4 pcs. | 4 pcs. | 4 pcs. | 4 pcs. | 4 pcs. | 4 pcs. |
| Scraper floor motor (standard) | 1-speed | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed |
| Scraper floor motor (option) | 2-speed | 2-speed | 2-speed | 2-speed | — | — |
| Length loading area (Width 2,1) | 5,68 m | 5,42 m | 6,36 m | 6,1 m | 7,04 m | 6,79 m |
| Loading volume with medium compression | 45 m³ | 45 m³ | 50 m³ | 50 m³ | 55 m³ | 55 m³ |
| Track width | 1,95 m | 1,95 m | 1,95 m | 1,95 m | 1,95 m | 1,95 m |
| Weight of basic version | 6650 kg | 7150 kg | 7150 kg | 7650 kg | 7350 kg | 7850 kg |
| Chassis | Tandem axle | Tandem axle | Tandem axle | Tandem axle | Tandem axle | Tandem axle |
| Permissible laden weight (standard) | 15000 kg | 15000 kg | 18000 kg | 18000 kg | 18000 kg | 18000 kg |
| Permissible laden weight max. | 18000 kg | 18000 kg | 21000 kg | 21000 kg | 21000 kg | 21000 kg |
| Tandem-axle, 25/40 kph | 15000 kg | 15000 kg | 18000 kg | 18000 kg | 18000 kg | 18000 kg |
| Tandem-axle, 30/40 kph* | 15000 kg | 15000 kg | 18000 kg | 18000 kg | 18000 kg | 18000 kg |
| Tandem-axle, 30/40 kph* max. | 18000 kg | 18000 kg | 21000 kg | 21000 kg | 21000 kg | 21000 kg |
Photos

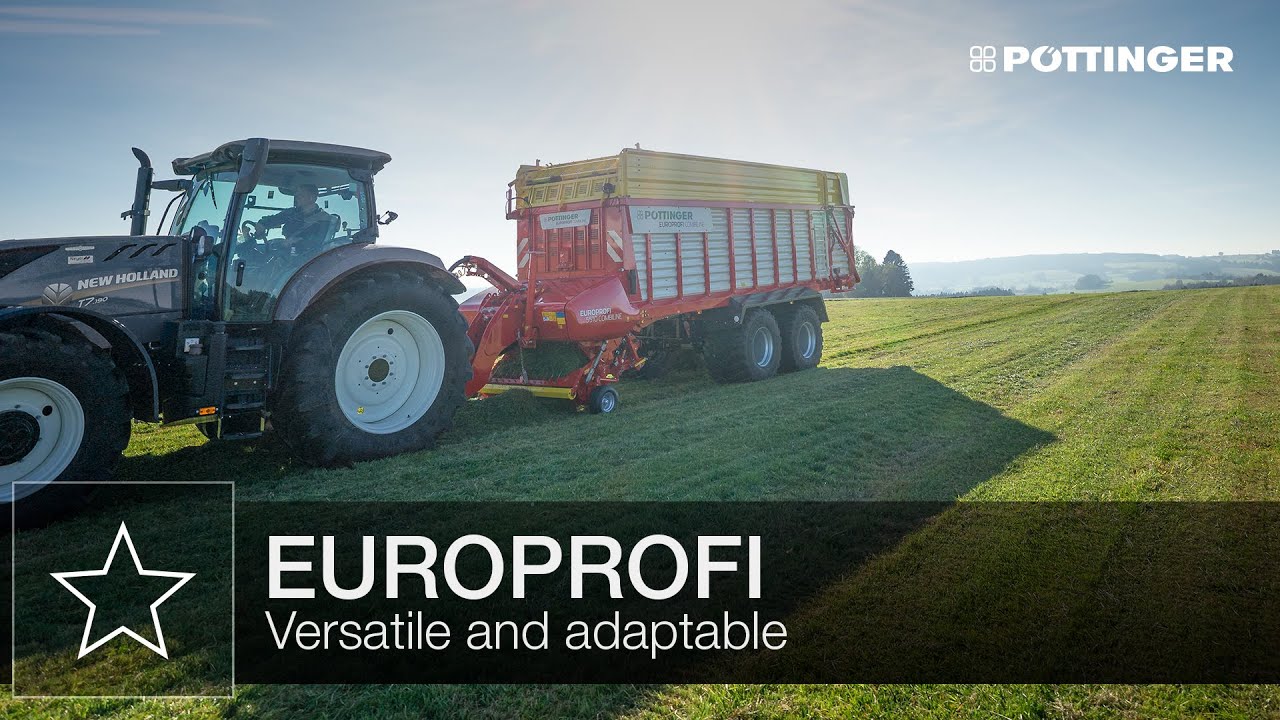

Video
