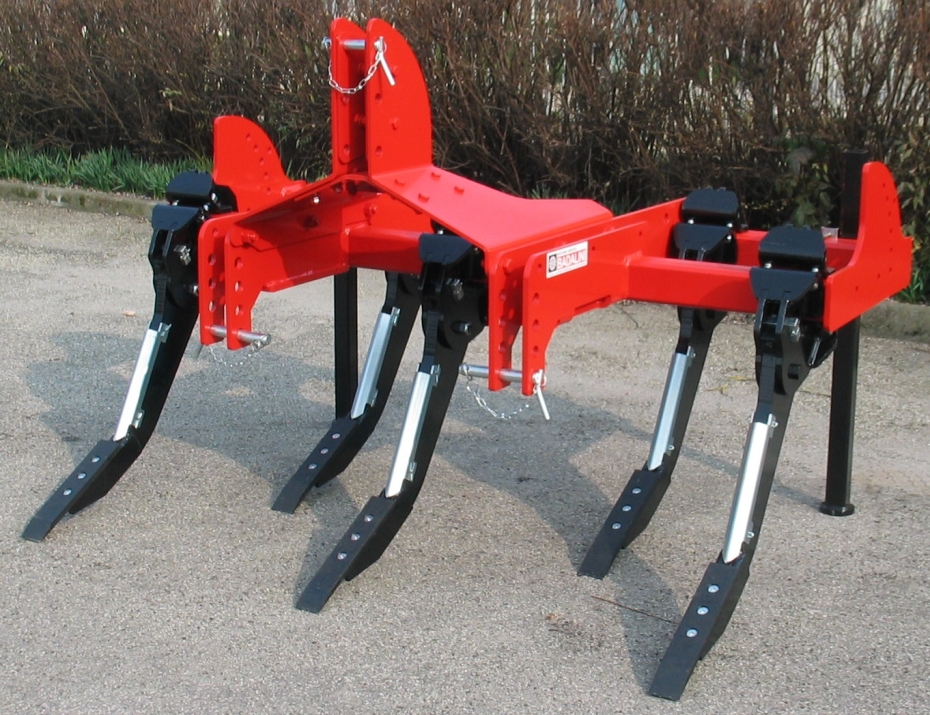

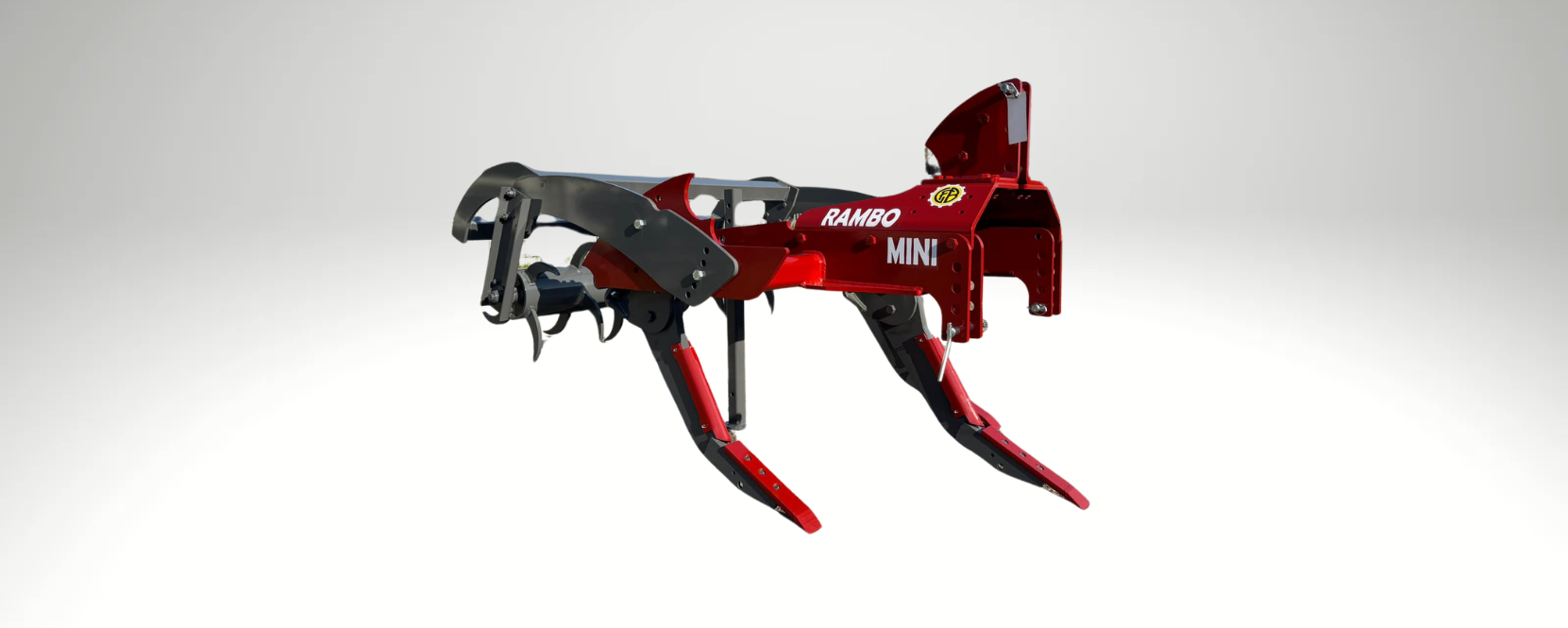

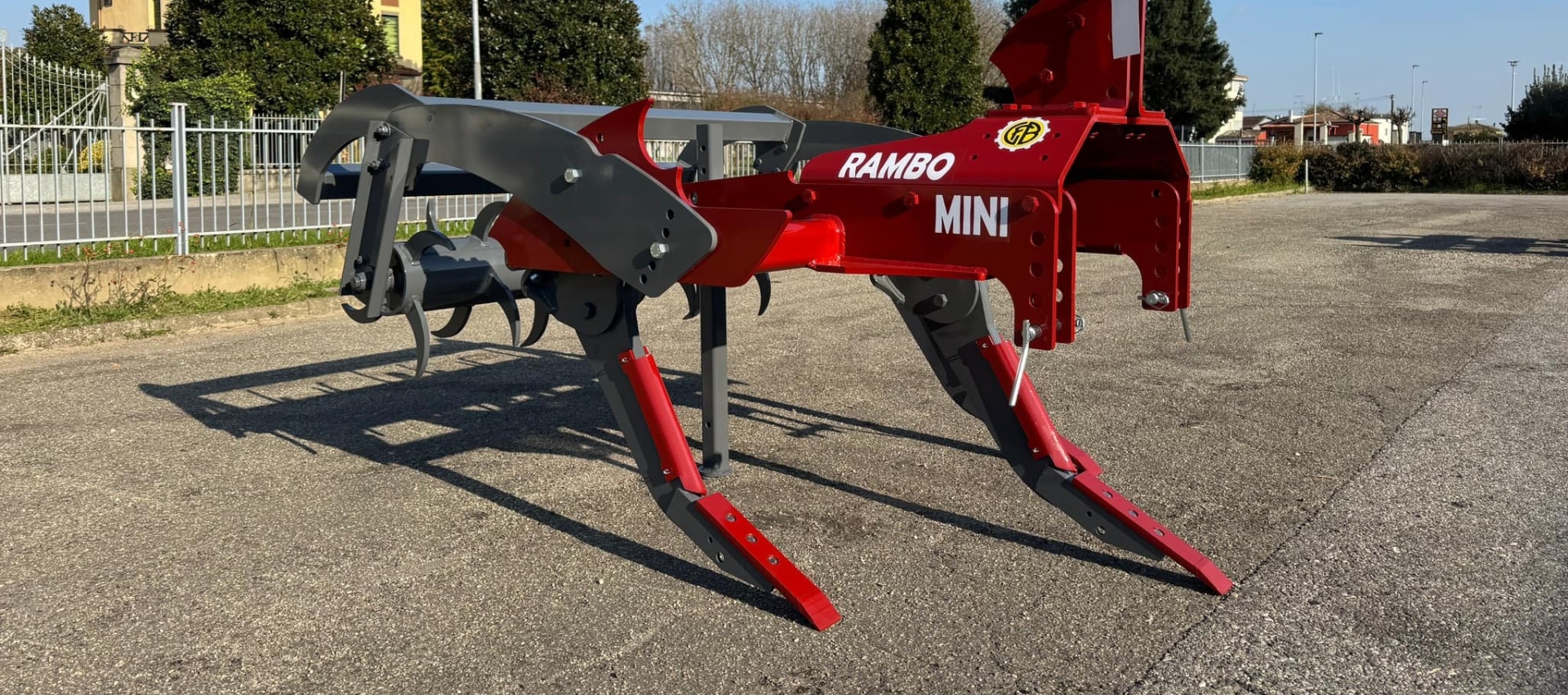

Subsoiler RAMBO MINI
Subsoiler with bolt of breaking 16 mm, frame 100x100x10 mm
Print
Description
Advantages
Technical parameters
Photos
Video
Description
The Rambo Mini subsoiler is designed to work with small tractors, from 40 to 125 HP. The strong and robust frame ensures effective work at considerable depths. The shape of the tines allows smooth soil flow in all types of soil. Thanks to its versatility, the Rambo Mini is also suitable for greenhouse work with small tracked tractors. Its use provides cost savings compared to traditional tillage, while effectively breaking the plough pan.
Advantages
Standard equipment
- EC safety guards;
- Suited for tractors from 45 to 110 HP, also tracked;
- Frame in tubular steel 100 x 100 x 10;

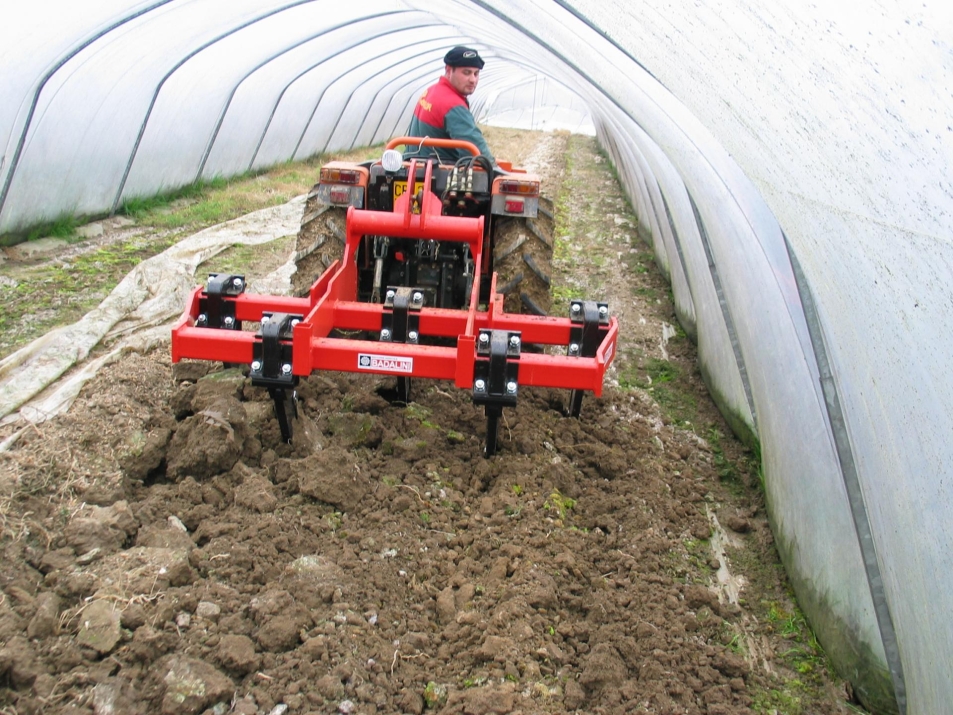

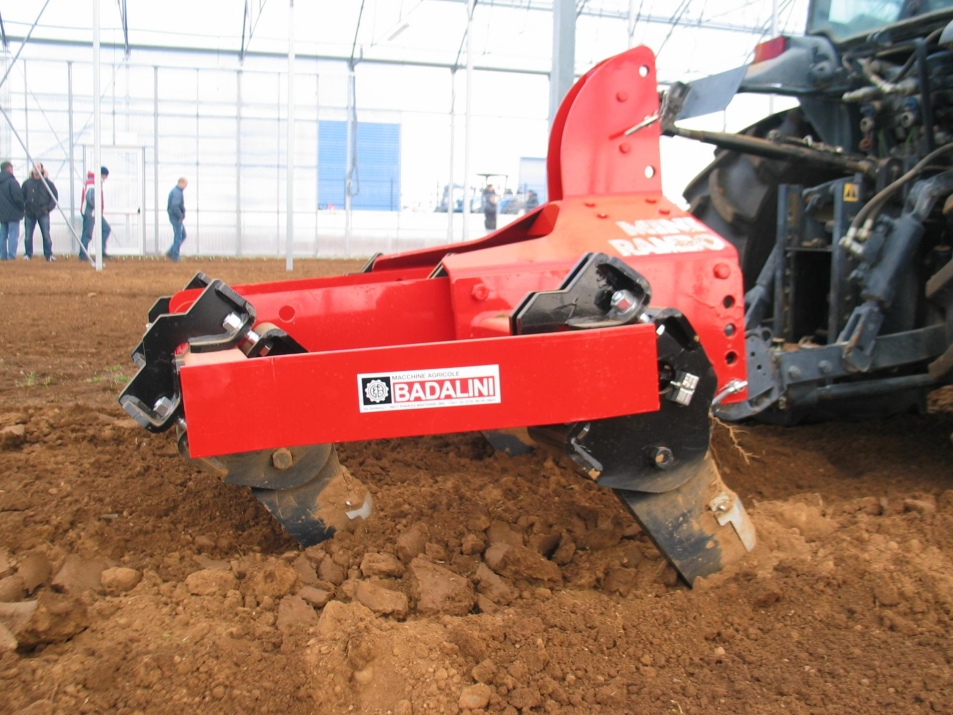

- Ideal also for job in greenhouses;
- Clearance under the frame mm 650;
- Working depth 200/450 mm;
- Tines with safety device through tearing bolt 16 mm 12.9;
- Interchangeable strengthened ploughshares;
- Adjustable tines in all positions;
- Supporting feet;
- Maximum sturdiness.

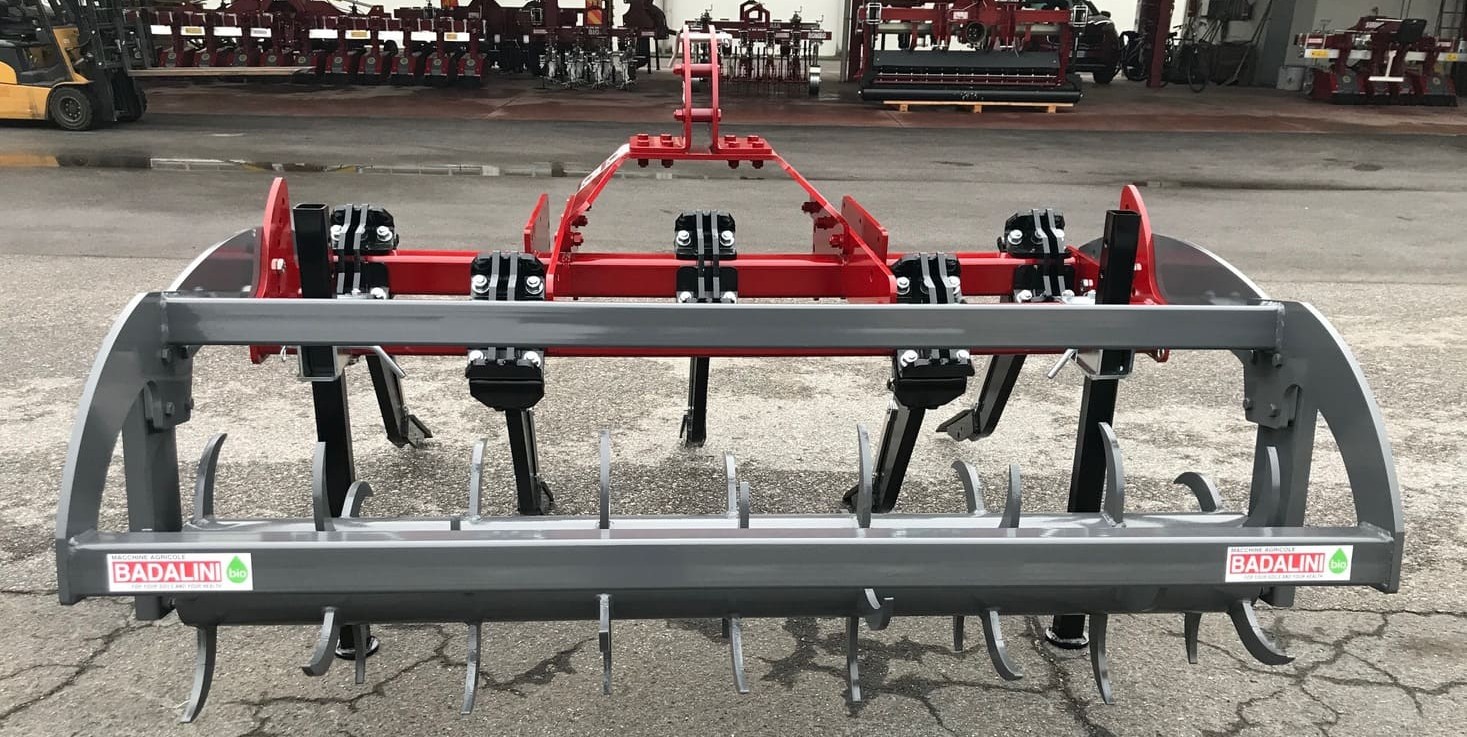

Options on request

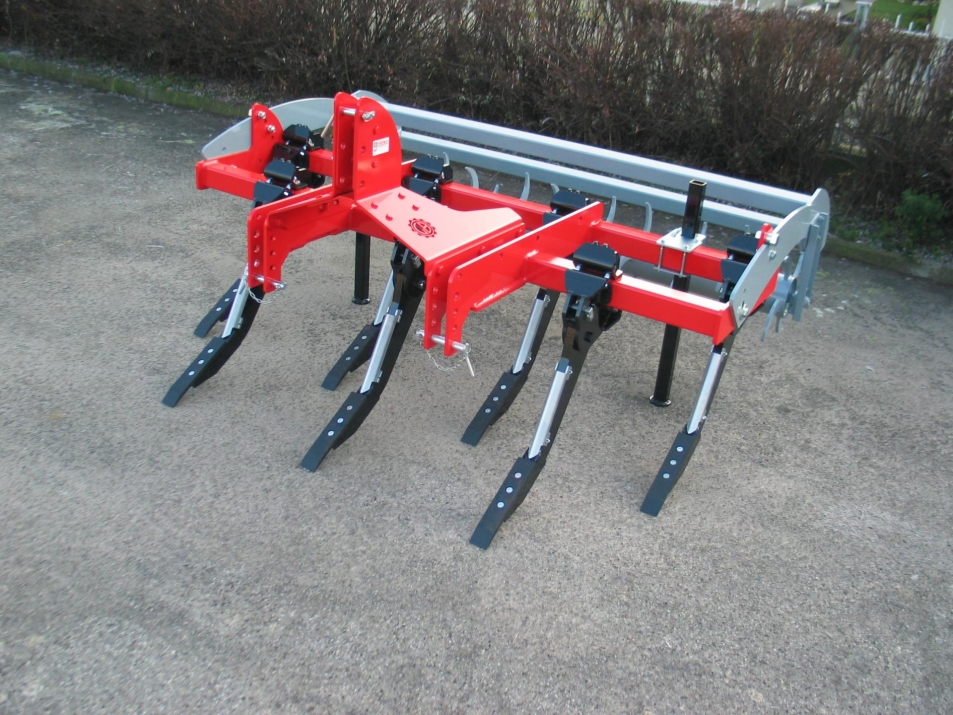

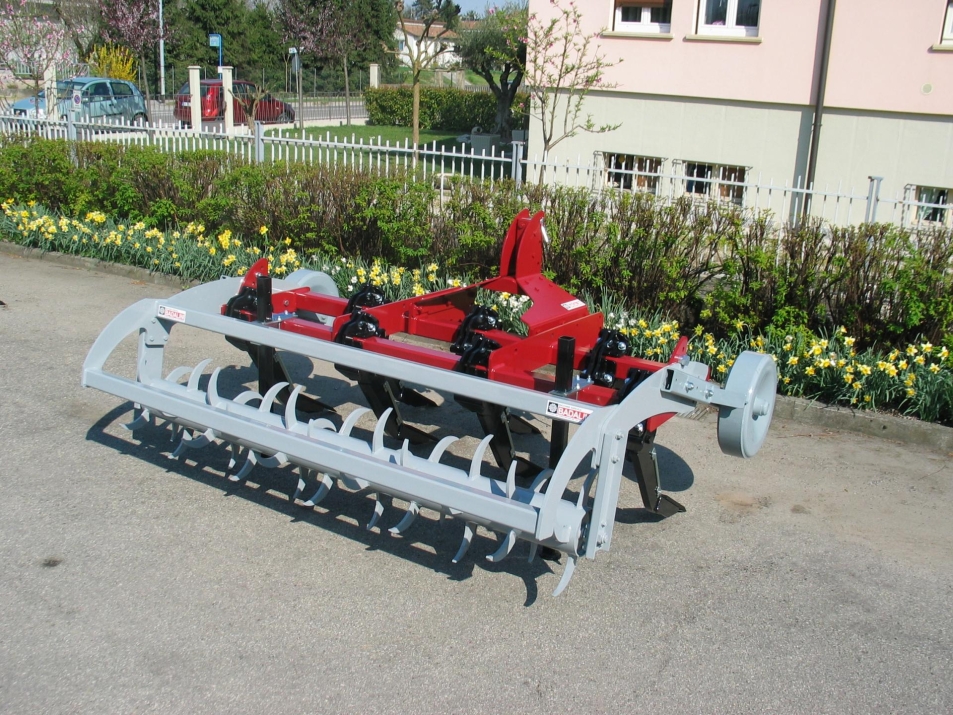

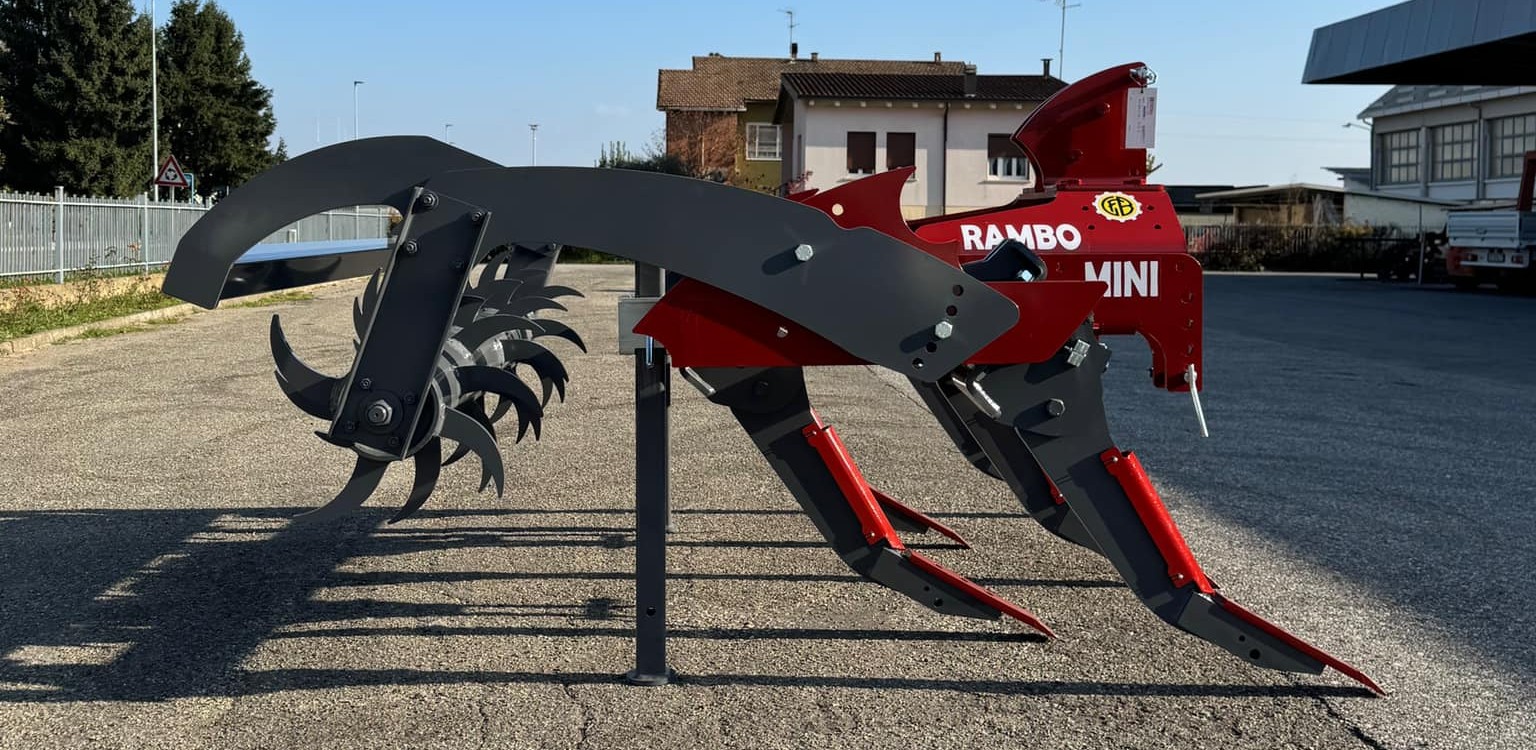

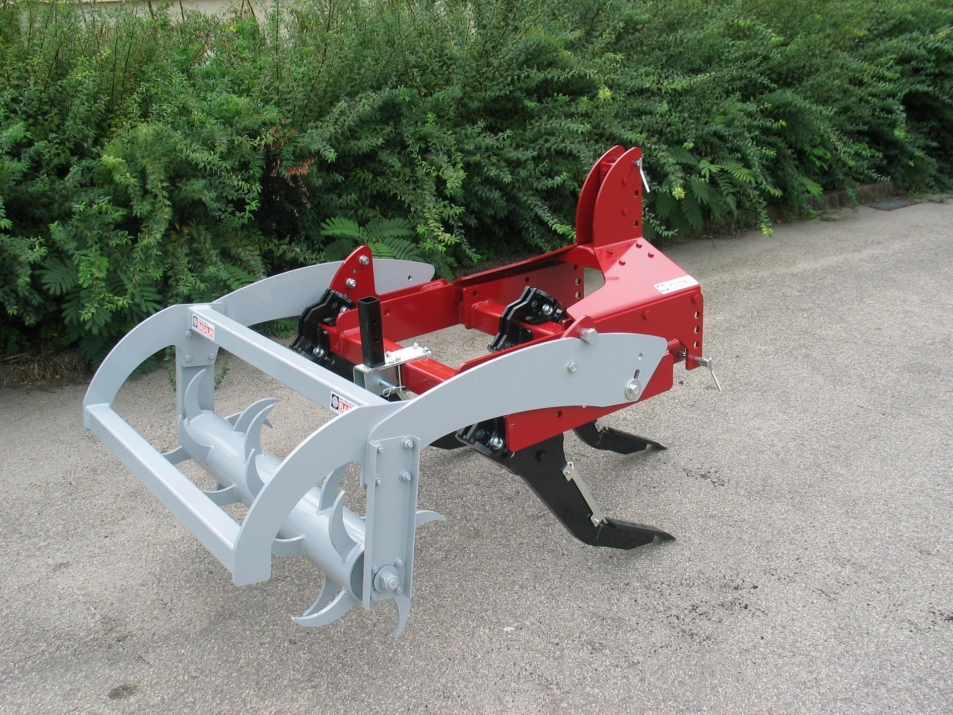

- Back spiked roller with mechanical regulation (for models with frame m 2,50);

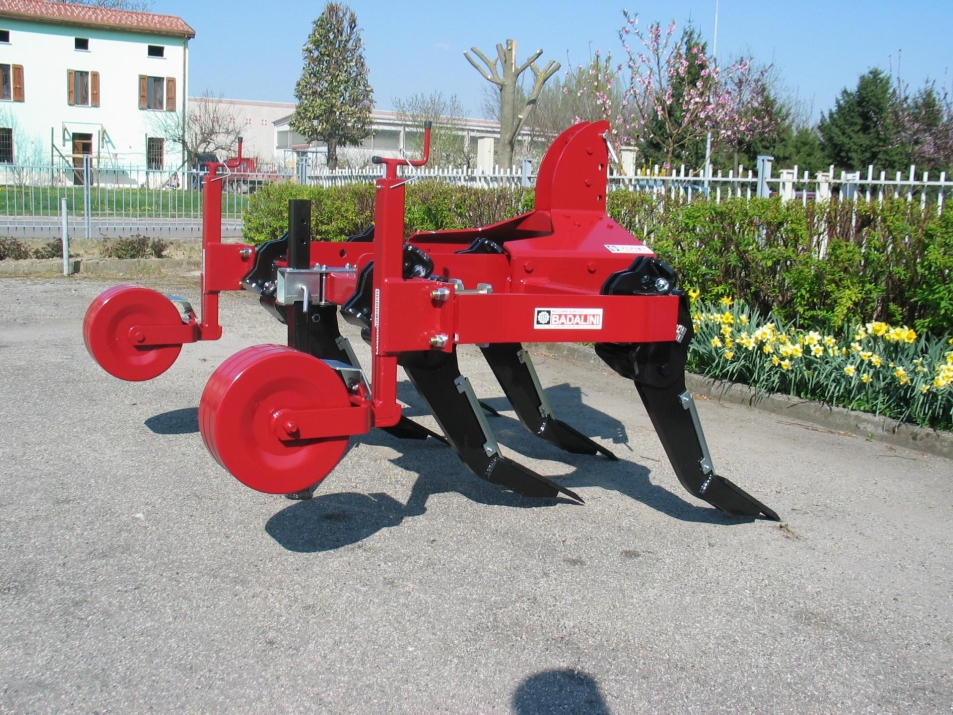

- Couple of wheels for depth regulation;
- Side sweeps of different types.
The main advantages of all Badalini subsoilers
- No lifting of stones and clods;
- Breaking of the plough pan;
- No open furrows;
- Increased volume of cultivated soil;
- Reduction of surface water stagnation;
- Development of water reserves in depth.
The use of Badalini subsoilers helps reduce environmental impact, improve soil characteristics, and provides the following advantages:
- Reduced power absorption from the tractor;
- Higher working speed;
- Greater working depth;
- Improved fuel efficiency;
- Savings on irrigation and drainage costs;
- Can be used in combination with other types of equipment;
- Reduction of soil compaction and good ground leveling thanks to rear discs or rollers;
- Reduction of surface water stagnation, especially during heavy rainfall;
- Helps the formation of deep water reserves and improves drainage regulation.
Technical parameters
RAMBO MINI – Technical specifications
| Model | Number of tines | Tractor power (HP) | Frame (m) | Working depth (m) | Working width (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| CLD/3 | 3 | 40 – 65 | 1.50 | 0.20 – 0.45 | 1.40 – 1.80 | 400 |
| CLD/5 | 5 | 45 – 70 | 1.80 | 0.20 – 0.45 | 1.80 | 500 |
| CLD/5 | 5 | 45 – 80 | 2.00 | 0.20 – 0.45 | 1.90 – 2.10 | 510 |
| CLD/5 | 5 | 45 – 80 | 2.20 | 0.20 – 0.45 | 2.30 | 520 |
| CLD/5 | 5 | 55 – 100 | 2.50 | 0.20 – 0.45 | 2.20 – 2.70 | 530 |
| CLD/7 | 7 | 65 – 110 | 2.50 | 0.20 – 0.45 | 2.70 | 630 |
General parameters
- Working depth: 0.20 – 0.45 m
- Working width: 1.40 – 2.70 m
- Tractor power: 40 – 110 HP
- Weight range: 400 – 630 kg
